8-Bit Analog-to-Digital Converter Features: 8-Bit Resolution No Missed Codes over Full Temperature Range Fast Conversion Time: 15 µs Interfaces to µP like RAM, ROM of Slow - Memory Low Power Dissipation: 30 mW Ratiometric Capability Single +5V Supply Low Cost Internal Comparator and Clock Oscillator

18-Bit, 1.25 MSPS PulSAR A/D Converter Features: Throughput: 1.25 MSPS INL: ±2 LSB typical, ±3 LSB max; ±8 ppm of full scale 18-bit resolution with no missing codes Dynamic range: 95.5 dB SINAD: 93.5 dB typical @ 20 kHz (VREF = 2.5 V) THD: −112 dB typical @ 20 kHz (VREF = 2.5 V) No pipeline delay (SAR architecture) Pb-free, 48-lead LQFP and 48-lead LFCSP Pin compatible with the AD7641 and other PulSAR ADCs 2.048 V internal reference: typical drift 10 ppm/°C; TEMP output Differential input range: ±VREF (VREF up to 2.5 V) Parallel (18-, 16-, or 8-bit bus) and serial 5 V/3.3 V/2.5 V interface SPI®/QSPI™/MICROWIRE™/DSP compatible Single 2.5 V supply operation Power dissipation 65 mW typical @ 1.25 MSPS with internal REF 2 W in power-down mode

12-bit Digital-to-Analog Converters, with Zener Reference Features: Single Chip Construction Very High Speed Settling to 1/2 LSB AD565A: 250 ns max Full-Scale Switching Time: 30 ns Guaranteed for Operation with ±12 V (AD565A) Supplies Low Cost Linearity Guaranteed Over temperature 1/2 LSB max (K, T Grades) Monotonicity Guaranteed Over temperature Low Power = 225mW max Use with On-Board High Stability Reference

1.6 V Micro-Power 8-Bit ADC Features: Specified for VDD of 1.6 V to 3.6 V Low power:  0.62 mW typical at 100 kSPS with 3 V supplies  0.48 mW typical at 50 kSPS with 3.6 V supplies  0.12 mW typical at 100 kSPS with 1.6 V supplies Wide input bandwidth:  71 dB SNR at 30 kHz input frequency Fast throughput rate: 200 kSPS Flexible power/serial clock speed management No pipeline delays High speed serial interface:  SPI/QSPI™/MICROWIRE™/DSP compatible See datasheet for additional features

Low Cost 10-Bit Monolithic D/A Converter Features: Complete Current Output Converted High Stability Buried Zener Reference Laser Trimmed to High Accuracy (1/4 LSB Max Error, AD561K, T) Trimmed Output Application Resistors for 0 V to +10 V, ±5 V Ranges Fast Settling - 250 ns to 1/2 LSB Guaranteed Monotonocity Over Full Operating Temperature Range TTL/DTL and CMOS Compatible (Positive True Logic) Single Chip Monolithic Construction Available in Chip Form MIL-STD-883-Compliant Versions Available

LC2CMOS, Quad 8-Bit Voltage Output DAC Features: Four 8-Bit DACs with Output Amplifiers Skinny 20-Lead DIP, SOIC, SSOP, and PLCC Packages Microprocessor-Compatible TTL/CMOS-Compatible No User Trims Extended Temperature Range Operation Single Supply Operation Possible

16-Bit, Serial, 100 kSPS Sampling ADC. Features: Autocalibrating On-Chip Sample-Hold Function Serial Output 16 Bits No Missing Codes ±1 LSB INL –99 dB THD 92 dB S/(N+D) 1 MHz Full Power Bandwidth

LTC1740 - 14 Bit 6M Samples per Second Analog to Digital Converter (ADC) Evaluation Board

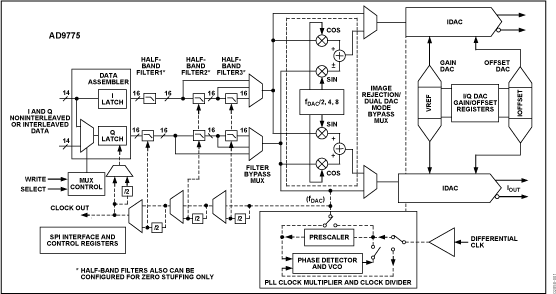

14-Bit, 160 MSPS, 2/4/8 Interpolating Dual TxDAC+ D/A Converter Features: 14-bit resolution, 160 MSPS/400 MSPS input/output data rate Selectable 2×/4×/8× interpolating filter Programmable channel gain and offset adjustment fS/4, fS/8 digital quadrature modulation capability Direct IF transmission mode for 70 MHz + IFs Fully compatible SPI® port Excellent ac performance SFDR: −71 dBc @ 2 MHz to 35 MHz W-CDMA ACPR: −71 dB @ IF = 19.2 MHz Internal PLL clock multiplier See data sheet for additional features

3 V to 5 V Single Supply, 200 kSPS, 8-Channel, 12-Bit, Serial Sampling ADC Features: Specified for VDD of 3 V to 5.5 V System and Self-Cal with Autocal on Power-Up Eight Single-Ended or Four Pseudo-Differential Inputs Low Power: 12 mW/AD7858, 4.5 mW/AD7858L Automatic Power-Down After Conversion (25 µW)
