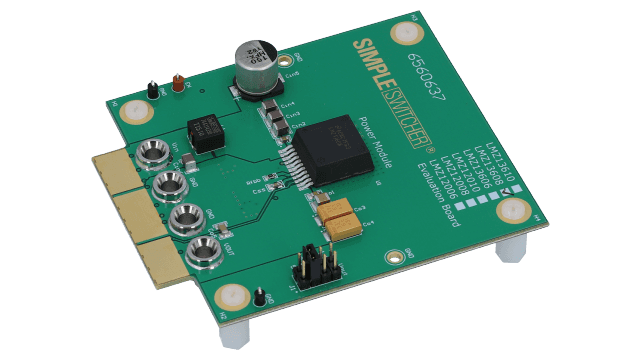

36 Volt Simple Switcher® Module 8A Evaluation Board

3.0 GHz/0.8 GHz PLLatinum Dual High Frequency Synthesizer for RF Personal Communications

THS4120 Evaluation Module

DRV8303 evaluation module for three-phase brushless DC pre-driver with dual current shunt am

Sensor AFE Eval Platform for NDIR Applications

TPS54614 6V Input, 1.8V Output, 6A Evaluation Module

F28044 controlCARD

The AD7170 is a very low power 12-bit analog-to-digital converter (ADC). It contains a precision 12-bit sigma-delta (?-?) ADC and an on-chip oscillator. Consuming only 135 ?A, the AD7170 is particularly suitable for portable or battery operated products where very low power is a requirement. The AD7170 also has a power-down mode in which the device consumes 5 ?A, thus increasing the battery life of the product.For ease-of-use, all the features of the AD7170 are controlled by dedicated pins. Each time a data read occurs, eight status bits are appended to the 12-bit conversion. These status bits contain a pattern sequence that can be used to confirm the validity of the serial transfer.The output data rate of the AD7170 is 125 Hz, whereas the settling time is 24 ms. The AD7170 has one differential input and a gain of 1. This is useful in applications where the user needs to use an external amplifier to implement system-specific filtering or gain requirements.The AD7170 operates with a power supply from 2.7 V to 5.25 V. It is available in a 10-lead LFCSP package.The AD7171 is a 16-bit version of the AD7170. It has the same feature set as the AD7170 and is pin-for-pin compatible.INTERFACE 2-wire serial (read-only device) SPI compatible Schmitt trigger on SCLKAPPLICATIONS Pressure measurement Industrial process control Portable instrumentation

The AD7298 is a 12-bit, high speed, low power, 8-channel, successive approximation ADC with an internal temperature sensor. The part operates from a single 3.3 V power supply and features throughput rates up to 1 MSPS. The device contains a low noise, wide bandwidth track-and-hold amplifier that can handle input frequencies in excess of 30 MHz.The AD7298 offers a programmable sequencer, which enables the selection of a pre-programmable sequence of channels for conversion. The device has an on-chip 2.5 V reference that can be disabled to allow the use of an external reference.The AD7298 includes a high accuracy band gap temperature sensor, which is monitored and digitized by the 12-bit ADC to give a resolution of 0.25?C. The device offers a 4-wire serial interface compatible with SPI and DSP interface standards.The AD7298 uses advanced design techniques to achieve very low power dissipation at high throughput rates. The part also offers flexible power/throughput rate management options. The part is offered in a 20-lead LFCSP package.PRODUCT HIGHLIGHTS Ideally suited to monitoring system variables in a variety of systems including telecommunications, process and industrial control. High Throughput rate of 1Msps per channel with Low Power Consumption. Eight Single-Ended Inputs with a Channel Sequencer. A consecutive sequence of channels can be selected on which the ADC cycles and converts. Integrated temperature sensor with 0.25?C resolution.

The AD7328 is an 8-channel, 12-bit plus sign, successive approximation ADC designed on the?iCMOS? (industrial CMOS) process.?iCMOS is a process combining high voltage silicon with submicron CMOS and complementary bipolar technologies. It enables the development of a wide range of high performance analog ICs capable of 33 V operation in a footprint that no previous generation of high voltage parts could achieve. Unlike analog ICs using conventional CMOS processes, iCMOS components can accept bipolar input signals while providing increased performance, dramatically reduced power consumption, and reduced package size.The AD7328 can accept true bipolar analog input signals. The AD7328 has four software-selectable input ranges, ?10 V, ?5 V, ?2.5 V, and 0 V to +10 V. Each analog input channel can be independently programmed to one of the four input ranges. The analog input channels on the AD7328 can be programmed to be single-ended, true differential, or pseudo differential.The ADC contains a 2.5 V internal reference. The AD7328 also allows for external reference operation. If a 3 V reference is applied to the REFIN/OUT pin, the AD7328 can accept a true bipolar ?12 V analog input. Minimum ?12 V VDD and VSS supplies are required for the ?12 V input range. The ADC has a high speed serial interface that can operate at throughput rates up to 1 MSPS.PRODUCT HIGHLIGHTS The AD7328 can accept true bipolar analog input signals, ?10 V, ?5 V, ?2.5 V, and 0 V to +10 V unipolar signals The eight analog inputs can be configured as eight single-ended inputs, four true differential input pairs, four pseudo differential inputs, or seven pseudo differential inputs 1 MSPS serial interface. SPI?-/QSPI?-/DSP-/MICROWIRE?-compatible interface Low power, 30 mW, at a maximum throughput rate of 1 MSPS Channel sequencer
