Analog Devices Inc.

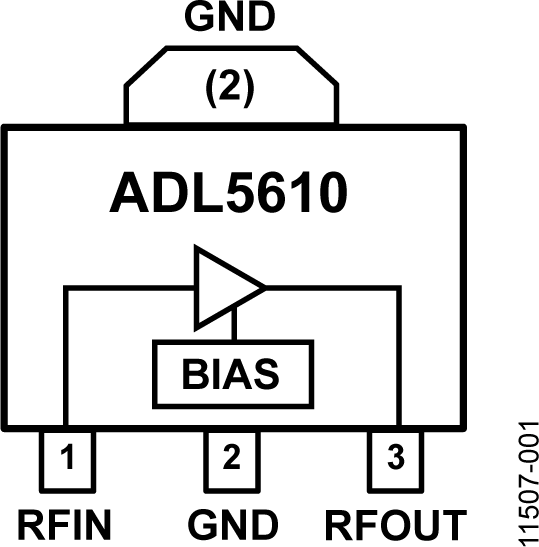

The ADL5610 is a single-ended RF/IF gain block amplifier that provides broadband operation from 30 MHz to 6 GHz. The ADL5610 provides a low noise figure of 2.2 dB with a very high OIP3 of more than 38 dBm simultaneously, which delivers a high dynamic range.?The ADL5610 provides a gain of 18 dB, which is stable over frequency, temperature, and power supply, and from device to device. The amplifier is offered in the industry-standard SOT-89 package and is internally matched to 50 ? at the input and output, making the ADL5610 easy to implement in a wide variety of applications. The only external parts required are the input and output ac coupling capacitors, power supply decoupling capacitors, and bias inductor.The ADL5610 has a high ESD rating of ?1.5 kV (Class 1C) and is fully specified for operation across a wide temperature range of ?40?C to +105?C.?A fully populated RoHS-compliant evaluation board is available.

$0.00 - * $186.50
