DC1723A
Analog Devices Inc.

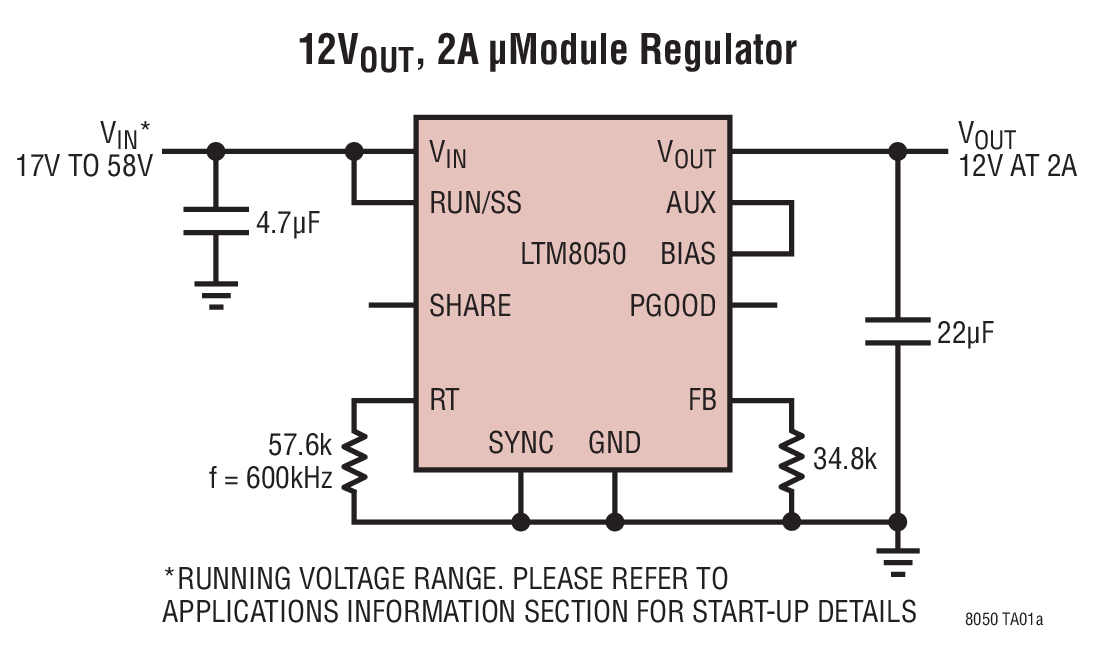

The LTM8050 is a 58VIN, 2A step down ?Module? (power module) converter. Included in the package are the switching controller, power switches, inductor and all support components. Operating over an input voltage range of 3.6V to 58V, the LTM8050 supports an output voltage range of 0.8V to 24V and a switching frequency range of 100kHz to 2.4MHz, each set by a single resistor. Only the bulk input and output filter capacitors are needed to finish the design.The LTM8050 is packaged in a 9mm ? 15mm ? 4.92mm ball grid array (BGA) package suitable for automated assembly by standard surface mount equipment. The LTM8050 is available with SnPb (BGA) or RoHS compliant terminal finish.Applications Automotive Battery Regulation Power for Portable Products Distributed Supply Regulation Industrial Supplies Wall Transformer Regulation
$76.50 - $85.12
Distributors
| Distributor | SKU | Stock | MOQ | 1 | 10 | 50 | 100 | 1000 | 10000 | Purchase | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 |
DigiKey | DC1723A-ND | 2 | $77.57 | $77.57 | $77.57 | $77.57 | $77.57 | $77.57 | Buy | |
|
|
Analog Devices Inc | DC1723A | $76.50 | $76.50 | $76.50 | $76.50 | $76.50 | $76.50 | Buy | ||
|
 |
Arrow North American Components | DC1723A | 2 | 1 | $70.94 | $70.94 | $70.94 | $70.94 | $70.94 | $70.94 | Buy |
|
|
Mouser Electronics | 584-DC1723A | 5 | 1 | $79.56 | $79.56 | $79.56 | $79.56 | $79.56 | $79.56 | Buy |
|
|
Newark | DC1723A | 1 | $85.12 | $85.12 | $85.12 | $85.12 | $85.12 | $85.12 | Buy | |
|
|
Verical Marketplace | DC1723A | 46 | 1 | $65.00 | $71.23 | $69.33 | $69.33 | $69.33 | $69.33 | Buy |
