LTC5599 | 30MHz to 1300MHz Low Power Direct I/Q Modulator - DC590B Serial Board Required
Analog Devices Inc.

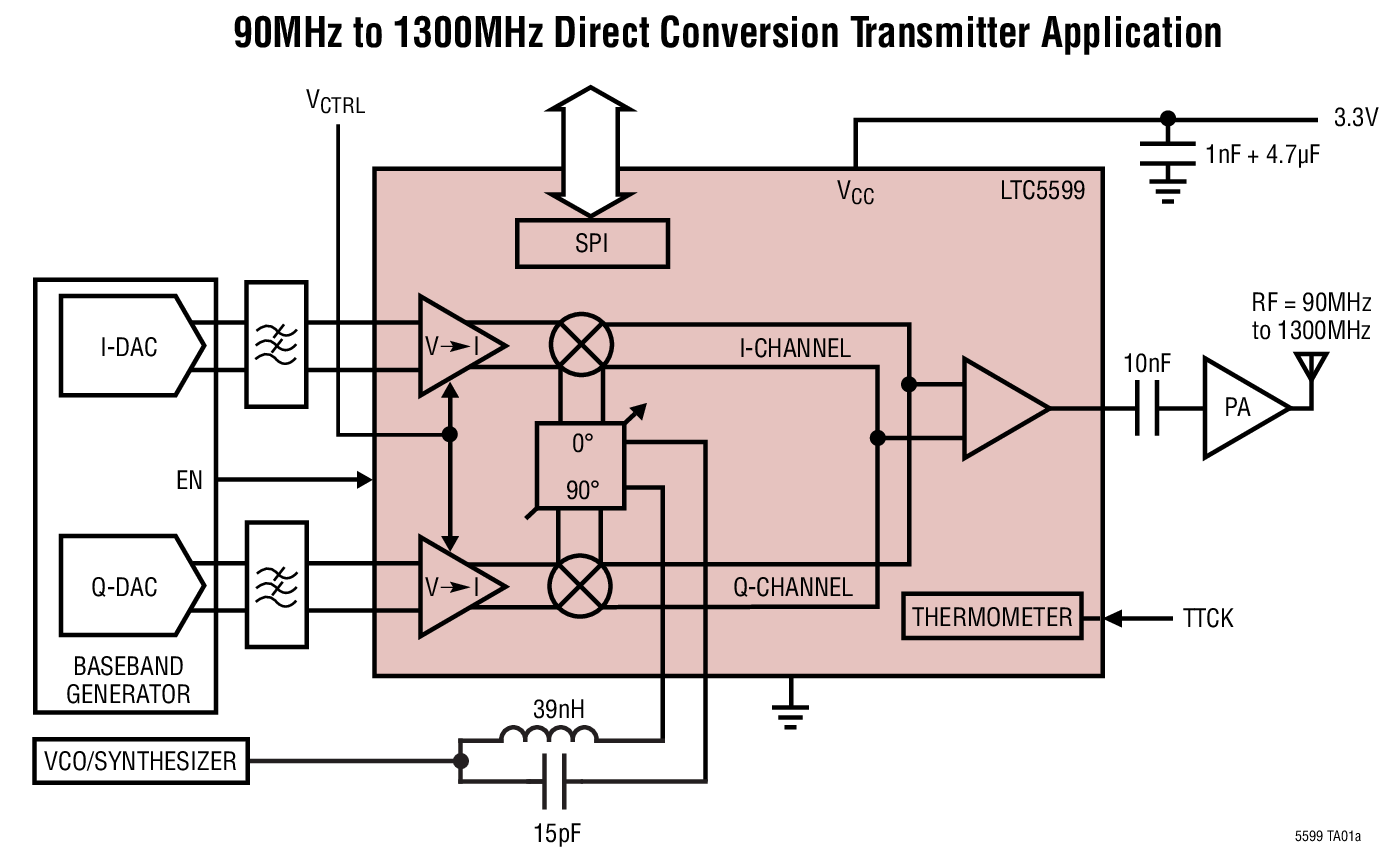

Demonstration circuit 2091A is optimized for evaluation of the LTC5599 low power direct quadrature modulator. The balanced I and Q baseband input ports can be either AC- or DC-coupled to a source with a common mode voltage level of about 1.4V. Fixed LC networks on the LO and RF ports cover a continuous 90MHz to 1300MHz range. The SPI interface controls the supply current, modulator gain, and allows optimization of the LO carrier feedthrough and side-band suppression.
* $161.35 - * $167.93
Distributors
Currency:
| Distributor | SKU | Stock | MOQ | 1 | 10 | 50 | 100 | 1000 | 10000 | Purchase | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 |
DigiKey | DC2091A-ND | 4 | 1 | $179.66 | $179.66 | $179.66 | $179.66 | $179.66 | $179.66 | Buy |
|
|
Analog Devices Inc | DC2091A | $153.81 | $153.81 | $153.81 | $153.81 | $153.81 | $153.81 | Buy | ||
|
 |
element14 APAC | DC2091A | 4 | 1 | * $197.94 | * $197.94 | * $197.94 | * $197.94 | * $197.94 | * $197.94 | Buy |
|
 |
Farnell | DC2091A | 2 | 1 | * $161.35 | * $161.35 | * $161.35 | * $161.35 | * $161.35 | * $161.35 | Buy |
|
|
Mouser Electronics | 584-DC2091A | 2 | 1 | $159.98 | $159.98 | $159.98 | $159.98 | $159.98 | $159.98 | Buy |
|
 |
Newark | DC2091A | 2 | 1 | $180.33 | $180.33 | $180.33 | $180.33 | $180.33 | $180.33 | Buy |
