LTC2348-16 Demo Board | Octal, 16-Bit, 200ksps Simultaneous Sampling SAR ADC (req DC590, DC2026 or DC890)
Analog Devices Inc.

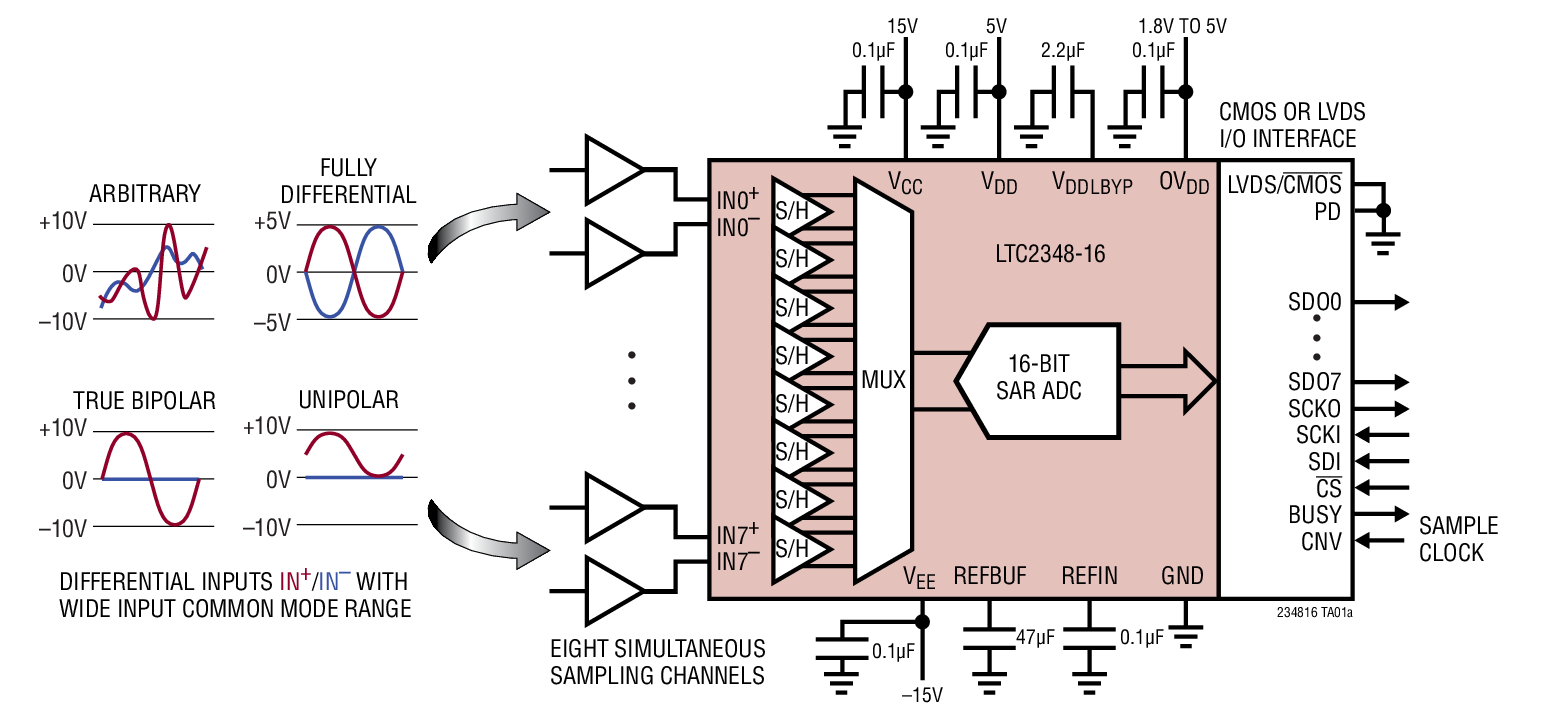

Demonstration circuit 2094A shows the proper way to drive the LTC®2348 family of ADCs. The LTC2348/LTC2347/LTC2343 are low noise, high speed, simultaneous sampling 16-/18-bit successive approximation register (SAR) ADCs. The demo manual refers to the LTC2348-18 but applies to all parts in the family, the only differences being the number of bits, number of channels and the maximum sample rate. The LTC2348-18 has a flexible SoftSpan™ interface that allows conversion-by-conversion control of the input voltage span on a per-channel basis. An internal 2.048V reference and 2X buffer simplify basic operation while an external reference can be used to increase the input range and the SNR of the ADC.
$176.55 - $182.71
Distributors
Currency:
| Distributor | SKU | Stock | MOQ | 1 | 10 | 50 | 100 | 1000 | 10000 | Purchase | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 |
DigiKey | DC2094A-D-ND | 1 | 1 | $165.00 | $165.00 | $165.00 | $165.00 | $165.00 | $165.00 | Buy |
|
|
Analog Devices Inc | DC2094A-D | $176.55 | $176.55 | $176.55 | $176.55 | $176.55 | $176.55 | Buy | ||
|
 |
Arrow North American Components | DC2094A-D | 2 | 1 | $150.00 | $150.00 | $150.00 | $150.00 | $150.00 | $150.00 | Buy |
|
|
Mouser Electronics | 584-DC2094A-D | 0 | 1 | $182.71 | $182.71 | $182.71 | $182.71 | $182.71 | $182.71 | Buy |
|
|
Verical Marketplace | DC2094A-D | 2 | 1 | $150.00 | $150.00 | $150.00 | $150.00 | $150.00 | $150.00 | Buy |
