Analog Devices Inc.

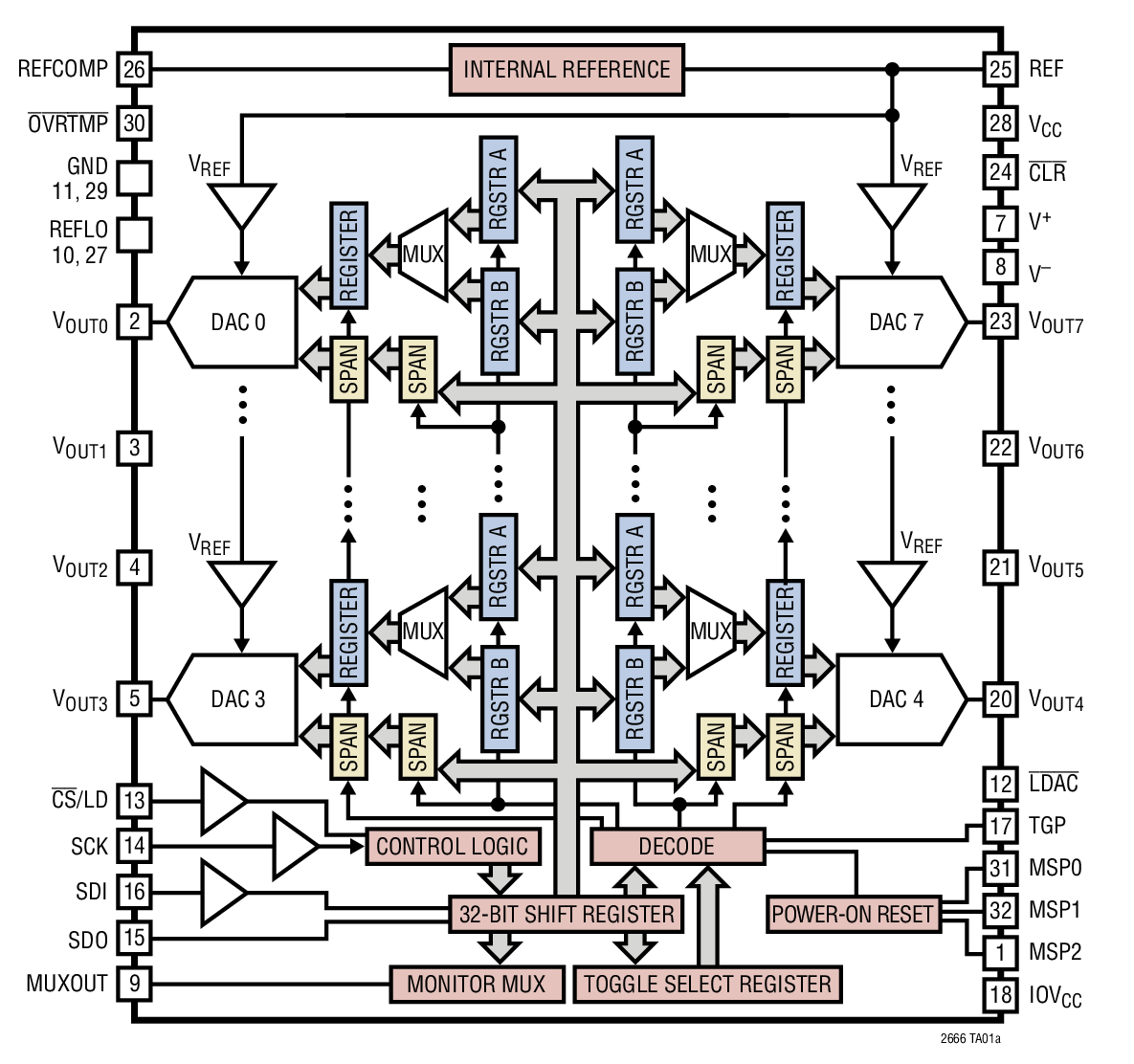

The LTC2666 is a family of 8-channel, 16-/12-bit ?10V digital-to-analog converters with integrated precision references. They are guaranteed monotonic and have built-in rail-to-rail output buffers. These SoftSpan? DACs offer five output ranges up to ?10V. The range of each channel is independently programmable, or the part can be hardware-configured for operation in a fixed range.The integrated 2.5V reference is buffered separately to each channel; an external reference can be used for additional range options. The LTC2666 also includes A/B toggle capability via a dedicated pin or software toggle command.The SPI/Microwire-compatible 3-wire serial interface operates on logic levels as low as 1.71V at clock rates up to 50MHz.Applications Optical Networking Instrumentation Data Acquisition Automatic Test Equipment Process Control and Industrial Automation

$88.28 - $91.36
