DC2221A
Analog Devices Inc.

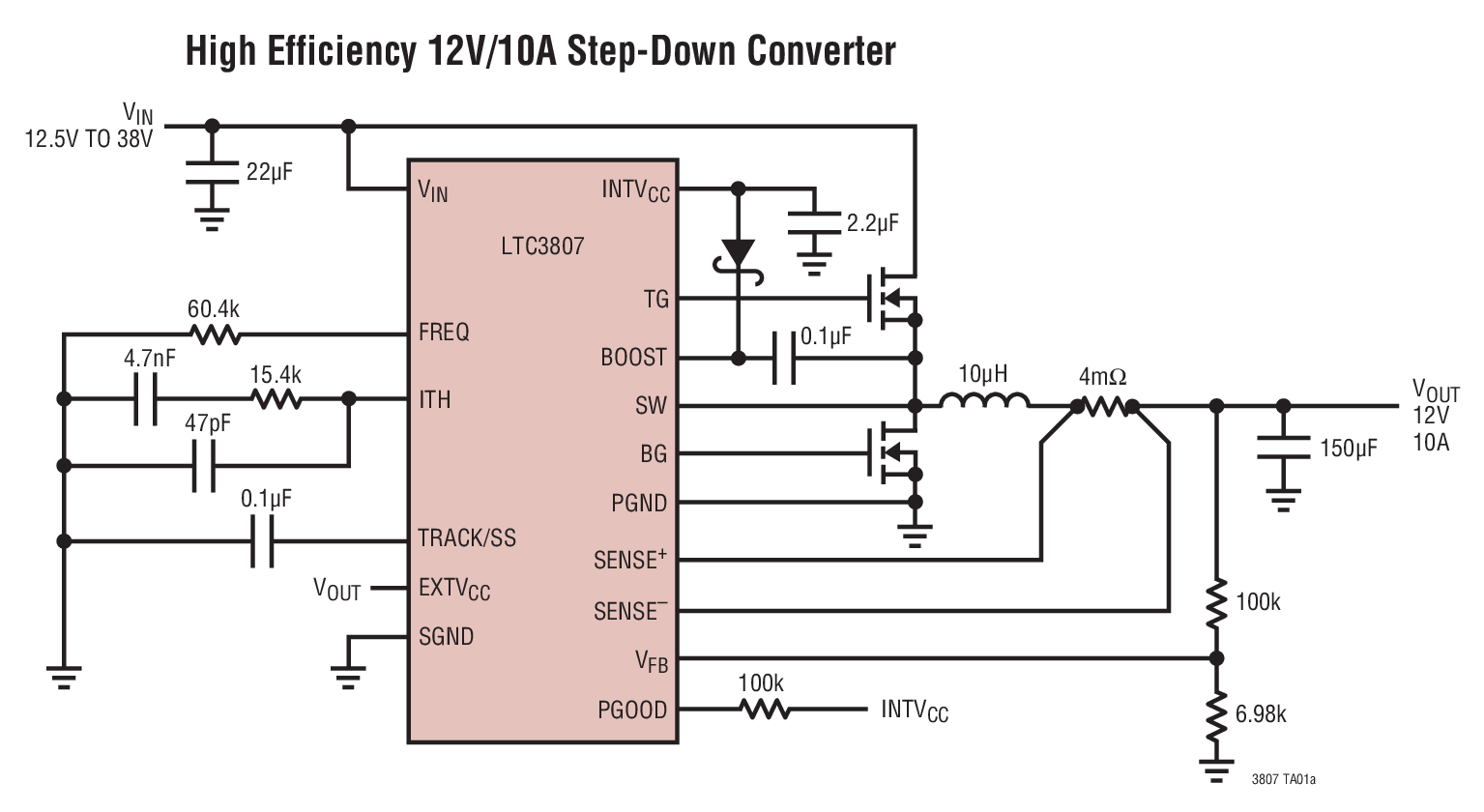

The LTC3807 is a high performance step-down switching regulator DC/DC controller that drives an all N-channel synchronous power MOSFET stage. A constant frequency current mode architecture allows a phase-lockable frequency of up to 750kHz.The 50?A no-load quiescent current extends operating run time in battery-powered systems. OPTI-LOOP? compensation allows the transient response to be optimized over a wide range of output capacitance and ESR values. The LTC3807 features a precision 0.8V reference and power good output indicator. A wide 4V to 38V input supply range encompasses a wide range of intermediate bus voltages and battery chemistries. The output voltage of the LTC3807 can be programmed between 0.8V to 24V.The TRACK/SS pin ramps the output voltages during start-up. Current foldback limits MOSFET heat dissipation during short-circuit conditions. The PLLIN/MODE pin selects among Burst Mode operation, pulse-skipping mode, or continuous conduction mode at light loads.Applications Automotive Always-On Systems Battery Powered Digital Devices Distributed DC Power Systems
* $171.24 - * $167.65
Distributors
| Distributor | SKU | Stock | MOQ | 1 | 10 | 50 | 100 | 1000 | 10000 | Purchase | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 |
DigiKey | 505-DC2221A-ND | 1 | $158.01 | $158.01 | $158.01 | $158.01 | $158.01 | $158.01 | Buy | |
|
|
Analog Devices Inc | DC2221A | $158.90 | $158.90 | $158.90 | $158.90 | $158.90 | $158.90 | Buy | ||
|
 |
element14 APAC | DC2221A | 1 | * $175.89 | * $175.89 | * $175.89 | * $175.89 | * $175.89 | * $175.89 | Buy | |
|
 |
Farnell | DC2221A | 1 | * $171.24 | * $171.24 | * $171.24 | * $171.24 | * $171.24 | * $171.24 | Buy | |
|
|
Mouser Electronics | 584-DC2221A | 5 | 1 | $165.26 | $165.26 | $165.26 | $165.26 | $165.26 | $165.26 | Buy |
|
 |
Newark | DC2221A | 1 | $163.87 | $163.87 | $163.87 | $163.87 | $163.87 | $163.87 | Buy |
