DC2289A-A
Analog Devices Inc.

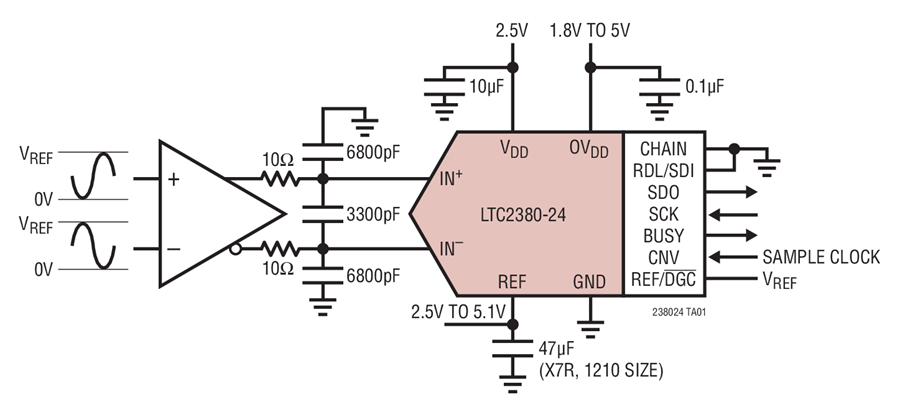

The LTC2380-24 is a low noise, low power, high speed 24-bit successive approximation register (SAR) ADC with an integrated digital averaging filter. Operating from a 2.5V supply, the LTC2380-24 has a ?VREF fully differential input range with VREF ranging from 2.5V to 5.1V. The LTC2380- 24 consumes only 28mW and achieves ?3.5ppm INL maximum and no missing codes at 24 bits.The LTC2380-24 has an easy to use integrated digital averaging filter that can average 1 to 65536 conversion results real-time, dramatically improving dynamic range from 101dB at 1.5Msps to 145dB at 30.5sps. No separate programming interface or configuration register is required.The high speed SPI-compatible serial interface supports 1.8V, 2.5V, 3.3V and 5V logic while also featuring a daisychain mode. The LTC2380-24 automatically powers down between conversions, reducing power dissipation at lower sampling rates.Applications Seismology Energy Exploration Medical Imaging High Speed Data Acquisition Industrial Process Control ATE
* $229.69 - * $247.79
Distributors
| Distributor | SKU | Stock | MOQ | 1 | 10 | 50 | 100 | 1000 | 10000 | Purchase | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 |
DigiKey | DC2289A-A-ND | 1 | 1 | $231.65 | $231.65 | $231.65 | $231.65 | $231.65 | $231.65 | Buy |
|
|
Analog Devices Inc | DC2289A-A | $235.40 | $235.40 | $235.40 | $235.40 | $235.40 | $235.40 | Buy | ||
|
 |
element14 APAC | DC2289A-A | 1 | 1 | * $247.79 | * $247.79 | * $247.79 | * $247.79 | * $247.79 | * $247.79 | Buy |
|
 |
Farnell | DC2289A-A | 1 | 1 | * $229.69 | * $229.69 | * $229.69 | * $229.69 | * $229.69 | * $229.69 | Buy |
|
|
Mouser Electronics | 584-DC2289A-A | 4 | 1 | $243.62 | $243.62 | $243.62 | $243.62 | $243.62 | $243.62 | Buy |
|
 |
Newark | DC2289A-A | 1 | 1 | $231.64 | $231.64 | $231.64 | $231.64 | $231.64 | $231.64 | Buy |
