LTC4235-1 Demo Board | Dual 12V Ideal Diode-OR & Single Hot Swap Controller with Current Monitor, Latch-Off
Analog Devices Inc.

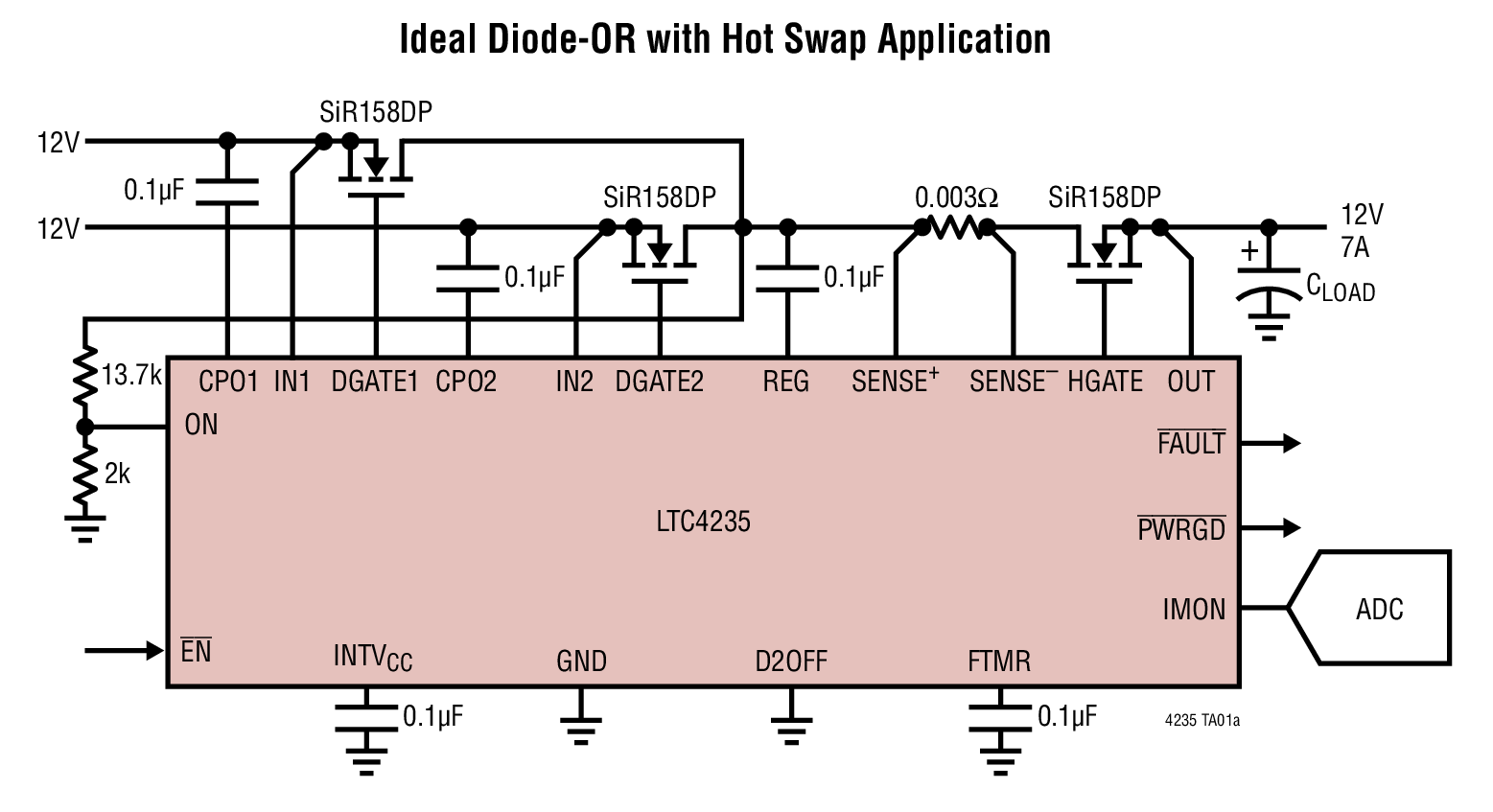

Demonstration circuit 2315A is intended to demonstrate the performance of the LTC4235-1/LTC4235-2 Dual 12V Ideal Diode-OR and Single Hot Swap™ Controller with Current Monitor. The controller operates in redundant 12V supply circuits, where each rail has an individual ideal diode, and the outputs are connected to the load through a single Hot Swap circuit. The controller enables monitoring of the load current by providing a signal that is 100× the sense resistor voltage.
$80.25 - $83.47
Distributors
Currency:
| Distributor | SKU | Stock | MOQ | 1 | 10 | 50 | 100 | 1000 | 10000 | Purchase | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 |
DigiKey | DC2315A-A-ND | 2 | 1 | $81.27 | $81.27 | $81.27 | $81.27 | $81.27 | $81.27 | Buy |
|
|
Analog Devices Inc | DC2315A-A | $80.25 | $80.25 | $80.25 | $80.25 | $80.25 | $80.25 | Buy | ||
|
 |
Arrow North American Components | DC2315A-A | 0 | 1 | $79.26 | $77.68 | $76.14 | $75.37 | $73.87 | $73.14 | Buy |
|
|
Mouser Electronics | 584-DC2315A-A | 0 | 1 | $83.47 | $83.47 | $83.47 | $83.47 | $83.47 | $83.47 | Buy |
