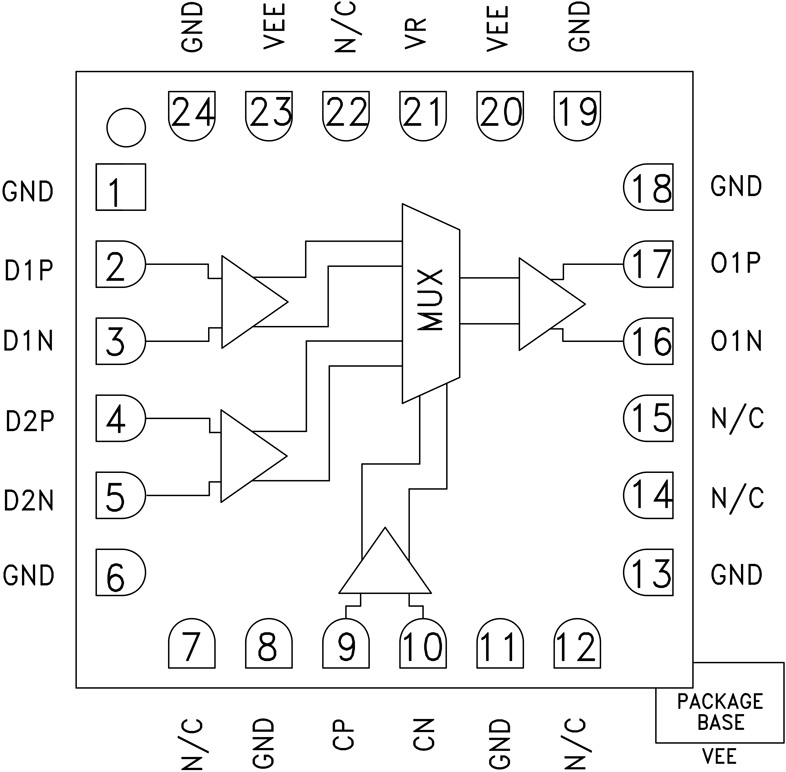

The HMC954LC4B is a 2 to 1 Multiplexer designed for 32 Gbps data serialization. The mux latches the two differential inputs on a rising edge of the input clock. The device uses both rising and falling edges of the half-rate clock to serialize the data. The HMC954LC4B also features an output level control pin, VR, which allows for loss compensation or for signal-level optimization.All differential inputs to the HMC954LC4B are CML and terminated on-chip with 50 ??to the positive supply, GND, and may be AC or DC coupled. The differential CML outputs are source terminated to 50 ? and may also be AC or DC coupled. Outputs can be connected directly to a 50 ??ground-terminated system or drive devices with CML logic input. The HMC954LC4B operates from a single ?3.3 V supply and is available in a ceramic ROHS-compliant 4 ? 4 mm SMT package.APPLICATIONS SONET OC-192 Broadband Test &?Measurement Equipment FPGA Interfacing Circuitry 16 G and 32 G Fiber Channel 100 Gbit Ethernet

$1,141.12
