DS1621S+
Analog Devices Inc.

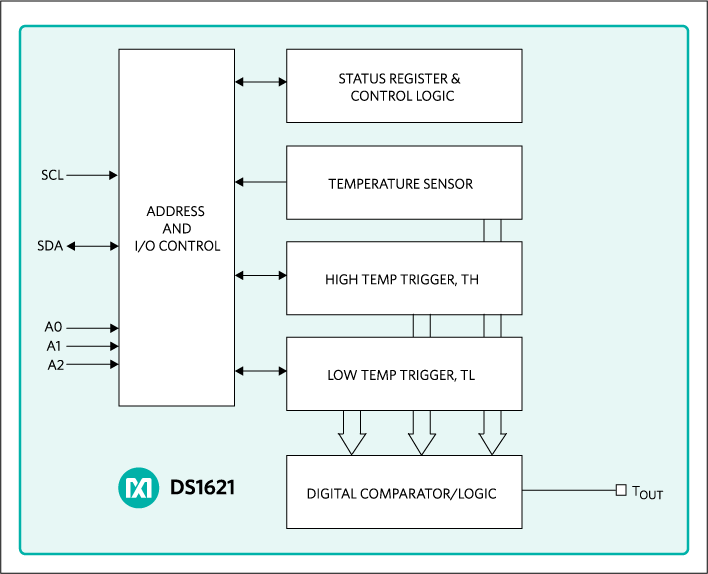

The DS1621 Digital Thermometer and Thermostat provides 9-bit temperature readings, which indicate the temperature of the device. The thermal alarm output, TOUT is active when the temperature of the device exceeds a user-defined temperature TH. The output remains active until the temperature drops below user defined temperature TL, allowing for any hysteresis necessary.User-defined temperature settings are stored in nonvolatile memory so parts may be programmed prior to insertion in a system. Temperature settings and temperature readings are all communicated to/from the DS1621 over a simple 2-wire serial interface.ApplicationsMedicalNetworkingPersonal ComputingRouters/SwitchesTest Measurement SystemsWireless Base Stations
$6.87 - $10.78
Distributors
Currency:
| Distributor | SKU | Stock | MOQ | 1 | 10 | 50 | 100 | 1000 | 10000 | Purchase | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 |
Analog Devices Inc | DS1621S+ | Buy | ||||||||
|
 |
element14 APAC | DS1621S+ | 85 | 1 | * $8.52 | * $7.38 | * $7.02 | * $6.53 | * $6.30 | * $6.30 | Buy |
|
 |
Farnell | DS1621S+ | 86 | 1 | * $10.43 | * $8.16 | * $7.41 | * $6.40 | * $6.02 | * $6.02 | Buy |
|
 |
Newark | DS1621S+ | 91 | 1 | $6.87 | $5.93 | $5.43 | $5.23 | $5.23 | $5.23 | Buy |
