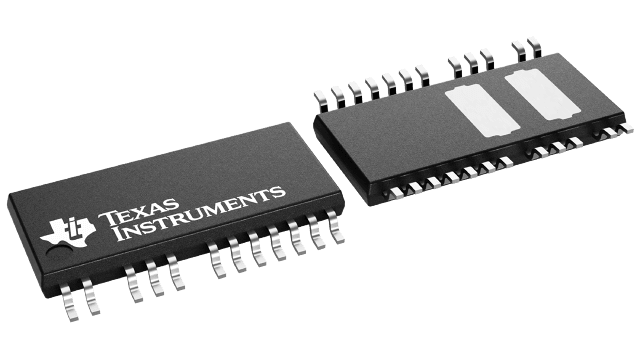

INA254A1IPWAR
Texas Instruments
80-V, bidirectional 75-A zero-drift current-sense amplifier with PWM rejection and shunt resistor 24-HTSSOP -40 to 125
$3.82 - $4.60
Distributors
Currency:
| Distributor | SKU | Stock | MOQ | 1 | 10 | 50 | 100 | 1000 | 10000 | Purchase | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 |
DigiKey | 296-INA254A1IPWARCT-ND | 1931 | 1 | $4.87 | $3.71 | $3.42 | $3.10 | $2.78 | $2,500.00 | Buy |
|
 |
Arrow North American Components | INA254A1IPWAR | 0 | 2500 | $2.40 | Buy | |||||
|
|
Mouser Electronics | 595-INA254A1IPWAR | 2301 | 1 | $4.60 | $3.42 | $3.42 | $3.02 | $2.45 | $1.96 | Buy |
|
|
Texas Instruments | INA254A1IPWAR | 5197 | 1 | $3.82 | $3.82 | $3.82 | $3.35 | $1.89 | $1.89 | Buy |
Parts in family
Technical Specifications
| Lead Free Status | Y |
| ROHS Compliance | Y |
| Approx. price(US$) | 1.89 | 1ku |
| Bandwidth(kHz) | 350 |
| CMRR(min)(dB) | 120 |
| Common-mode voltage(max)(V) | 80 |
| Common-mode voltage(min)(V) | -4 |
| Features | Bidirectional,Enhanced PWM Rejection,Integrated Shunt,Low-side Capable |
| Gain error drift ()(max)(ppm/C) | 45 |
| Gain error(%) | 0.5 |
| Input offset ()(max)(V) | 62500 |
| Input offset drift ()(typ)(V/C) | 625uA/C |
| Iq(max)(mA) | 2.4 |
| Operating temperature range(C) | -40 |
| Package size (L x W)(mm) | 9.7 x 6.4 |
| Package type | HTSSOP |
| Rating | Catalog |
| Supply voltage(max)(V) | 5.5 |
| Supply voltage(min)(V) | 2.7 |
| TI functional safety category | |
| TI.com inventory | 5202 |
