Analog Devices Inc.

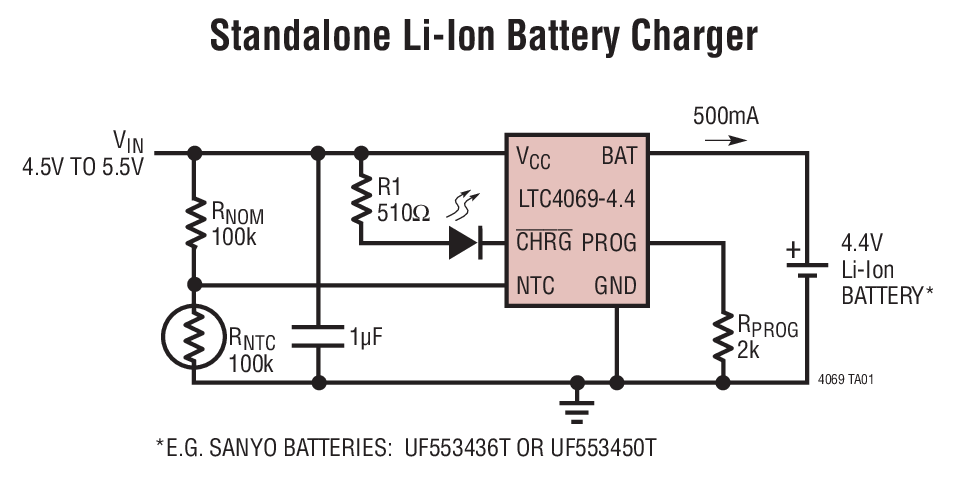

Standalone 750mA Li-Ion Battery Charger in 2 2 DFN with NTC Thermistor Input Features: Complete Linear Charger in 2mm × 2mm DFN Package C/10 Charge Current Detection Output Timer Charge Termination Charge Current Programmable Up to 750mA with 5% Accuracy No External MOSFET, Sense Resistor or Blocking Diode Required NTC Thermistor Input for Temperature Qualified Charging Preset 4.4V Float Voltage with 0.6% Accuracy Constant-Current/Constant-Voltage Operation with Thermal Feedback to Maximize Charge Rate Without Risk of Overheating Charge Current Monitor Output for Gas Gauging Automatic Recharge Charges Single-Cell Li-Ion Batteries Directly from USB Port 20µA Supply Current in Shutdown Mode Soft-Start Limits Inrush Current Tiny 6-Lead (2mm × 2mm) DFN Package

[no prices available]
