SN6507DGQR

Texas Instruments

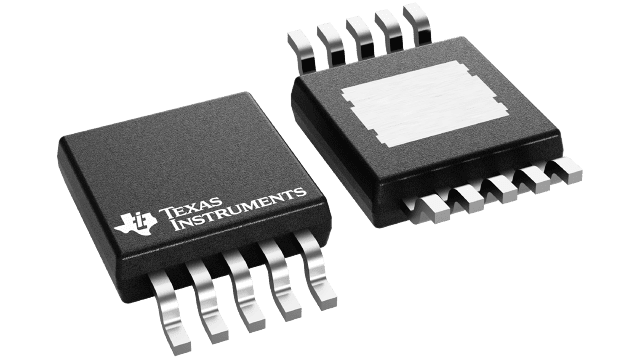

Low-emission 36-V push-pull transformer driver with duty cycle control for isolated power supplies 10-HVSSOP -55 to 125

$2.36 - $3.23

Distributors

Currency:

		Distributor	SKU	Stock	MOQ	1	10	50	100	1000	10000	Purchase
		DigiKey	296-SN6507DGQRQ1DKR-ND	5839		$3.74	$2.72	$2.46	$2.18	$1.90	$1.79	Buy
		Mouser Electronics	595-SN6507DGQR	7279	1	$3.23	$2.21	$2.21	$1.96	$1.68	$1.57	Buy
		Texas Instruments	SN6507DGQR	120939	1	$2.36	$2.36	$2.36	$2.07	$1.17	$1.17	Buy

Parts in family

Technical Specifications

Lead Free Status	Y
ROHS Compliance	Y
Approx. price(US$)	1.17 \| 1ku
Features	Enable, Duty-cycle control, Spread spectrum clocking, Slew-rate control, Short-circuit protection, Programmable over-current protection, Thermal shutdown
Iout(typ)(A)	0.5
Operating temperature range(C)	-55
Package area(mm^2)	14.7
Package size (L x W)(mm)	3 x 4.9
Package type	HVSSOP
Pin count	10
Rating	Catalog
Soft start	Yes
Switch current limit(typ)(A)	1.3
Switching frequency(max)(kHz)	2000
Switching frequency(min)(kHz)	100
TI functional safety category
TI.com inventory	136825
Vin(max)(V)	36
Vin(min)(V)	3
