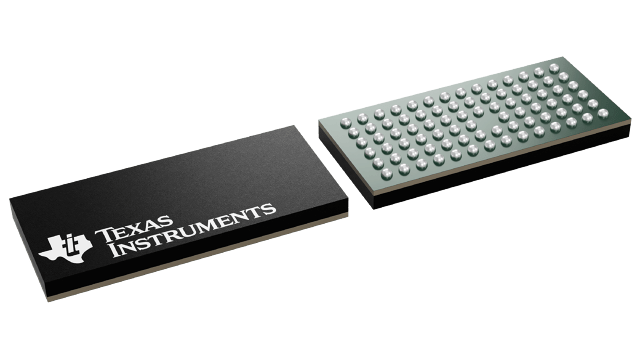

SN74AVC24T245NMUR
Texas Instruments
24-Bit Dual-Supply Bus Transceiver with Configurable Voltage Translation and 3-State Outputs 83-NFBGA -40 to 85
$2.40 - $3.06
Distributors
Currency:
| Distributor | SKU | Stock | MOQ | 1 | 10 | 50 | 100 | 1000 | 10000 | Purchase | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 |
DigiKey | 296-SN74AVC24T245NMURCT-ND | 603 | 1 | $3.94 | $2.98 | $2.74 | $2.47 | $1,000.00 | $3,000.00 | Buy |
|
 |
Arrow Europe | SN74AVC24T245NMUR | 1000 | 1000 | $1.87 | $1.87 | Buy | ||||
|
 |
Arrow North American Components | SN74AVC24T245NMUR | 0 | 1000 | $1.46 | $1.46 | $1.46 | $1.46 | $1.89 | $1.43 | Buy |
|
|
Mouser Electronics | 595-N74AVC24T245NMUR | 6599 | 1 | $3.06 | $2.10 | $2.10 | $1.89 | $1.53 | $1.53 | Buy |
|
|
Texas Instruments | SN74AVC24T245NMUR | 21830 | 1 | $2.40 | $2.40 | $2.40 | $2.10 | $1.19 | $1.19 | Buy |
|
|
Win Source | SN74AVC24T245NMUR | 100 | 1 | Buy |
Parts in family
Technical Specifications
| Lead Free Status | Y |
| ROHS Compliance | Y |
| Approx. price(US$) | 1.188 | 1ku |
| Bits(#) | 24 |
| Data rate(Max)(Mbps) | 380 |
| Features | Partial power down (Ioff),Over-voltage tolerant inputs,Output enable |
| High input voltage(Max)(Vih) | 3.6 |
| High input voltage(Min)(Vih) | 0.78 |
| ICC(Max)(uA) | 75 |
| IOH(Max)(mA) | -12 |
| IOL(Max)(mA) | 12 |
| Input type | Standard CMOS |
| Operating temperature range(C) | -40 to 85 |
| Output type | 3-State,Balanced CMOS,Push-Pull |
| Package Group | NFBGA|83 |
| Package size | mm2 |
| Rating | Catalog |
| Technology Family | AVC |
| Vout(Max)(V) | 3.6 |
| Vout(Min)(V) | 1.2 |
