TPD6E05U06RVZR
Texas Instruments
Category: ESD Suppressors

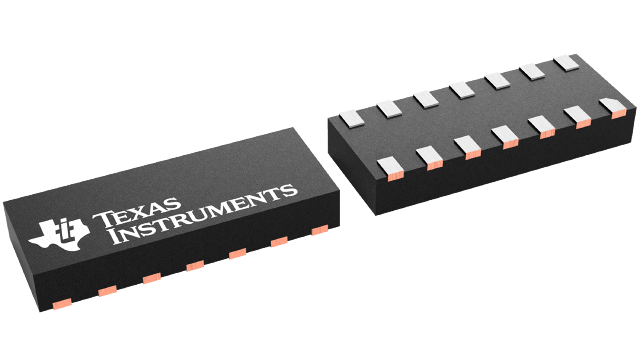

ESD Suppressor Diode Array ±15kV@Air Gap/±12kV@Contact Disc 14-Pin UQFN T/R
$0.29 - $8.35
Distributors
Currency:
| Distributor | SKU | Stock | MOQ | 1 | 10 | 50 | 100 | 1000 | 10000 | Purchase | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 |
DigiKey | 296-39349-6-ND | 100 | 1 | $1.02 | $0.92 | $0.68 | $0.71 | $0.51 | $0.29 | Buy |
|
|
Ameya360 | TPD6E05U06RVZR | 3000 | $0.40 | Buy | ||||||
|
 |
Arrow North American Components | TPD6E05U06RVZR | 0 | 3000 | $0.29 | $0.61 | $0.61 | $0.61 | $0.61 | $0.27 | Buy |
|
 |
AVNET Asia Pacific | TPD6E05U06RVZR | 15000 | 3000 | $0.30 | Buy | |||||
|
 |
AVNET Europe | TPD6E05U06RVZR | 3000 | 3000 | * $0.36 | Buy | |||||
|
|
AVNET Express | TPD6E05U06RVZR | 2692 | 3000 | $0.33 | Buy | |||||
|
|
Mouser Electronics | 595-TPD6E05U06RVZR | 24451 | 1 | $0.83 | $0.73 | $0.73 | $0.54 | $0.38 | $0.30 | Buy |
|
|
Newark | TPD6E05U06RVZR | 3000 | $0.29 | $0.29 | $0.29 | $0.29 | $0.29 | $0.28 | Buy | |
|
 |
Quest Components | TPD6E05U06RVZR | 55 | $7.35 | $6.18 | $6.18 | $6.18 | $6.18 | Buy | ||
|
|
Texas Instruments | TPD6E05U06RVZR | 2795130 | 1 | $0.49 | $0.49 | $0.49 | $0.38 | $0.20 | $0.20 | Buy |
|
|
Verical Marketplace | TPD6E05U06RVZR | 1544 | 16 | $0.68 | $0.47 | $0.38 | $0.27 | Buy | ||
|
|
Win Source | TPD6E05U06RVZR | 50035 | 90 | $1.99 | $1.61 | $1.37 | $1.37 | Buy |
Parts in family
Technical Specifications
| Lead Free Status | No |
| ROHS Compliance | Compliant |
| Approx. Price (US$) | 0.25 | 1ku |
| Bi-/Uni-Directional | Uni-Directional |
| Breakdown Voltage(Min)(V) | 6.5 |
| Dynamic Resistance(Typ)() | 0.8 |
| IEC 61000-4-2 Air-Gap(+/- kV) | 15 |
| IEC 61000-4-2 Contact(+/- kV) | 12 |
| IEC 61000-4-4 EFT(Max)(A) | 80 |
| IEC 61000-4-5 (Surge)(Max)(A) | 2.5 |
| IEC 61000-4-5 (Surge)(Max)(W) | 40 |
| IO Capacitance(Typ)(pF) | 0.5 |
| IO Leakage Current(Max)(nA) | 10 |
| Interface | Ethernet,HDMI 1.4/1.3,HDMI 2.0,LVDS,SATA/PCIe,USB 3.0,USB Type-C |
| Number of Channels(#) | 6 |
| Operating Temperature Range(C) | -40 to 125 |
| Package Group | USON |
| Package Size | mm2 |
| Rating | Catalog |
