UC2526ADWG4
Texas Instruments
Category: Power Management

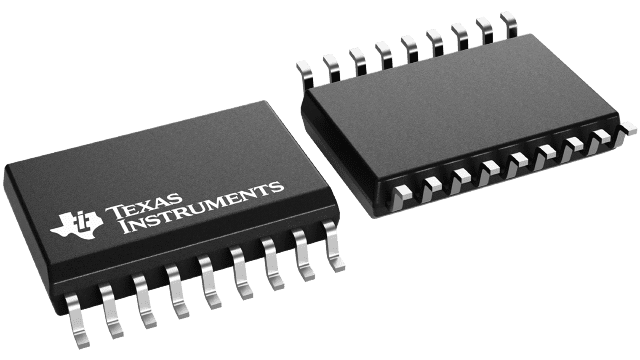

Voltage Mode PWM Controller 100mA 18-Pin SOIC Tube
$1.73
Distributors
Currency:
Parts in family
Technical Specifications
| Lead Free Status | Yes |
| ROHS Compliance | Compliant |
| Approx. Price (US$) | 1.20 | 1ku |
| Control Method | Voltage |
| Duty Cycle(Max)(%) | 50 |
| Frequency(Max)(kHz) | 600 |
| Frequency(Min)(kHz) | 0.01 |
| Gate Drive(Typ)(A) | 0.2 |
| Operating Temperature Range(C) | -25 to 85 |
| Package Group | PDIP,PLCC,SOIC |
| Rating | Catalog |
| Special Features | Error Amplifier,Soft Start,Synchronization Pin |
| Topology | Boost,Flyback,Forward,Full-Bridge,Half-Bridge,Push-Pull |
| UVLO Thresholds On/Off(V) | 7/6.8 |
| Vin(Max)(V) | 35 |
| Vin(Min)(V) | 8 |
