The ADXRS624 is a complete angular rate sensor (gyroscope) that uses the Analog Devices, Inc., surface-micromachining process to create a functionally complete and low cost angular rate sensor integrated with all required electronics on one chip. The manufacturing technique for this device is the same high volume BiMOS process used for high reliability automotive airbag accelerometers.The ADXRS624 is an automotive grade gyroscope. Automotive grade gyroscopes have more extensive guaranteed min/max specifications due to automotive testing.The output signal, RATEOUT (1B, 2A), is a voltage proportional to angular rate about the axis normal to the top surface of the package. The output is ratiometric with respect to a provided reference supply. A single external resistor between SUMJ and RATEOUT can be used to lower the scale factor. An external capacitor sets the bandwidth. Other external capacitors are required for operation. A temperature output is provided for compensation techniques. Two digital self-test inputs electromechanically excite the sensor to test proper operation of both the sensor and the signal conditioning circuits. The ADXRS624 is available in a 7 mm ? 7 mm ? 3 mm BGA chip scale package.APPLICATIONS Navigation systems Inertial measurement units Platform stabilization Robotics

The ADXRS620 is a complete angular rate sensor (gyroscope)that uses the Analog Devices, Inc. surface-micromachiningprocess to create a functionally complete and low cost angularrate sensor integrated with all required electronics on one chip.The manufacturing technique for this device is the same highvolume BiMOS process used for high reliability automotiveairbag accelerometers.The ADXRS620 is an automotive grade gyroscope that has 100% pin, package, temperature, and function compatible to the available industrial grade ADXRS652 gyro. Automotive grade gyroscopes have more extensive guaranteed min/max specifications due to automotive testing.The output signal, RATEOUT (1B, 2A), is a voltageproportional to angular rate about the axis normal to the topsurface of the package. The output is ratiometric with respect toa provided reference supply. A single external resistor can beused to lower the scale factor. An external capacitor sets thebandwidth. Other external capacitors are required for operation.A temperature output is provided for compensation techniques.Two digital self-test inputs electromechanically excite thesensor to test proper operation of both the sensor and the signalconditioning circuits. The ADXRS620 is available in a 7 mm ?7 mm ? 3 mm BGA ceramic package.APPLICATIONS Vehicle chassis rollover sensing Inertial measurement units Platform stabilization

The ADXRS622 is a complete angular rate sensor (gyroscope) that uses the Analog Devices, Inc., surface-micromachining process to make a functionally complete and low cost angular rate sensor, integrated with all of the required electronics on one chip. The manufacturing technique for this device is the same high volume BiMOS process used for high reliability automotive airbag accelerometers.The ADXRS622 is an automotive grade gyroscope that has 100% pin, package, temperature, and function compatible to the available industrial grade ADXRS652 gyroscope. Automotive grade gyroscopes have more extensive guaranteed minimum/ maximum specifications due to automotive testing. The output signal, RATEOUT (1B, 2A), is a voltage proportional to the angular rate about the axis that is normal to the top surface of the package. The output is ratiometric with respect to a provided reference supply. An external capacitor sets the bandwidth. Other external capacitors are required for operation.A temperature output is provided for compensation techniques. Two digital self-test inputs electromechanically excite the sensor to test proper operation of both the sensor and the signal condi-tioning circuits. The ADXRS622 is available in a 7 mm ? 7 mm ? 3 mm BGA chip-scale package.APPLICATIONS Vehicle chassis rollover sensing Inertial measurement units Platform stabilization

The AD5696R is a low power, quad, 16-bit buffered voltage output DAC. The device includes a 2.5 V, 2 ppm/?C internal reference (enabled by default) and a gain select pin giving a full-scale output of 2.5 V (gain = 1) or 5 V (gain = 2). The device operates from a single 2.7 V to 5.5 V supply, is guaranteed monotonic by design, and exhibits less than 0.1% FSR gain error and 1.5 mV offset error performance. The device is available in a 3 mm ? 3 mm LFCSP and a TSSOP package.The AD5696R also incorporates a power-on reset circuit and a RSTSEL pin that ensures that the DAC outputs power up to zero scale or midscale and remain there until a valid write takes place. Each part contains a per-channel power-down feature that reduces the current consumption of the device to 4 ?A at 3 V while in power-down mode.The AD5696R uses a versatile 2-wire serial interface that operates at clock rates up to 400 kHz, and includes a VLOGIC pin intended for 1.8 V/3 V/5 V logic.Product Highlights High Relative Accuracy (INL). AD5696R (16-bit): ?2 LSB maximum. Low Drift 2.5 V On-Chip Reference. 2 ppm/?C typical temperature coefficient. 5 ppm/?C maximum temperature coefficient. Two Package Options. 3 mm ? 3 mm, 16-lead LFCSP. 16-lead TSSOP.Applications Optical transceivers Base-station power amplifiers Process control (PLC I/O cards) Industrial automation Data acquisition systems

The AD7091R is a 12-bit successive approximation analog-to-digitalconverter (ADC) that offers ultralow power consumption(typically 349 ?A at 3 V and 1 MSPS) while achieving fastthroughput rates (1 MSPS with a 50 MHz SCLK). Operatingfrom a single 2.7 V to 5.25 V power supply, the part contains awide bandwidth track-and-hold amplifier that can handle inputfrequencies in excess of 7 MHz. The AD7091R also features anon-chip conversion clock, accurate reference, and high speedserial interface.The conversion process and data acquisition are controlled usinga CONVST signal and an internal oscillator. The AD7091R hasa serial interface that allows data to be read after the conversionwhile achieving a 1 MSPS throughput rate.The AD7091R uses advanced design and process techniques toachieve very low power dissipation at high throughput rates. Anon-chip, accurate 2.5 V reference is availableProduct Highlights Lowest Power 12-Bit SAR ADC Available. On-Chip, Accurate 2.5 V Reference. High Throughput Rate with Ultralow Power Consumption. Flexible Power/Throughput Rate Management. Average power scales with the throughput rate. Power-down mode allows the average power consumption to be reduced when the device is not performing a conversion. Single Supply Operation with VDRIVE Function. The AD7091R operates from a single 2.7 V to 5.25 V supply. The VDRIVE function allows the serial interface to connect directly to 1.8 V to 3.3 V processors.Applications Battery-powered systems ??Handheld meters ??Medical instruments ??Mobile communications Instrumentation and control systems Data acquisition systems Optical sensors Diagnostic/monitoring functions Energy harvesting

The AD5629R device is a low power, octal, 12-bit, buffered voltage-output DACs. It operates from a single 2.7 V to 5.5 V supply and is guaranteed monotonic by design.The AD5629R/AD5669R have an on-chip reference with aninternal gain of 2. The AD5629R-1/AD5669R-1 have a 1.25 V,5 ppm/?C reference, giving a full-scale output range of 2.5 V.The AD5629R-2/AD5629R-3 and the AD5669R-2/AD5669R-3have a 2.5 V 5 ppm/?C reference, giving a full-scale output rangeof 5 V depending on the option selected. Devices with 1.25 Vreference selected operate from a single 2.7 V to 5.5 V supply.Devices with 2.5 V reference selected operate from 4.5 V to 5.5 V.The on-chip reference is off at power-up, allowing the use of anexternal reference. The internal reference is enabled via asoftware write.The part incorporates a power-on reset circuit that ensures that the DAC output powers up to 0 V and remains powered up at this level until a valid write takes place. The part contains a power-down feature that reduces the current consumption of the device to 400 nA at 5 V and provides software-selectable output loads while in power-down mode for any or all DAC channels.Product Highlights Octal, 12-/16-bit DACs. On-chip 1.25 V/2.5 V, 5 ppm/?C reference. Available in 16-lead LFCSP and TSSOP, and 16-ball WLCSP. Power-on reset to 0 V or midscale. Power-down capability. When powered down, the DAC typically consumes 200 nA at 3 V and 400 nA at 5 V.Applications Process control Data acquisition systems Portable battery-powered instruments Digital gain and offset adjustment Programmable voltage and current sources

The AD5627R?/ AD5647R?/ AD5667R, AD5627?/ AD5667?members of the nanoDAC? family are low power, dual, 12-, 14-, 16-bit buffered voltage-out DACs with/without on-chip reference. All devices operate from a single 2.7 V to 5.5 V supply, are guaranteed monotonic by design, and have an I2C-compatible serial interface.The AD5627R / AD5647R / AD5667R have an on-chip reference. The AD5627RBCPZ, AD5647RBCPZ, and AD5667RBCPZ have a 1.25 V, 5 ppm/?C reference, giving a full-scale output range of 2.5 V; the AD56x7RBRMZ have a 2.5 V, 5 ppm/?C reference, giving a full-scale output range of 5 V. The on-chip reference is off at power-up, allowing the use of an external reference. The internal reference is enabled via a software write. The AD5667 and AD5627 require an external reference voltage to set the output range of the DAC.The AD5627R / AD5647R / AD5667R, AD5627 / AD5667 incorporate a power-on reset circuit that ensures the DAC output powers up to 0 V, and remains there until a valid write takes place.?The device contains a per-channel power-down feature that reduces the current consumption of the device to 480 nA at 5 V and provides software-selectable output loads while in power-down mode. The low power consumption of this device in normal operation makes it ideally suited to portable battery-operated equipment. The on-chip precision output amplifier enables rail-to-rail output swing.The AD5627R / AD5647R / AD5667R, AD5627 / AD5667 use a 2-wire I2C-compatible serial interface that operates in standard (100 kHz), fast (400 kHz), and high speed (3.4 MHz) modes.APPLICATIONS Process control Data acquisition systems Portable battery-powered instruments Digital gain and offset adjustment Programmable voltage and current sources Programmable attenuators

The AD74412R is a quad-channel software configurable input/output solution for building and process control applications. The AD74412R contains functionality for analog output, analog input, digital input, and resistance temperature detector (RTD) measurements integrated into a single chip solution with an interface compatible with the serial port interface (SPI).The device features a 16-bit, ?-? analog-to-digital converter (ADC) and four configurable, 13-bit digital-to-analog converters (DACs) to provide four configurable input/output channels and a suite of diagnostic functions.There are several modes related to the AD74412R. These modes are voltage output, current output, voltage input, externally powered current input, loop powered current input, external RTD measurement, digital input logic, and loop powered digital input.The AD74412R contains a high accuracy 2.5 V internal reference to drive the DACs and the ADC.Product Highlights Quad-Channel, Software Configurable Channels. Built In Diagnostics and Alert Features. Robust Architecture. Surge tested to ?1 kV, per the IEC61000-4-5 standard, on the input/output terminals with unshielded cables.?Applications? Building control systems Process control Industrial automation ?

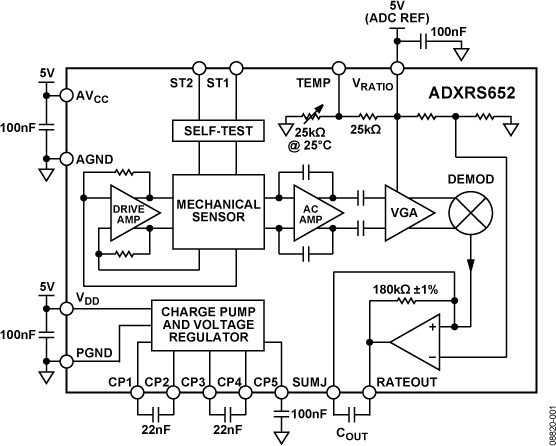

The ADXRS652 is a complete angular rate sensor (gyroscope) that uses the Analog Devices, Inc. surface-micromachining process to make a functionally complete and low cost angular rate sensor integrated with all of the required electronics on one chip. The manufacturing technique for this device is a patented high volume BIMOS process with years of proven field reliability.The ADXRS652 is an industrial grade gyroscope that 100% pin, package, temperature, and function compatible to the related automotive grade ADXRS620 and ADXRS622 gyroscopes. Automotive grade gyroscopes have more guaranteed min/max specifications due to automotive testing.The output signal, RATEOUT (1B, 2A), is a voltage proportional to angular rate about the axis normal to the top surface of the package. The output is ratiometric with respect to a provided reference supply. An external capacitor is used to set the bandwidth. Other external capacitors are required for operation.A temperature output is provided for compensation techniques. Two digital self-test inputs electromechanically excite the sensor to test proper operation of both the sensor and the signal conditioning circuits. The ADXRS652 is available in a 7 mm ? 7 mm ? 3 mm BGA chip-scale package.

The AD5672R/AD5676R are low power, octal, 12-/16-bit buffered voltage output digital-to-analog converters (DACs). They include a 2.5 V, 2 ppm/?C internal reference (enabled by default) and a gain select pin giving a full-scale output of 2.5 V (gain = 1) or 5 V (gain = 2). The devices operate from a single 2.7 V to 5.5 V supply and are guaranteed monotonic by design. The AD5672R/AD5676R are available in a 20-lead TSSOP?and in a 20-lead LFCSP and incorporate a power-on reset circuit and a RSTSEL pin that ensures that the DAC outputs power up to zero scale or midscale and remains there until a valid write. The AD5672R/AD5676R contain a power-down mode, reducing the current consumption to 1 ?A typical while in power-down mode. The AD5676R is also available in a 16-ball WLCSP.PRODUCT HIGHLIGHTS High Relative Accuracy (INL). AD5672R (12-bit): ?1 LSB maximum AD5676R (16-bit): ?3 LSB maximum Low Drift 2.5 V On-Chip Reference. High Channel Density.Eight channels in 2.5 mm ? 2.4 mm WLCSP (AD5676R).APPLICATIONS Optical transceivers Base-station power amplifiers Process control (PLC input/output cards) Industrial automation Data acquisition systems
