The ADE7903 is a nonisolated, 3-channel, ?-? analog-to-digital converter (ADC) for the neutral line of polyphase energymetering applications using shunt current sensors. The ADE7903 can also be used for single-phase energy meteringand other standalone ADC applications. The ADE7903 features three 24-bit ADCs. The current ADC provides a 67 dBFSsignal-to-noise ratio (SNR) over a 3.3 kHz signal bandwidth, whereas the voltage ADCs provide an SNR of 72 dBFS over thesame bandwidth. One channel is dedicated to measuring the voltage across a shunt when the shunt is used for current sensing.Up to two additional channels are dedicated to measuring voltages, which are usually sensed using resistor dividers.One voltage channel can be used to measure the temperature of the die via an internal sensor. The ADE7903 includes threechannels: one current channel and two voltage channels.Together with the ADE7912?/ ADE7913, the ADE7903 providesa small form factor, 3-phase isolated solution with a neutralmeasurement. The three phases are isolated with ADE7912 /ADE7913 devices, while the neutral line is not isolated with theADE7903. The ADE7903 configuration and status registers are accessedvia a bidirectional SPI serial port for easy interfacing withmicrocontrollers.The ADE7903 can be clocked from a crystal or an externalclock signal. To minimize the system bill of materials, themaster ADE7912 / ADE7913 can drive the clocks of up to threeadditional ADE7912 / ADE7913 or ADE7903 devices.Multiple ADE7912 / ADE7913 and ADE7903 devices can besynchronized to sample at the same moment and providecoherent outputs. The ADE7903 can also be used individuallyas a standalone ADC. The ADE7903 is available in a 20-lead, Pb-free, wide body SOICpackage.APPLICATIONS 3-phase shunt-based polyphase meters with neutral channel measurement Single-phase meters Power quality monitoring Solar inverters Process monitoring Standalone ADCs Protective devices Isolated sensor interfaces Industrial programmable logic controllers (PLCs)

The ADF4150 allows implementation of fractional-N or integer-N phase-locked loop (PLL) frequency synthesizers if used with an external voltage-controlled oscillator (VCO), loop filter, and external reference frequency.The ADF4150 is for use with external VCO parts and is software compatible with the ADF4350. The VCO frequency can be divided by 1/2/4/8/16 to allow the user to generate RF output frequencies as low as 31.25 MHz. For applications that require isolation the RF output stage can be muted. The mute function is both pin and software controllable.Control of all the on-chip registers is through a simple 3-wire interface. The device operates with a power supply ranging from 3.0 V to 3.6 V and can be powered down when not in use.The ADF4150 is available in a 4 mm ? 4 mm package.Applications Wireless infrastructure (W-CDMA, TD-SCDMA, WiMax, GSM, PCS, DCS, DECT) Test equipment Wireless LANs, CATV equipment Clock generation

The ADF4151 allows implementation of fractional-N or integer-N phase-locked loop (PLL) frequency synthesizers if used with an external voltage controlled oscillator (VCO), loop filter, and external reference frequency.The ADF4151 is used with external VCO parts and is footprint and software compatible with the ADF4350. The part consists of a low noise digital phase frequency detector (PFD), a precision charge pump, and a programmable reference divider. There is a ?-? based fractional interpolator to allow programmable fractional-N division. The INT, FRAC, and MOD registers define an overall N divider [N = (INT + (FRAC/MOD))]. The RF output phase is programmable for applications that require a particular phase relationship between the output and the reference. The ADF4151 also features cycle slip reduction circuitry, leading to faster lock times without the need for modifications to the loop filter.Control of all the on-chip registers is through a simple 3-wire interface. The device operates with a power supply ranging from 3.0 V to 3.6 V that can be powered down when not in use.The ADF4151 is available in a 5 mm ? 5 mm package.Applications Wireless infrastructure (W-CDMA, TD-SCDMA, WiMax, GSM, PCS, DCS, DECT) Test equipment Wireless LANs, CATV equipment Clock generation

The ADF4152HV is a 5.0 GHz, fractional-N or integer N frequency synthesizer with an integrated high voltage charge pump. The synthesizer can drive external wideband voltage controlled oscillators (VCOs) directly, eliminating the need for operational amplifiers to achieve higher tuning voltages. The integrated high voltage charge pump simplifies design and reduces cost while improving phase noise, in contrast to active filter topologies, which tend to degrade phase noise compared to passive filter topologies.The VCO frequency can be divided by 1, 2, 4, 8, or 16 to allow the user to generate RF output frequencies as low as 31.25 MHz. For applications that require isolation, the RF output stage can be muted. The mute function is both pin and software controllable.A simple 3-wire interface controls all on-chip registers. The charge pump operates from a power supply ranging from 6.0 V to 30 V, whereas the rest of the device operates from 3.0 V to 3.6 V. The ADF4152HV can be powered down when not in use.Applications Wireless infrastructure Microwave point to point/point to multipoint radios Very small aperture terminal (VSAT) radios Test equipment Private land mobile radios

The ADF4350 allows implementation of fractional-N orinteger-N phase-locked loop (PLL) frequency synthesizersif used with an external loop filter and external referencefrequency.The ADF4350 has an integrated voltage controlled oscillator(VCO) with a fundamental output frequency ranging from2200 MHz to 4400 MHz. In addition, divide-by-1/2/4/8 or 16circuits allow the user to generate RF output frequencies as lowas 137.5 MHz. For applications that require isolation, the RFoutput stage can be muted. The mute function is both pin- andsoftware-controllable. An auxiliary RF output is also available,which can be powered down if not in use.Control of all the on-chip registers is through a simple 3-wireinterface. The device operates with a power supply rangingfrom 3.0 V to 3.6 V and can be powered down when not in use.Applications Wireless infrastructure (W-CDMA, TD-SCDMA, WiMAX, GSM, PCS, DCS, DECT) Test equipment Wireless LANs, CATV equipment Clock generation

The ADF7021-N is a high performance, low power, narrow-band transceiver based on the ADF7021. The ADF7021-N has IF filter bandwidths of 9 kHz, 13.5 kHz, and 18.5 kHz, making it ideally suited to worldwide narrowband standards and particularly those that stipulate 12.5 kHz channel separation. It is designed to operate in the narrow-band, license-free ISM bands and in the licensed bands with frequency ranges of 80 MHz to 650 MHz and 842 MHz to 916 MHz. The part has both Gaussian and raised cosine transmit data filtering options to improve spectral efficiency for narrow-band applications. It is suitable for circuit applications targeted at the Japanese ARIB STD-T67, the European ETSI EN 300 220, the Korean short range device regulations, the Chinese short range device regulations, and the North American FCC Part 15, Part 90, and Part 95 regulatory standards. A complete transceiver can be built using a small number of external discrete components, making the ADF7021-N very suitable for price-sensitive and area-sensitive applications. The range of on-chip FSK modulation and data filtering options allows users greater flexibility in their choice of modulation schemes while meeting the tight spectral efficiency requirements. The ADF7021-N also supports protocols that dynamically switch among 2FSK, 3FSK, and 4FSK to maximize communica-tion range and data throughput. The transmit section contains two voltage controlled oscillators (VCOs) and a low noise fractional-N PLL with an output resolution of The frequency-agile PLL allows the ADF7021-N to be used in frequency-hopping, spread spectrum (FHSS) systems. Both VCOs operate at twice the fundamental frequency to reduce spurious emissions and frequency pulling problems. The transmitter output power is programmable in 63 steps from ?16 dBm to +13 dBm and has an automatic power ramp control to prevent spectral splatter and help meet regulatory standards. The transceiver RF frequency, channel spacing, and modulation are programmable using a simple 3-wire interface. The device operates with a power supply range of 2.3 V to 3.6 V and can be powered down when not in use. A low IF architecture is used in the receiver (100 kHz), which minimizes power consumption and the external component count yet avoids dc offset and flicker noise at low frequencies. The IF filter has programmable bandwidths of 9 kHz, 13.5 kHz, and 18.5 kHz. The ADF7021-N supports a wide variety of pro-grammable features including Rx linearity, sensitivity, and IF bandwidth, allowing the user to trade off receiver sensitivity and selectivity against current consumption, depending on the application. The receiver also features a patent-pending automatic frequency control (AFC) loop with programmable pull-in range that allows the PLL to track out the frequency error in the incoming signal. The receiver achieves an image rejection performance of 56 dB using a patent-pending IR calibration scheme that does not require the use of an external RF source. An on-chip ADC provides readback of the integrated tempera-ture sensor, external analog input, battery voltage, and RSSI signal, which provides savings on an ADC in some applications. The temperature sensor is accurate to ?10?C over the full oper-ating temperature range of ?40?C to +85?C. This accuracy can be improved by performing a 1-point calibration at room temperature and storing the result in memory.

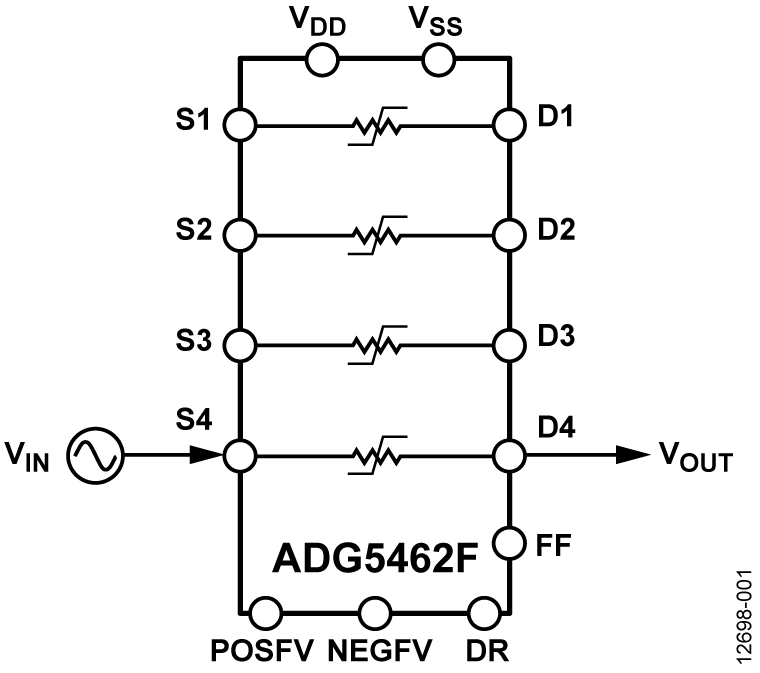

The ADG5462F contains four channels that are overvoltage protected. The channel protector is placed in series with the signal path and protects sensitive components from overvoltage faults in that path. The channel protector prevents overvoltages when powered and unpowered, and it is ideal for use in applications where correct power supply sequencing cannot always be guaranteed. The primary supply voltages define the on-resistance profile, while the secondary supply voltages define the voltage level at which the overvoltage protection engages.When no power supplies are present, the channel remains in the off condition, and the channel inputs are high impedance. Under normal operating conditions, if the analog input signal levels on any Sx pin exceed positive fault voltage (POSFV) or negative fault voltage (NEGFV) by a threshold voltage (VT), the channel turns off and that Sx pin becomes high impedance. If the DR pin is driven low, the drain pin (Dx) is pulled to the secondary supply voltage that was exceeded. The output profile for each DR voltage level is shown in Figure 1. Input signal levels up to ?55 V or +55 V relative to ground are blocked in both the powered and unpowered conditions.The low on-resistance of these switches, combined with the on-resistance flatness over a significant portion of the signal range make them an ideal solution for data acquisition and instrumentation applications where excellent linearity and low distortion are critical.Product Highlights Source pins are protected against voltages greater than the secondary supply rails (POSFV and NEGFV), up to ?55 V and +55 V. In an unpowered state, source pins (Sx) are protected against voltages from ?55 V to +55 V. Overvoltage detection with digital output indicates operating state of channel. Trench isolation guards against latch-up. Optimized for low on-resistance and on-resistance flatness. The ADG5462F operates from a dual power supply range of ?5 V to ?22 V or a single power supply range of 8 V to 44 V.Applications Analog input/output modules Process control/distributed control systems Data acquisition Instrumentation Avionics Automatic test equipment Communication systems

The ADG884 is a low voltage CMOS device containing two independently selectable single-pole, double-throw (SPDT) switches. This device offers ultralow on resistance of 0.41 ? over the full temperature range, making the part an ideal solution for applications that require minimal distortion through the switch. The ADG884 also has the capability of carrying large amounts of current, typically 600 mA at 5 V operation.The ADG884 is available in a 10-ball, 2 mm ? 1.5 mm WLCSP package, a 10-lead LFCSP_WD package, and a 10-lead MSOP package. These tiny packages make the ADG884 the ideal solution for space-constrained applications.When on, each switch conducts equally well in both directions and has an input signal range that extends to the supplies. The ADG884 exhibits break-before-make switching action.Product Highlights Single 1.8 V to 5.5 V operation. High current handling capability (400 mA continuous current). 1.8 V logic compatible. Low THD + N (0.01% typical). Tiny 2 mm ? 1.5 mm WLCSP, 3 mm ? 3 mm 10-lead LFCSP_WD, and 10-lead MSOP packages. ApplicationsCellular phonesPDAsMP3 playersPower routingBattery-powered systemsPCMCIA cardsModemsAudio and video signal routingCommunications systemsData Sheet, Rev. C, 6/08

The ADG888 is a low voltage, dual DPDT (double-pole,double-throw) CMOS device optimized for high performanceaudio switching. With its low power and small physical size, it isideal for portable devices.This device offers ultralow on resistance of less than 0.8 ? overthe full temperature range, making it an ideal solution forapplications requiring minimal distortion through the switch.The ADG888 also has the capability of carrying large amountsof current, typically 400 mA at 5 V operation.When on, each switch conducts equally well in both directionsand has an input signal range that extends to the supplies. TheADG888 exhibits break-before-make switching action.The ADG888 is available in a 16-ball WLCSP, 16-lead LFCSP,and a 16-lead TSSOP. These packages make the ADG888 the ideal solution for space-constrained applications.Product Highlights <0.6 ? over full temperature range of ?40?C to +125?C. High current handling capability (400 mA continuous current at 5 V). Low THD + N (0.008% typical). Tiny 16-ball WLCSP, 16-lead LFCSP, and 16-lead TSSOP. Applications Cellular phones? PDAs? MP3 players? Power routing? Battery-powered systems? PCMCIA cards? Modems? Audio and video signal routing? Communication systems? Data switching

The ADG936 / ADG936-R are wideband analog switches that comprise two independently selectable SPDT switches using a CMOS process to provide high isolation and low insertion loss to 1 GHz. The ADG936 is an absorptive/matched dual SPDT with 50 ? terminated shunt legs; the ADG936-R is a reflective dual SPDT. These devices are designed such that the isolation is high over the dc to 1 GHz frequency range. They have on-board CMOS control logic, eliminating the need for external controlling circuitry. The control inputs are both CMOS and LVTTL compatible. The low power consumption of these CMOS devices makes them ideally suited for wireless applications and general-purpose high frequency switching.
