MSP-EXP430FR2433

Texas Instruments

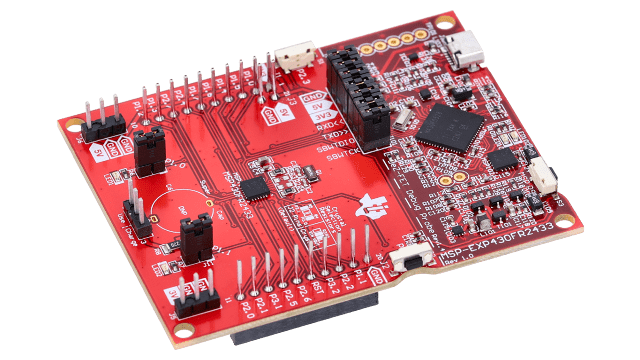

The MSP-EXP430FR2433 LaunchPad Development Kit is an easy-to-use evaluation module (EVM) based on the MSP430FR2433 Value Line Sensing microcontroller (MCU). It contains everything needed to start developing on the ultra-low-power MSP430FR2x Value Line Sensing MCU platform, including on-board debug probe for programming, debugging and energy measurements. The board includes 2 buttons and 2 LEDs for creating a simple user interface. It also supports using a supercapacitor (needs to be purchased and installed by the user) that acts like a rechargeable battery, enabling standalone applications without an external power supply.

The 16MHz MSP430FR2433 device features 15.5KB of embedded FRAM (Ferroelectric Random Access Memory), a non-volatile memory known for its ultra-low power, high endurance, and high speed write access. Combined with the 4 KB of on-chip SRAM, users have access to 15.5KB of memory to split between their program and data as required. For example, a data logging application may require a large data memory with a relatively small program memory, so the memory may be allocated as required between program and data memory.

Features:

  • ULP FRAM technology based MSP430FR2433 16-bit MCU
  • EnergyTrace Technology available for ultra-low-power debugging
  • 20-pin LaunchPad kit standard leveraging the BoosterPack ecosystem
  • On-board eZ-FET debug probe
  • 2 buttons and 2 LEDs for user interaction

What's included:

  • 1 x MSP-EXP430FR2433 LaunchPad Development Kit
  • 1 x Micro USB Cable
  • 1 x Quick Start Guide
Distributor SKU Stock MOQ 1 10 50 100 1,000 10,000
Texas Instruments MSP-EXP430FR2433 980 1 $9.99 $9.99 $9.99 $9.99 $9.99 $9.99
Digi-Key 296-47527-ND 98 1 $11.99 $11.99 $11.99 $11.99 $11.99 $11.99
Mouser Electronics 595-MSP-EXP430FR2433 757 1 $13.40 $13.40 $13.40 $13.40 $13.40 $13.40
Arrow North American Components MSP-EXP430FR2433 0 1 $11.99 $11.95 $11.95 $11.71 $11.56 $11.56
AVNET Asia Pacific MSP-EXP430FR2433 0 1 $0.00 $0.00 $0.00 $0.00 $0.00 $0.00
AVNET Europe MSP-EXP430FR2433 0 1 $14.50 $14.07 $13.02 $12.41 $12.41 $12.41
AVNET Express MSP-EXP430FR2433 0 1 $12.19 $12.19 $12.19 $12.19 $12.19 $12.19
element14 APAC MSP-EXP430FR2433 1 1 $19.95 $19.62 $19.62 $19.62 $19.62 $19.62
Farnell MSP-EXP430FR2433 13 1 $9.67 $9.51 $9.51 $9.51 $9.51 $9.51
Newark MSP-EXP430FR2433 69 1 $12.98 $12.68 $12.68 $12.68 $12.68 $12.68
Verical Marketplace MSP-EXP430FR2433 146 1 $14.76 $12.28 $13.52 $13.04 $13.04 $13.04
