Texas Instruments
TPA6203A1DRB
|
Texas Instruments
TPA711DGN
|
Texas Instruments
TPA152DR
|
Texas Instruments
PGA2500IDBRG4
|
Texas Instruments
LMV1032UPX-06/NOPB
|
Texas Instruments
LM1875T/LF05
|
Texas Instruments
LM4752TS/NOPB
|
Texas Instruments
TPA6203A1DGN
|
Texas Instruments
TPA6138A2PWR
|
Texas Instruments
TPA6139A2PWR
|
| Price |
|
$0.64 |
|
|
|
|
$2.17 |
$1.92 |
|
$0.68 |
|
| RoHS |
|
Yes |
Yes |
Compliant |
Compliant |
Compliant |
Compliant |
Not Compliant |
Yes |
Compliant |
Compliant |
| Lead Status |
|
Yes |
Yes |
No |
No |
No |
No |
No |
Yes |
No |
No |
| Iq(Max)(mA) |
|
2 |
|
|
|
|
|
|
2 |
|
|
| Iq per channel(Typ)(mA) |
|
1.7 |
1.25 |
2.8 |
|
|
|
|
1.7 |
14 |
|
| Approx. Price (US$) |
|
0.30 | 1ku |
0.38 | 1ku |
0.73 | 1ku |
7.95 | 1ku |
0.57 | 1ku |
1.36 | 1ku |
1.20 | 1ku |
0.30 | 1ku |
0.31 | 1ku |
0.35 | 1ku |
| THD + N @ 1 kHz(%) |
|
0.06 |
|
|
|
|
|
|
0.06 |
|
|
| Operating Temperature Range(C) |
|
-40 to 85 |
-40 to 85 |
|
-40 to 85 |
-40 to 85 |
0 to 70 |
0 to 70 |
-40 to 85 |
-40 to 85 |
-40 to 150,-40 to 85 |
| Rating |
|
Catalog |
Catalog |
Catalog |
|
|
Catalog |
Catalog |
Catalog |
Catalog |
Catalog |
| Output Power(W) |
|
1.25 |
0.7 |
0.075 |
|
|
|
|
1.25 |
0.25 |
0.025 |
| Pin/Package |
|
8BGA MICROSTAR JUNIOR, 8MSOP-PowerPAD, 8SON |
|
|
|
|
|
|
8BGA MICROSTAR JUNIOR, 8MSOP-PowerPAD, 8SON |
|
|
| Control Interface |
|
Hardware |
|
|
|
|
Hardware |
Hardware |
Hardware |
|
|
| Shutdown Current (ISD)(uA) |
|
0.01 |
7 |
|
|
|
|
|
0.01 |
|
|
| Speaker Channels(Max) |
|
Mono |
Mono |
|
|
|
1 |
2 |
Mono |
|
|
| Analog Supply (V)(Max) |
|
5.5 |
5.5 |
5.5 |
|
|
60 |
16 |
5.5 |
3.6 |
3.6 |
| PSRR(dB) |
|
90 |
85 |
81 |
|
|
|
|
90 |
80 |
80 |
| Package Group |
|
BGA MICROSTAR JUNIOR,MSOP-PowerPAD,SON |
MSOP-PowerPAD,SOIC |
SOIC |
SSOP |

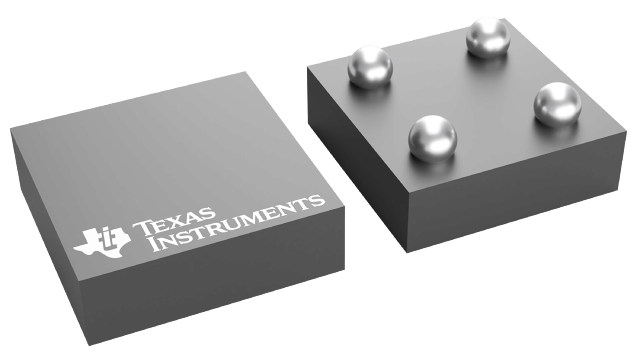

DSBGA |
TO-220 |

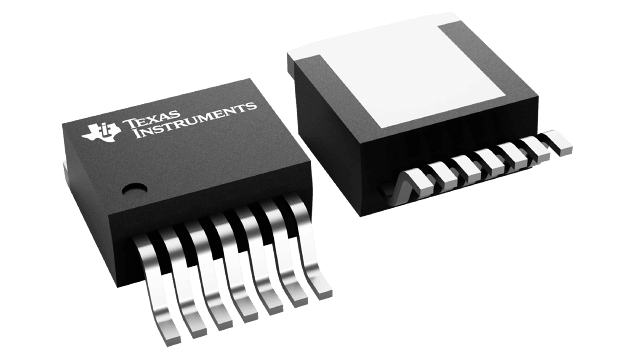

DDPAK/TO-263 |
BGA MICROSTAR JUNIOR,MSOP-PowerPAD,SON |
TSSOP |
QFN,TSSOP |
| Analog Supply (V)(Min) |
|
2.5 |
2.5 |
4.5 |
|
|
16 |
9.6 |
2.5 |
3.6 |
3 |
| SNR(dB) |
|
104 |
|
|
|
|
|
|
104 |
|
|
| Audio Input Type |
|
Analog Input |
Analog Input |
|
|
|
|
Analog |
Analog Input |
|
|
| Load(Min)(ohms) |
|
8 |
|
32 |
|
|
|
|
8 |
32 |
32 |
| Package Size |
|
mm2 |
mm2 |
mm2 |
|
|
mm2 |
mm2 |
mm2 |
mm2 |
mm2 |
| Architecture |
|
Class AB |
|
|
|
|
|
|
Class AB |
Class-AB |
Class-AB |
| Iq(Typ)(mA) |
|
1.7 |
|
|
30 |
60 |
|
|
1.7 |
|
|
| Speaker Amp Type |
|
|
Class-AB |
|
|
|
|
|
|
|
|
| Headphone Channels |
|
|
|
Stereo |
|
|
|
|
|
Stereo |
Stereo |
| Interface |
|
|
|
|
Digital SPI |
Analog 3 Wire |
|
|
|
|
|
| Gain Range(dB) |
|
|
|
|
0dB, and 10dB to 65dB in 1dB steps |
Fixed Gain, 6dB, 15dB, 25dB |
|
|
|
|
|
| Input Voltage Noise(Typ)(nV/rtHz) |
|
|
|
|
1.2 |
56 |
|
|
|
|
|
| Power Supply(Typ)(V) |
|
|
|
|
5 |
1.7 to 5 |
|
|
|
|
|
| Closed/Open Loop |
|
|
|
|
|
|
Open |
Closed |
|
|
|
| Power Stage Supply(Min)(V) |
|
|
|
|
|
|
16 |
9.6 |
|
|
|
| Power Stage Supply(Max)(V) |
|
|
|
|
|
|
60 |
16 |
|
|
|
| Ground-Centered Outputs |
|
|
|
|
|
|
|
|
|
Yes |
Yes |
| Volume Control |
|
|
|
|
|
|
|
|
|
N |
N |
