The MAX5972A provides a complete interface for a powered device (PD) to comply with the IEEE® 802.3af/at standard in a power-over-Ethernet (PoE) system. The MAX5972A provides the PD with a detection signature, classification signature, and an integrated isolation power switch with inrush current control. During the inrush period, the MAX5972A limits the current to less than 180mA before switching to the higher current limit (720mA to 880mA) when the isolation power MOSFET is fully enhanced. The device features an input UVLO with wide hysteresis and long deglitch time to compensate for twisted-pair cable resistive drop and to assure glitch-free transition during power-on/-off conditions. The MAX5972A can withstand up to 100V at the input.The MAX5972A supports a 2-event classification method as specified in the IEEE 802.3at standard and provides a signal to indicate when probed by Type 2 power-sourcing equipment (PSE). The device detects the presence of a wall adapter power-source connection and allows a smooth switch over from the PoE power source to the wall power adapter. The MAX5972A also provides a power-good (PG) signal, two-step current limit and foldback, overtemperature protection, and di/dt limit.The MAX5972A is available in a 16-pin, 5mm x 5mm, TQFN power package. This device is rated over the -40°C to +85°C extended temperature range.ApplicationsIEEE 802.3af/at Powered DevicesIP Phones, Wireless Access Nodes, IP Security CamerasWiMAX™ Base Station

SAIP-M12BG-5-1.5V

Enclosure, Din Rail, Ppo, Gray; Enclosure Type:Din Rail; External Height - Metric:90Mm; External Width - Metric:18Mm; External Depth - Metric:58Mm; Ip Rating:-; Body Color:Gray; Nema Rating:-; External Height - Imperial:3.54" Rohs Compliant: Yes |Hammond 1597DIN1MH53

Enclosure, Din Rail, Ppo, Gray; Enclosure Type:Din Rail; External Height - Metric:90Mm; External Width - Metric:53Mm; External Depth - Metric:58Mm; Ip Rating:-; Body Color:Gray; Nema Rating:-; External Height - Imperial:3.54" Rohs Compliant: Yes |Hammond 1597DIN3MC53

Terminal Cover, Enclosure, Pc, Abs; Cover Color:-; For Use With:Hammond 1597Dm Series Din 5 Enclosures; External Depth - Metric:87Mm; External Width - Metric:14Mm; External Height - Metric:20Mm; External Depth - Imperial:3.43" Rohs Compliant: Yes |Hammond 1597D5MTC

Top Cover, Enclosure, Gray, Pc, Abs; Cover Color:Gray; For Use With:Hammond 1597Dm Series Din 9 Enclosures; External Depth - Metric:155Mm; External Width - Metric:42Mm; External Height - Metric:2Mm; External Depth - Imperial:6.11" Rohs Compliant: Yes |Hammond 1597D9MPH

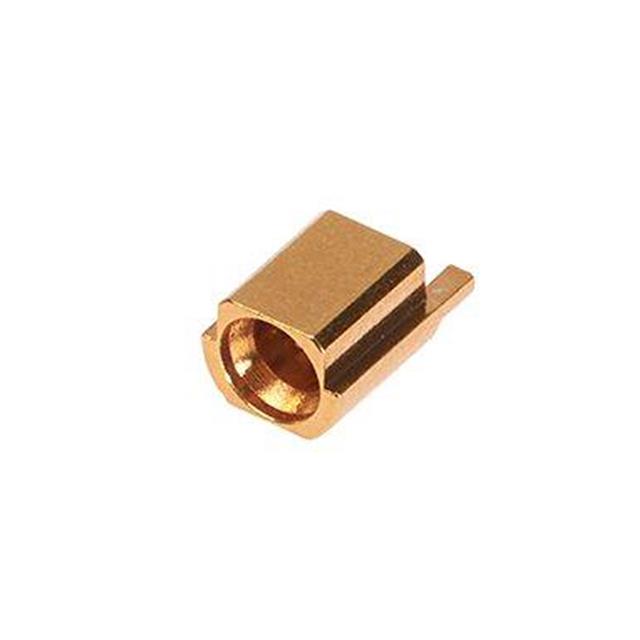

Connector SMP Plug 0GHz to 40GHz 50Ohm Solder Straight Edge Mount Gold

2-PORT MATENET FRAME,UTP, COD B Number of Positions: 2 Connector & Housing Type: Housing for Female Terminals Mating Tab Width: .5 mm Mating Tab Width: .019 in Connector System: Wire-to-Board Automotive Housing | 2 Housing for Female Terminals .5 mm .019" | Part Number: 2305974-2 | Internal Number: 2305974-2 | TE Connectivity

RJ INDUSTRIAL RJ45 DUALBOOT PUSHPULL PATCH CABLE, CAT5E FRNC YELLOW, 0.3M

RJ INDUSTRIAL RJ45 DUALBOOT PUSHPULL PATCH CABLE, CAT5E FRNC YELLOW, 2.5M
