| Price | $3.22 | $0.48 | $0.49 | $1.18 | |||||||
| RoHS | Compliant | Compliant | Yes | Compliant | Yes | Compliant | Compliant | Compliant | Compliant | Compliant | |
| Lead Status | No | No | Yes | Yes | Yes | No | No | No | No | No | |
| Operating Temperature Range(C) | -40 to 70 | -40 to 85 | -40 to 85 | -40 to 85 | -40 to 85 | -40 to 105 | -40 to 105 | -40 to 105 | -40 to 85 | -40 to 85 | |
| Ports | 2 | 2 | 2 | 1 | 1 | ||||||
| Adjustable Current Limit(Min)(A) | 1 | 1 | 1 | 2.5 | 2.5 | ||||||
| 5V rDS(on)(Typ)(mOhm) | 140 | 95 | 95 | ||||||||
| 3V rDS(on)(Typ)(mOhm) | 60 | 85 | 85 | 45 | 45 | ||||||

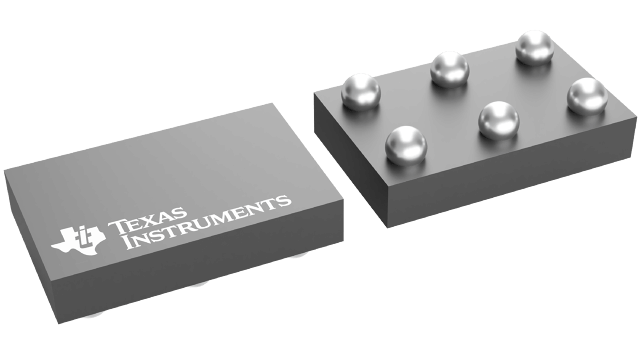

| Package Group | HTSSOP,SSOP | HTSSOP,SSOP | HTSSOP,SSOP | HTSSOP,QFN,TSSOP | HTSSOP,QFN,TSSOP | SOT-23 | SOT-23 | DSBGA | SOT-23,UQFN | WSON | |
| Special Features | Curr/Temp Protection,Over Current Reporting,Supports 12V,Supports VPP | Curr/Temp Protection,Over Current Reporting,Supports 12V,Supports VPP | Curr/Temp Protection,Over Current Reporting,Supports 12V,Supports VPP | Curr/Temp Protection,Over Current Reporting,Over Temp Reporting | Curr/Temp Protection,Over Current Reporting,Over Temp Reporting | Adjustable Rise Time,Quick Output Discharge | Adjustable Rise Time,Quick Output Discharge | Reverse Current Protection | Quick Output Discharge | Quick Output Discharge | |
| Approx. Price (US$) | 2.87 | 1ku | 1.79 | 1ku | 2.58 | 1ku | 1.10 | 1ku | 1.10 | 1ku | 0.24 | 1ku | 0.24 | 1ku | 0.25 | 1ku | 0.25 | 1ku | 0.51 | 1ku | |
| Package Size | mm2 | mm2 | mm2 | mm2 | mm2 | mm2 | mm2 | mm2 | mm2 | mm2 | |
| Interface | Serial | Serial | Serial | Parallel | Parallel | ||||||
| Shutdown Current (ISD)(Typ)(uA) | 0.5 | 0.5 | 0.5 | 2 | 1.1 | ||||||
| Ron @1.8V(Typ)(mOhm) | 55 | 55 | 9.2 | 737 | 4.4 | ||||||
| Output Rise Time @ 1.8V(Typ)(us) | Adjustable | Adjustable | Adjustable | 1001 | |||||||
| Rating | Automotive | Automotive | Catalog | Catalog | Catalog | ||||||
| Vin(Max)(V) | 5.5 | 5.5 | 3.6 | 5.5 | 5.5 | ||||||
| Vin(Min)(V) | 1 | 1 | 0.65 | 1.62 | 0.8 | ||||||
| Quiescent Current (Iq)(Typ)(uA) | 8.7 | 8.7 | 29 | 0.35 | 20.4 | ||||||
| Ron(Typ)(mOhm) | 52 | 52 | 9.2 | 435 | 4.4 | ||||||
| Quiescent Current (Iq)(Max)(uA) | 17 | 17 | 84 | 0.35 | 26 | ||||||
| Number of Channels(#) | 1 | 1 | 1 | 2 | 1 | ||||||
| Ron @4.5V(Typ)(mOhm) | 52 | 52 | 4.4 | ||||||||
| Imax(A) | 2 | 2 | 3 | 0.5 | 10 | ||||||
| Rise Time(Typ)(us) | Adjustable | Adjustable | 97 | Adjustable | 1991 | ||||||
| HBM ESD(kV) | 1 | 2 | 2 |
