| Price | $1.42 | $6.17 | $2.06 | $3.80 | $3.60 | ||||||
| RoHS | Compliant | Yes | Compliant | Compliant | Yes | Compliant | Compliant | Compliant | Compliant | Compliant | |
| Lead Status | No | Yes | No | No | Yes | No | No | No | No | No | |
| Vin(Min)(V) | 4.5 | 4.5 | 4.5 | 4.5 | 5.5 | 4.5 | 4.5 | 4.5 | 4.5 | 3 | |
| Operating Temperature Range(C) | -40 to 85 | -40 to 85 | -40 to 85 | -40 to 85 | -55 to 125 | -40 to 85 | -40 to 85 | -40 to 125 | -40 to 125 | -40 to 85 | |
| Control Mode | Current Mode | D-CAP2 | D-CAP2 | D-CAP,D-CAP2 | D-CAP2 | D-CAP2 | Current Mode | D-CAP2 | Voltage Mode | ||
| Rating | Catalog | Catalog | Catalog | Catalog | HiRel Enhanced Product | Catalog | Catalog | Catalog | Catalog | Catalog | |
| Vout(Min)(V) | 0.8 | 0.76 | 0.76 | 0.6 | 1.22 | 0.76 | 0.76 | 0.8 | 0.76 | ||
| Special Features | Enable,Light Load Efficiency,Synchronous Rectification,UVLO Adjustable | Enable,Light Load Efficiency,Power Good,Synchronous Rectification | Enable,Light Load Efficiency,Power Good,Synchronous Rectification | Adjustable Current Limit,Dynamic Voltage Scaling,Enable,PMBus,Power Good,Pre-Bias Start-Up,Remote Sense,Synchronous Rectification,UVLO Adjustable,Voltage Margining | Enable,Synchronous Rectification | Enable,Synchronous Rectification | Enable,Frequency Synchronization,Light Load Efficiency,UVLO Adjustable | Enable,Synchronous Rectification | Shutdown Pin for S3 | ||
| Duty Cycle(Max)(%) | 90 | 90 | 90 | 80 | 89 | 85 | 85 | 98 | 85 | ||
| Switching Frequency(Min)(kHz) | 50 | 700 | 700 | 250 | 500 | 650 | 650 | 100 | 650 | ||
| Switching Frequency(Max)(kHz) | 1500 | 700 | 700 | 1000 | 500 | 650 | 650 | 2500 | 650 | ||
| Type | Converter | Converter | Converter | Converter | Converter | Converter | Converter | Converter | Converter | ||
| Iq(Typ)(mA) | 0.6 | 0.85 | 0.85 | 8 | 3 | 0.9 | 0.9 | 0.146 | 0.95 | 11 | |
| Regulated Outputs(#) | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||||
| Vin(Max)(V) | 28 | 18 | 18 | 18 | 36 | 18 | 18 | 60 | 18 | 6 | |
| Approx. Price (US$) | 0.90 | 1ku | 0.80 | 1ku | 0.80 | 1ku | 3.40 | 1ku | 0.95 | 1ku | 0.95 | 1ku | 2.10 | 1ku | 1.05 | 1ku | 3.20 | 1ku | ||
| Vout(Max)(V) | 25 | 5.5 | 5.5 | 5.5 | 31 | 6 | 6 | 58.8 | 5.5 | ||

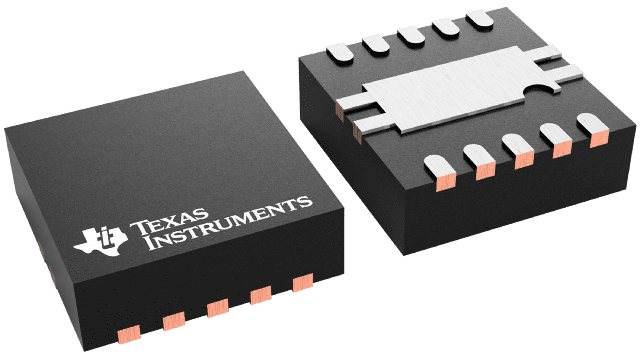

| Package Group | VSON | HTSSOP,QFN | HTSSOP,QFN | LQFN-CLIP | SO PowerPAD | SO PowerPAD | SO PowerPAD | SO PowerPAD | SO PowerPAD | HTSSOP | |
| Iout(Max)(A) | 3 | 4 | 4 | 20 | 5 | 5 | 5 | 5 | 6 | ||
| DDR Memory Type | DDR,DDR2,DDR3 | ||||||||||
| Vin Bias(Max)(V) | 6 | ||||||||||
| Regulator Type | Step-Down Converter | ||||||||||
| Vin Bias(Min)(V) | 3 | ||||||||||
| Iout VTT(Max)(A) | 6 | ||||||||||
| Vout VTT(Min)(V) | 0.2 | ||||||||||
| Output | VTT | ||||||||||
| Package Size | mm2 |
