CC1352P1F3RGZR

Texas Instruments
SimpleLink Multiband CC1352R Wireless MCU With Integrated Power Amplifier 48-VQFN -40 to 85
Distributor SKU Stock MOQ 1 10 50 100 1,000 10,000
Texas Instruments CC1352P1F3RGZR 4088 1 $9.54 $8.58 $8.02 $7.19 $4.95 $4.95
Digi-Key 296-CC1352P1F3RGZRCT-ND 0 $10.98 $10.06 $9.15 $8.23 $6.17 $6.17
Mouser Electronics 595-CC1352P1F3RGZR 5865 1 $10.35 $9.36 $8.65 $7.75 $5.87 $5.66
Arrow Asia CC1352P1F3RGZR 5000 2500 $5.64
Arrow North American Components CC1352P1F3RGZR 0 2500 $5.66
AVNET Europe CC1352P1F3RGZR 0 2500 * $6.71
AVNET Express CC1352P1F3RGZR 0 2500 $5.82

CC1352P1F3RGZT

Texas Instruments

The CC1352P device is a multiprotocol Sub-1 and 2.4-GHz wireless MCU targeting Wireless M-Bus, IEEE 802.15.4g, IPv6-enabled smart objects (6LoWPAN), Thread, Zigbee®, KNX RF, Wi-SUN®, Bluetooth® 5 low energy, and proprietary systems. The device contains a +20-dBm integrated high-power amplifier with best-in-class efficiency for long-range applications.

The CC1352P device is a member of the CC26xx and CC13xx family of cost-effective, ultra-low power, 2.4-GHz and Sub-1 GHz RF devices. Very low active RF and microcontroller (MCU) current, in addition to sub-µA sleep current with up to 80KB of RAM retention, provide excellent battery lifetime and allow operation on small coin-cell batteries and in energy-harvesting applications.

The CC1352P device combines a flexible, very low-power RF transceiver with a powerful 48-MHz Arm® Cortex®-M4F CPU in a platform supporting multiple physical layers and RF standards. A dedicated Radio Controller (Arm® Cortex®-M0) handles low-level RF protocol commands that are stored in ROM or RAM, thus ensuring ultra-low power and great flexibility. The low power consumption of the CC1352P device does not come at the expense of RF performance; the CC1352P device has excellent sensitivity and robustness (selectivity and blocking) performance.

The CC1352P device is a highly integrated, true single-chip solution incorporating a complete RF system and an on-chip DC/DC converter.

Sensors can be handled in a very low-power manner by a programmable, autonomous ultra-low power Sensor Controller CPU with 4KB of SRAM for program and data. The Sensor Controller, with its fast wake-up and ultra-low-power 2-MHz mode is designed for sampling, buffering, and processing both analog and digital sensor data; thus the MCU system can maximize sleep time and reduce active power.

The CC1352P device is part of the SimpleLink™ microcontroller (MCU) platform, which consists of Wi-Fi®, Bluetooth® low energy, Thread, Zigbee, Sub-1 GHz MCUs, and host MCUs, which all share a common, easy-to-use development environment with a single core software development kit (SDK) and rich tool set. A one-time integration of the SimpleLink platform enables you to add any combination of the portfolio’s devices into your design, allowing 100 percent code reuse when your design requirements change.

Features:

  • Microcontroller
    • Powerful Arm®Cortex®-M4F Processor
    • EEMBC CoreMark® Score: 148
    • Clock Speed Up to 48 MHz
    • 352KB of In-System Programmable Flash
    • 256KB of ROM for Protocols and Firmware
    • 8KB of Cache SRAM (Available as General-Purpose RAM)
    • 80KB of Ultra-Low Leakage SRAM
    • 2-Pin cJTAG and JTAG Debugging
    • Supports Over-the-Air Upgrade (OTA)
  • Ultra-Low Power Sensor Controller With 4KB of SRAM
    • Sample, Store, and Process Sensor Data
    • Operation Independent From System CPU
    • Fast Wake-Up for Low-Power Operation
  • TI-RTOS, Drivers, Bootloader, Bluetooth® 5 low energy Controller, and IEEE 802.15.4 MAC in ROM for Optimized Application Size
  • RoHS-Compliant Package
    • 7-mm × 7-mm RGZ VQFN48 (26 GPIOs)
  • Peripherals
    • Digital Peripherals Can be Routed to Any GPIO
    • 4× 32-Bit or 8× 16-Bit General-Purpose Timers
    • 12-Bit ADC, 200 kSamples/s, 8 Channels
    • 2× Comparators With Internal Reference DAC
      (1× Continuous Time, 1× Ultra-Low Power)
    • Programmable Current Source
    • 2× UART
    • 2× SSI (SPI, MICROWIRE, TI)
    • I2C
    • I2S
    • Real-Time Clock (RTC)
    • AES 128- and 256-bit Crypto Accelerator
    • ECC and RSA Public Key Hardware Accelerator
    • SHA2 Accelerator (Full Suite Up to SHA-512)
    • True Random Number Generator (TRNG)
    • Capacitive Sensing, Up to 8 Channels
    • Integrated Temperature and Battery Monitor
  • External System
    • On-Chip Buck DC/DC Converter
  • Low Power
    • Wide Supply Voltage Range: 1.8 V to 3.8 V
    • Active-Mode RX: 5.8 mA (868 MHz)
    • Active-Mode TX at +20 dBm: 65 mA (868 MHz)
    • Active-Mode MCU 48 MHz (CoreMark):
      2.82 mA (59 µA/MHz)
    • Sensor Controller 16-Hz Flow Metering:
      1.7 µA
    • Sensor Controller 100-Hz Comp A Reading:
      1.5 µA
    • Sensor Controller, 1-Hz ADC Sampling:
      1 µA
    • Standby: 0.83 µA (RTC on, 80KB RAM and CPU Retention)
    • Shutdown: 125 nA (Wakeup on External Events)
  • Radio Section
    • Dual-Band Sub-1 GHz and 2.4-GHz RF Transceiver Compatible With Bluetooth 5 low energy and IEEE 802.15.4 PHY and MAC
    • Excellent Receiver Sensitivity:
      –122 dBm for SimpleLink Long Range,
      –110 dBm at 50 kbps, –103 dBm for Bluetooth 5 low energy Coded
    • Excellent Selectivity: 48 dB at 50 kbps
    • Programmable Output Power Up to +20 dBm
    • Suitable for Systems Targeting Compliance With Worldwide Radio Frequency Regulations
      • ETSI EN 300 220, EN 300 328, EN 303 131, EN 303 204 (Europe)
      • EN 300 440 Class 2 (Europe)
      • FCC CFR47 Part 15 (US)
      • ARIB STD-T108 and STD-T66 (Japan)
    • Wide Standard Support
  • Development Tools and Software

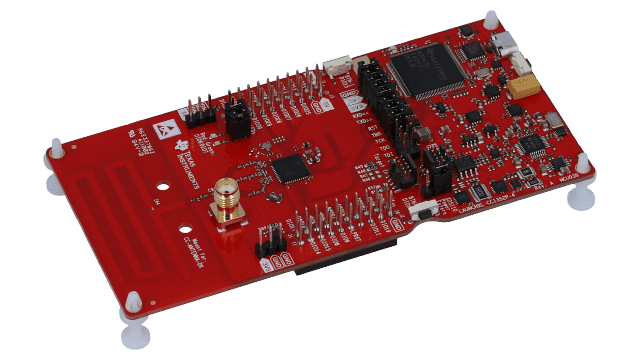

    • LAUNCHXL-CC1352P1, P1-2, and P1-4 Development Kits
    • SimpleLink CC13X2 Software Development Kit
    • SmartRF™ Software Studio for Simple Radio Configuration
    • Sensor Controller Studio for Building Low-Power Sensing Applications
Distributor SKU Stock MOQ 1 10 50 100 1,000 10,000
Digi-Key 296-53598-1-ND 163 $10.99 $9.94 $9.16 $8.37 $7.23 $6.73
Mouser Electronics 595-CC1352P1F3RGZT 250 1 $11.84 $10.70 $9.90 $8.85 $6.72 $6.46
Arrow North American Components CC1352P1F3RGZT 0 250 $8.22 $7.99
AVNET Europe CC1352P1F3RGZT 0 250 * $7.67 * $5.75
AVNET Express CC1352P1F3RGZT 0 250 $6.65 $6.25

XCC1352P1F3RGZR

Texas Instruments
SimpleLink Multiband CC1352P Wireless MCU With Integrated Power Amplifier 48-VQFN -40 to 85
Distributor SKU Stock MOQ 1 10 50 100 1,000 10,000
Texas Instruments XCC1352P1F3RGZR 1806 1 $9.54 $8.58 $8.02 $7.19 $4.95 $4.95
