| Price | |||||||||||
| RoHS | Y | Y | Yes | Compliant | Compliant | Yes | Yes | Yes | Compliant | Yes | |
| Lead Status | Y | Y | Yes | No | No | Yes | Yes | Yes | Yes | Yes | |
| Package size | mm2 | mm2 | |||||||||
| Step-up DC/DC converter | 0 | 0 | |||||||||
| Iout(Max)(A) | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |
| Rating | Catalog | Catalog | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive | Automotive | |
| Step-down DC/DC controller | 0 | 0 | |||||||||
| Regulated outputs(#) | 4 | 4 | |||||||||

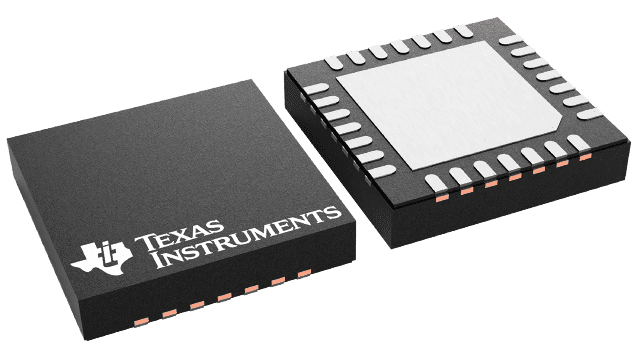

| Package Group | VQFN|28 | VQFN|28 | VQFN | VQFN | VQFN|28 | VQFN|28 | VQFN|28 | VQFN|28 | VQFN|28 | VQFN | |
| Approx. price(US$) | 1.44 | 1ku | 1.44 | 1ku | |||||||||
| Processor name | AM570x | AM570x | |||||||||
| Vin(Max)(V) | 5.5 | 5.5 | 5.5 | 5.5 | 5.5 | 5.5 | 5.5 | 5.5 | 5.5 | 5.5 | |
| Vin(Min)(V) | 2.8 | 2.8 | 2.8 | 2.8 | 2.8 | 2.8 | 2.8 | 2.8 | 2.8 | 2.8 | |
| Processor supplier | Texas Instruments | Texas Instruments | |||||||||
| LDO | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | |||
| Features | Enable Pin,I2C Control,Power Good,Power Sequencing,Spread-Spectrum Clock (SSC) Generation,Thermal Shutdown,UVLO Adjustable | Enable Pin,I2C Control,Power Good,Power Sequencing,Spread-Spectrum Clock (SSC) Generation,Thermal Shutdown,UVLO Adjustable | Enable Pin,I2C Control,Power Good,Power Sequencing,Spread-Spectrum Clock (SSC) Generation,Thermal Shutdown,UVLO Adjustable | Enable Pin,I2C Control,Power Good,Power Sequencing,Spread-Spectrum Clock (SSC) Generation,Thermal Shutdown,UVLO Adjustable | Enable Pin,I2C Control,Power Good,Power Sequencing,Spread-Spectrum Clock (SSC) Generation,Thermal Shutdown,UVLO Adjustable | Enable Pin,I2C Control,Power Good,Power Sequencing,Spread-Spectrum Clock (SSC) Generation,Thermal Shutdown,UVLO Adjustable | Enable Pin,I2C Control,Power Good,Power Sequencing,Spread-Spectrum Clock (SSC) Generation,Thermal Shutdown,UVLO Adjustable | Enable Pin,I2C Control,Power Good,Power Sequencing,Spread-Spectrum Clock (SSC) Generation,Thermal Shutdown,UVLO Adjustable | |||
| Step-up DC/DC controller | 0 | 0 | |||||||||
| Operating temperature range(C) | -40 to 125 | -40 to 125 | |||||||||
| Step-down DC/DC converter | 2 | 2 | |||||||||
| Switching frequency(Max)(kHz) | 2200 | ||||||||||
| Configurability | Factory programmable,Software configurable | ||||||||||
| Switching frequency(Typ)(kHz) | 2000 | ||||||||||
| Iq(Typ)(mA) | 0.009 | ||||||||||
| Operating Temperature Range(C) | -40 to 125 | -40 to 125 | -40 to 125 | -40 to 125 | -40 to 125 | -40 to 125 | -40 to 125 | -40 to 125 | |||
| Approx. Price (US$) | 1.69 | 1ku | 1.69 | 1ku | 1.69 | 1ku | 1.69 | 1ku | 1.69 | 1ku | 1.69 | 1ku | 1.69 | 1ku | 1.69 | 1ku | |||
| Vout(Min)(V) | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 | |||||
| Special Features | Enable Pin,I2C Control,Power Good,Power Sequencing,Spread-Spectrum Clock (SSC) Generation,Thermal Shutdown,UVLO Adjustable | Enable Pin,I2C Control,Power Good,Power Sequencing,Spread-Spectrum Clock (SSC) Generation,Thermal Shutdown,UVLO Adjustable | |||||||||
| Regulated Outputs(#) | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | |||
| Processor Name | RCAR-E2 | DRA71x, DRA79x | DRA71x,DRA79x | TDA3x | TDA3x | TDA3x | TDA3x | RCAR-E2 | |||
| Processor Supplier | Renesas | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments | Renesas | |||
| Vout(Max)(V) | 3.36 | 3.36 | 3.36 | 3.36 | 3.36 | 3.36 | |||||
| Package Size | mm2 | mm2 | mm2 | mm2 | mm2 | mm2 | mm2 | mm2 | |||
| Switching Frequency(Typ)(kHz) | 2000 | 2000 | 2000 | 2000 | 2000 | 2000 | |||||
| Step-Down DC/DC Converter | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
