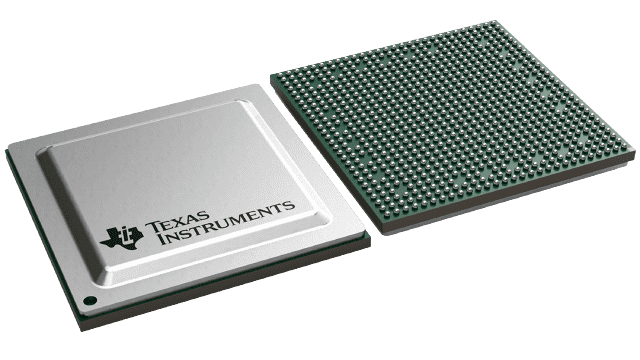

AM5718AABCXEA
Texas Instruments
Category: Microcontrollers
AM571x Sitara Processors Silicon Revision 2.0
$42.34 - $66.44
Distributors
Currency:
| Distributor | SKU | Stock | MOQ | 1 | 10 | 50 | 100 | 1000 | 10000 | Purchase | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 |
DigiKey | 296-47974-ND | 1658 | 1 | $73.02 | $60.61 | $60.61 | $55.21 | $53.75 | $53.75 | Buy |
|
 |
Arrow Asia | AM5718AABCXEA | 60 | 60 | $49.43 | $49.43 | $43.62 | Buy | |||
|
 |
Arrow North American Components | AM5718AABCXEA | 0 | 60 | $0.00 | $0.00 | $0.00 | $54.10 | $51.63 | $51.45 | Buy |
|
 |
AVNET Europe | AM5718AABCXEA | 25 | 60 | * $49.67 | * $44.51 | * $44.51 | Buy | |||
|
|
AVNET Express | AM5718AABCXEA | 60 | $44.74 | $33.86 | $33.86 | Buy | ||||
|
|
Mouser Electronics | 595-AM5718AABCXEA | 653 | 1 | $51.41 | $48.07 | $47.94 | $41.51 | $40.91 | $40.91 | Buy |
|
|
Newark | AM5718AABCXEA | 60 | $66.44 | $66.44 | $61.72 | $59.69 | $57.67 | $57.67 | Buy | |
|
|
Perceptive | AM5718AABCXEA | 65830 | 1+ | Buy | ||||||
|
|
Texas Instruments | AM5718AABCXEA | 765 | 1 | $47.03 | $47.03 | $47.03 | $41.81 | $30.74 | $30.74 | Buy |
|
|
Verical Marketplace | AM5718AABCXEA | 600 | 60 | $35.67 | $35.67 | $34.66 | Buy | |||
|
|
Win Source | AM5718AABCXEA | 1 | 1 | Buy |
Parts in family
Technical Specifications
| Lead Free Status | No |
| ROHS Compliance | Compliant |
| ARM CPU | 1 ARM Cortex-A15 |
| ARM MHz (Max.) | 1500 |
| ARM MIPS(Max.) | 5250 |
| Application | Communications Equipment,Enterprise Systems,Industrial,Personal Electronics |
| Approx. Price (US$) | 30.05 | 1ku |
| CAN(#) | 2 |
| CSI-2 | 2 |
| Co-Processor(s) | 2 ARM Cortex-M4,4 PRU-ICSS |
| DMA(Ch) | 64-Ch EDMA |
| DRAM | DDR3(L) |
| DSP | 1 C66x |
| DSP MHz (Max.) | 750 |
| Display Options | 1 HDMI out,3 LCD out |
| EMAC | 10/100/1000,2-Port 1Gb Switch |
| General Purpose Memory | 1 16-bit (GPMC, NAND flash,NOR Flash,SRAM) |
| Graphics Acceleration | 1 3D,1 2D |
| HDMI | 1 |
| I2C | 5 |
| IO Supply(V) | 1.8,3.3 |
| Industrial Protocols | 1588,EtherCAT,EtherNet/IP,POWERLINK,PROFIBUS,PROFINET RT/IRT,SERCOS III |
| LCD | 3 |
| MMC/SD | 4 |
| McASP | 8 |
| On-Chip L1 Cache | 32 KB (ARM Cortex-A15),32 KB (C66x) |
| On-Chip L2 Cache | 1 MB w/ECC (ARM Cortex-A15),288 KB (C66x) |
| Operating Systems | Android,Integrity,Linux,Nucleus,Neutrino,TI-RTOS,VxWorks,Windows Embedded CE |
| Operating Temperature Range(C) | -40 to 105,0 to 90 |
| Other Hardware Acceleration | Crypto Accelerator |
| Other On-Chip Memory | 512 KB w/ECC |
| PCI/PCIe | 2 PCIe |
| PWM(Ch) | 3 |
| Package Group | FCBGA |
| QSPI | 1 |
| RTC | 1 |
| Rating | Catalog |
| SATA | 1 |
| SPI | 4 |
| Serial I/O | CAN,I2C,SPI,UART,USB |
| UART(SCI) | 10 |
| USB | 2 |
| USB 2.0 | 1 |
| USB 3.0 | 1 |
| Video Port (Configurable) | 6+ |
| Video Resolution/Frame Rate | 1080p60 |
| eCAP | 3 |
| eQEP | 3 |
