DS1803E-010+
Analog Devices Inc.
Category: Integrated Circuits (ICs)

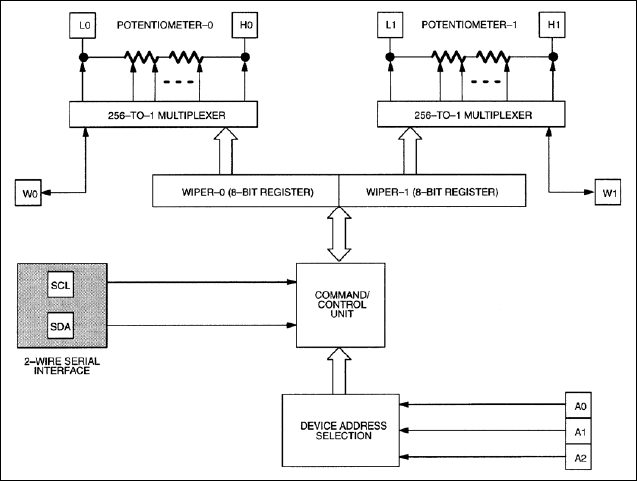

The DS1803 addressable dual digital potentiometer features two independently controlled 256-positionpotentiometers. Device control is achieved through a 2-wire serial interface. Three address pins allow upto 8 DS1803's to share the same 2-wire interface. The exact wiper position of each potentiometer can bewritten or read. The DS1803 is available in a 16-pin DIP, 16-pin SO, and 14-pin TSSOP package. Thedevice is available in three standard resistance values: 10kΩ, 50kΩ, and 100kΩ and is specified over theindustrial temperature range.
* $8.87 - * $12.38
Distributors
Currency:
| Distributor | SKU | Stock | MOQ | 1 | 10 | 50 | 100 | 1000 | 10000 | Purchase | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 |
element14 APAC | DS1803E-010+ | 183 | 1 | * $12.38 | * $9.64 | * $9.64 | * $8.22 | * $7.79 | * $7.79 | Buy |
|
 |
Farnell | DS1803E-010+ | 87 | 1 | * $8.87 | * $6.90 | * $6.90 | * $5.70 | * $5.48 | * $5.48 | Buy |
|
 |
Mouser Electronics | 700-DS1803E-010 | 2050 | 1 | $9.08 | $6.36 | $5.97 | $5.34 | $5.34 | $5.34 | Buy |
Technical Specifications
| ROHS Compliance | Compliant |
