LMC8101TP/NOPB
Texas Instruments
Category: Amplifiers and Comparators

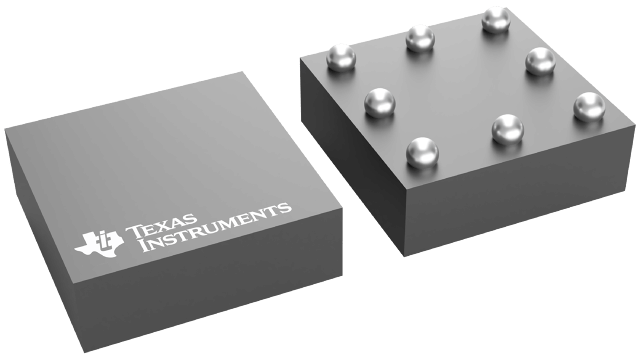

LMC8101 Rail-to-Rail Input and Output, 2.7V Op Amp in micro SMD package with Shutdown
$0.74 - $2.32
Distributors
Currency:
| Distributor | SKU | Stock | MOQ | 1 | 10 | 50 | 100 | 1000 | 10000 | Purchase | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 |
DigiKey | LMC8101TP/NOPBDKR-ND | 570 | $1.78 | $1.31 | $1.19 | $1.06 | $0.98 | $0.89 | Buy | |
|
 |
Arrow North American Components | LMC8101TP/NOPB | 0 | 250 | $0.00 | $0.00 | $0.00 | $0.00 | $0.00 | $0.61 | Buy |
|
 |
AVNET Europe | LMC8101TP/NOPB | 1250 | 250 | * $0.79 | * $0.73 | Buy | ||||
|
|
AVNET Express | LMC8101TP/NOPB | 1 | $0.71 | $0.68 | Buy | |||||
|
|
Mouser Electronics | 926-LMC8101TP/NOPB | 0 | 1 | $2.32 | $1.57 | $1.57 | $1.28 | $0.92 | $0.83 | Buy |
|
|
Texas Instruments | LMC8101TP/NOPB | 29838 | 1 | $1.28 | $1.28 | $1.28 | $1.06 | $0.57 | $0.57 | Buy |
|
|
Verical Marketplace | LMC8101TP/NOPB | 10000 | 250 | $0.69 | $0.61 | Buy | ||||
|
|
Win Source | LMC8101TP/NOPB | 3300 | 60 | Buy |
Parts in family
Technical Specifications
| Lead Free Status | Yes |
| ROHS Compliance | Yes |
| Additional Features | Shutdown |
| Approx. Price (US$) | 0.46 | 1ku |
| Architecture | CMOS |
| CMRR(Min)(dB) | 64 |
| CMRR(Typ)(dB) | 87 |
| GBW(Typ)(MHz) | 1 |
| Input Bias Current(Max)(pA) | 64 |
| Iq per channel(Max)(mA) | 1 |
| Iq per channel(Typ)(mA) | 0.7 |
| Number of Channels(#) | 1 |
| Offset Drift(Typ)(uV/C) | 4 |
| Operating Temperature Range(C) | -40 to 85 |
| Output Current(Typ)(mA) | 49 |
| Package Group | DSBGA,VSSOP |
| Package Size | mm2 |
| Rail-to-Rail | In,Out |
| Rating | Catalog |
| Slew Rate(Typ)(V/us) | 1 |
| Total Supply Voltage(Max)(+5V=5, +/-5V=10) | 10 |
| Total Supply Voltage(Min)(+5V=5, +/-5V=10) | 2.7 |
| Vn at 1kHz(Typ)(nV/rtHz) | 36 |
| Vos (Offset Voltage @ 25C)(Max)(mV) | 5 |
