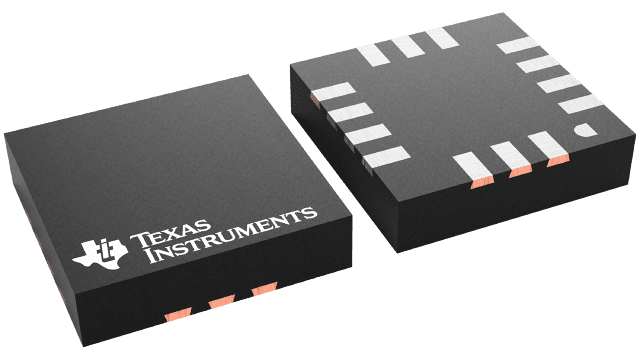

LMH6554LE/NOPB
Texas Instruments
Category: Amplifiers and Comparators
SP Amp DIFF AMP Single ±2.625V/5.25V 14-Pin LLP T/R
$3.41 - $9.05
Distributors
Currency:
| Distributor | SKU | Stock | MOQ | 1 | 10 | 50 | 100 | 1000 | 10000 | Purchase | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 |
DigiKey | 296-LMH6554LE/NOPBDKR-ND | 663 | $9.05 | $7.03 | $6.53 | $5.98 | $4.94 | $3.59 | Buy | |
|
|
Ameya360 | LMH6554LE/NOPB | 4000 | Buy | |||||||
|
 |
Arrow Asia | LMH6554LE/NOPB | 2000 | 1000 | $3.76 | $3.61 | Buy | ||||
|
 |
Arrow North American Components | LMH6554LE/NOPB | 0 | 1000 | $3.57 | $3.57 | $3.57 | $3.57 | $3.89 | $3.86 | Buy |
|
 |
AVNET Asia Pacific | LMH6554LE/NOPB | 1000 | $5.44 | Buy | ||||||
|
 |
AVNET Europe | LMH6554LE/NOPB | 2000 | 1000 | * $6.00 | * $4.68 | Buy | ||||
|
|
AVNET Express | LMH6554LE/NOPB | 3000 | 1000 | $3.41 | Buy | |||||
|
|
Mouser Electronics | 926-LMH6554LE/NOPB | 692 | 1 | $9.05 | $7.04 | $6.54 | $5.98 | $5.14 | $5.14 | Buy |
|
|
Texas Instruments | LMH6554LE/NOPB | 117879 | 1 | $7.27 | $7.27 | $7.27 | $5.92 | $3.95 | $3.95 | Buy |
|
|
Verical Marketplace | LMH6554LE/NOPB | 10000 | 1000 | $4.20 | $3.79 | Buy | ||||
|
|
Win Source | LMH6554LE/NOPB | 11180 | 5 | Buy |
Parts in family
Technical Specifications
| Lead Free Status | No |
| ROHS Compliance | Compliant |
| 2nd Harmonic(dBc) | 68 |
| 3rd Harmonic(dBc) | 70 |
| @ MHz | 250 |
| Acl, min spec gain(V/V) | 1 |
| Additional Features | Shutdown |
| Approx. Price (US$) | 3.40 | 1ku |
| Architecture | Bipolar,Current FB,Fully Differential |
| BW @ Acl(MHz) | 2800 |
| CMRR(Min)(dB) | 73 |
| CMRR(Typ)(dB) | 83 |
| GBW(Typ)(MHz) | 2500 |
| Input Bias Current(Max)(pA) | 8000000 |
| Iq per channel(Max)(mA) | 52 |
| Iq per channel(Typ)(mA) | 52 |
| Number of Channels(#) | 1 |
| Offset Drift(Typ)(uV/C) | 0 |
| Operating Temperature Range(C) | -40 to 125 |
| Output Current(Typ)(mA) | 150 |
| Package Group | UQFN |
| Package Size | mm2 |
| Rail-to-Rail | No |
| Rating | Catalog |
| Slew Rate(Typ)(V/us) | 6200 |
| Total Supply Voltage(Max)(+5V=5, +/-5V=10) | 5.25 |
| Total Supply Voltage(Min)(+5V=5, +/-5V=10) | 4.7 |
| Vn at Flatband(Typ)(nV/rtHz) | 0.9 |
| Vos (Offset Voltage @ 25C)(Max)(mV) | 3 |
