Analog Devices Inc.

Category: LEDs

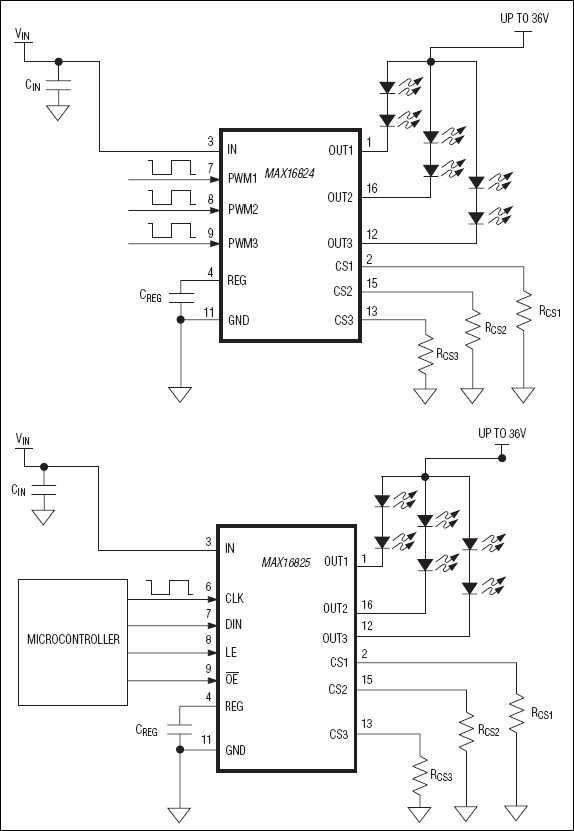

The MAX16824/MAX16825 three-channel LED drivers operate over a 6.5V to 28V input voltage range. These devices provide three open-drain constant-current-sinking outputs that are rated to 36V and deliver up to 150mA of current to each string of high-brightness LEDs (HB LEDs). The current at each output is programmable by means of an external current-sense resistor. The MAX16824 features three PWM inputs that control the duty cycle of the output current, allowing a wide LED dimming range to be implemented. The PWM inputs also function as on/off control for each corresponding output. The MAX16825 offers a 4-wire serial interface, a 3-bit shift register, and a 3-bit transparent latch. The serial interface allows a microcontroller to configure the output channels using four inputs (DIN, CLK, LE, active-low OE) and a data output (DOUT). DOUT allows multiple drivers to be cascaded and operated together.The MAX16824/MAX16825's on-board pass elements minimize the need for external components, while at the same time, providing ±5% LED current accuracy. Additional features include a +5V (±5%) regulated output with 4mA output current capability and thermal protection.The MAX16824/MAX16825 are available in a thermally enhanced 16-pin TSSOP-EP package and specified over the -40°C to +125°C temperature range.ApplicationsArchitectural and Decorative LightingAutomotive LightingIndoor and Outdoor LED Video DisplaysIndustrial LightingLCD Display BacklightingMood Lighting

* $3.08 - $2.88
