MAX31723MUA+T
Analog Devices Inc.
Category: Temperature Sensors

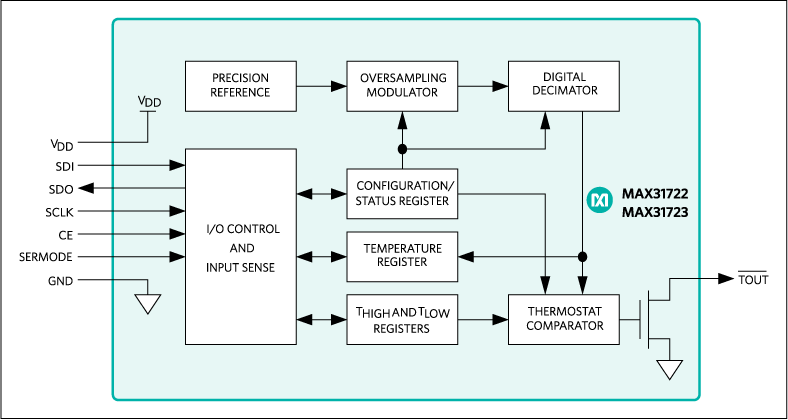

The MAX31722/MAX31723 digital thermometers and thermostats with an SPI/3-wire interface provide temperature readings that indicate the device temperature. No additional components are required; the devices are truly temperature-to-digital converters. Temperature readings are communicated from the device over an SPI interface or a 3-wire serial interface. The choice of interface is selectable by the user. For applications that require greater temperature resolution, the user can adjust the readout resolution from 9 to 12 bits. This is particularly useful in applications where thermal runaway conditions must be detected quickly. The thermostat has a dedicated open-drain output (active-low TOUT). Two thermostat operating modes, comparator and interrupt, control thermostat operation based on user-defined nonvolatile trip points (THIGH and TLOW). Both devices feature a 1.7V to 3.7V supply rail.ApplicationsAny Thermally Sensitive SystemsCellular Base StationsIndustrial EquipmentNetworking Equipment
* $4.77 - * $5.50
Distributors
| Distributor | SKU | Stock | MOQ | 1 | 10 | 50 | 100 | 1000 | 10000 | Purchase | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 |
element14 APAC | MAX31723MUA+T | 1642 | 1 | * $5.50 | * $4.73 | * $4.48 | * $4.16 | * $4.00 | * $4.00 | Buy |
|
 |
Farnell | MAX31723MUA+T | 1640 | 1 | * $4.77 | * $4.23 | * $4.07 | * $3.80 | * $3.71 | * $3.71 | Buy |
|
 |
Mouser Electronics | 700-MAX31723MUA+T | 191 | 1 | $4.46 | $4.23 | $3.79 | $3.43 | $3.18 | $3.05 | Buy |
|
 |
Newark | MAX31723MUA+T | 144 | 1 | $4.32 | $3.96 | $3.61 | $3.47 | $3.47 | $3.47 | Buy |
Technical Specifications
| ROHS Compliance | Compliant |
