Analog Devices Inc.

Category: Amplifiers and Comparators

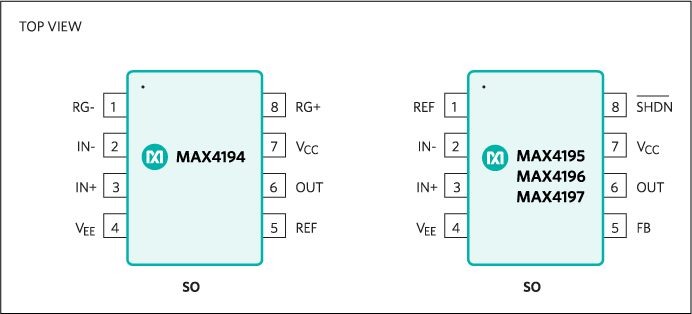

The MAX4194 is a variable-gain precision instrumentation amplifier that combines Rail-to-Rail; single-supply operation, outstanding precision specifications, and a high gain bandwidth. This amplifier is also offered in three fixed-gain versions: the MAX4195 (G = +1V/V), the MAX4196 (G = +10V/V), and the MAX4197 (G = +100V/V). The fixed-gain instrumentation amplifiers feature a shutdown function that reduces the quiescent current to 8µA. A traditional three operational amplifier configuration is used to achieve maximum DC precision.The MAX4194–MAX4197 have rail-to-rail outputs and inputs that can swing to 200mV below the negative rail and to within 1.1V of the positive rail. All parts draw only 93µA and operate from a single +2.7V to +7.5V supply or from dual ±1.35V to ±3.75V supplies. These amplifiers are offered in 8-pin SO packages and are specified for the extended temperature range (-40°C to +85°C).See the MAX4198/MAX4199 data sheet for single-supply, precision differential amplifiers.Applications4mA to 20mA Loop TransmittersBattery-Powered/Portable EquipmentBridge AmplifierData Acquisition SystemsMedical EquipmentThermocouple AmplifiersTransducer Interface

* $4.84 - $4.61
