MAX4453EKA+T
Analog Devices Inc.
Category: Amplifiers and Comparators

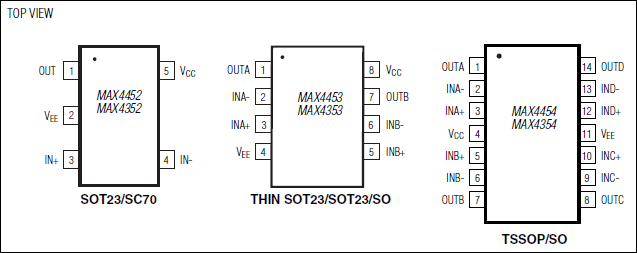

The MAX4452/MAX4352 single, MAX4453/MAX4353 dual, and MAX4454/MAX4354 quad amplifiers combine high-speed performance with ultra-low power consumption. The MAX4452/MAX4453/MAX4454 are unity-gain stable and achieve a -3dB bandwidth of 200MHz, while the MAX4352/MAX4353/MAX4354 are compensated for a minimum closed-loop gain of +5V/V and achieve a 80MHz -3dB bandwidth. These devices consume only 620µA of supply current per amplifier.These amplifiers operate from a +2.7V to +5.25V single supply and feature rail-to-rail outputs. Along with an excellent speed/power ratio of 323MHz/mA, these devices feature a slew rate of 95V/µs and fast 20ns rise and fall times. These devices are ideal for low-power/low-voltage systems that require wide bandwidth such as cell phones and keyless entry systems.The MAX4452/MAX4352 are available in miniature 5-pin SC70 and SOT23 packages, while the MAX4453/MAX4353 are available in tiny 8-pin SOT23, thin SOT23, and SO packages. The MAX4454/MAX4354 are available in space-saving 14-pin TSSOP and SO packages.ApplicationsAudio SystemsBaseband ApplicationsBattery-Powered ApplicationsKeyless EntryPortable Communications
* $4.78 - $6.20
Distributors
| Distributor | SKU | Stock | MOQ | 1 | 10 | 50 | 100 | 1000 | 10000 | Purchase | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 |
element14 APAC | MAX4453EKA+T | 2156 | 100 | * $4.10 | * $3.49 | * $3.49 | Buy | |||
|
 |
Farnell | MAX4453EKA+T | 2156 | 10 | * $4.78 | * $4.25 | * $3.71 | * $3.20 | * $3.20 | Buy | |
|
 |
Mouser Electronics | 700-MAX4453EKAT | 4325 | 1 | $6.15 | $4.41 | $4.41 | $3.73 | $3.04 | $3.00 | Buy |
|
 |
Newark | MAX4453EKA+T | 35 | 1 | $6.20 | $5.36 | $4.70 | $4.41 | $2.86 | $2.86 | Buy |
Technical Specifications
| ROHS Compliance | Compliant |
