MAX6697UP9C+
Analog Devices Inc.
Category: Temperature Sensors

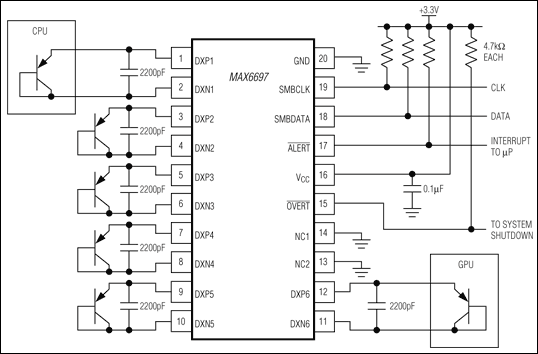

The MAX6697 precision multichannel temperature sensor monitors its own temperature and the temperatures of up to six external diode-connected transistors. All temperature channels have programmable alert thresholds. Channels 1, 4, 5, and 6 also have programmable overtemperature thresholds. When the measured temperature of a channel exceeds the respective threshold, a status bit is set in one of the status registers. Two open-drain outputs, active-low OVERT and active-low ALERT, assert corresponding to these bits in the status register.The 2-wire serial interface supports the standard system management bus (SMBus™) protocols: write byte, read byte, send byte, and receive byte for reading the temperature data and programming the alarm thresholds.The MAX6697 is specified for an operating temperature range of -40°C to +125°C and is available in 20-pin QSOP and 20-pin TSSOP packages.ApplicationsDesktop ComputersNotebook ComputersServersWorkstations
$4.80 - * $18.75
Distributors
| Distributor | SKU | Stock | MOQ | 1 | 10 | 50 | 100 | 1000 | 10000 | Purchase | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 |
Analog Devices Inc | MAX6697UP9C+ | $4.80 | $4.80 | Buy | ||||||
|
 |
element14 APAC | MAX6697UP9C+ | 148 | 1 | * $18.75 | * $8.90 | * $8.90 | * $8.06 | * $8.01 | * $8.01 | Buy |
|
 |
Farnell | MAX6697UP9C+ | 148 | 1 | * $12.92 | * $10.13 | * $10.13 | * $6.51 | * $6.38 | * $6.38 | Buy |
|
|
Mouser Electronics | 700-MAX6697UP9C | 99 | 1 | $17.24 | $10.08 | $8.96 | $7.16 | $6.71 | $5.70 | Buy |
Technical Specifications
| ROHS Compliance | Compliant |
