Analog Devices Inc.

Category: Amplifiers and Comparators

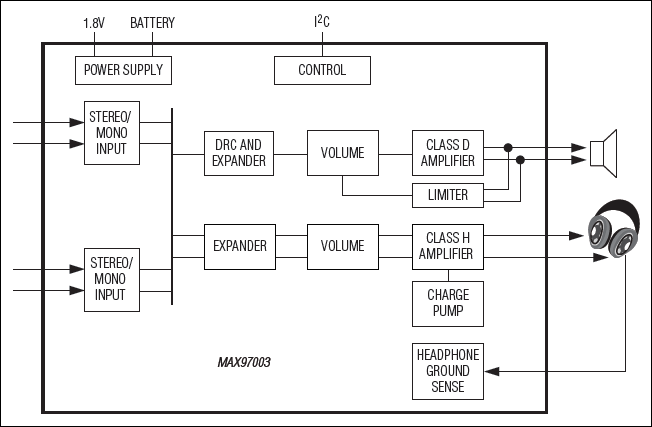

The MAX97003 audio subsystem combines a mono speaker amplifier with a stereo headphone amplifier. The headphone and speaker amplifiers have independent volume and on/off controls. The four inputs are configurable as two differential or four single-ended inputs.To minimize output noise, both the headphone and speaker outputs utilize a downward expander/noise gate to attenuate noise when no desired input signal is present.The speaker output incorporates an adjustable dynamic range compressor (DRC) and distortion limiter to protect the speaker and maximize loudness. This allows high gain for low-level signals without compromising the quality of large signals.All controls are performed using the two-wire I²C interface. The IC operates in the extended -40°C to +85°C temperature range, and is available in the 2.0mm x 2.4mm, 20-bump WLP package (0.4mm pitch).ApplicationsCell PhonesPortable Media Players

[no prices available]
