OPA2354AIDDAG3
Texas Instruments
Category: Amplifiers and Comparators

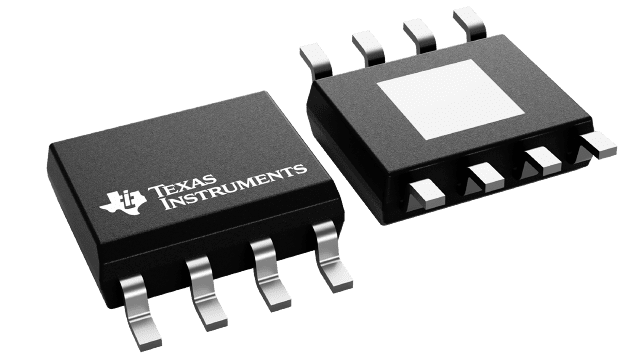

OP Amp Dual Volt Fdbk R-R I/O ±2.75V/5.5V 8-Pin HSOP EP Tube
$1.63 - * $1.97
Distributors
Currency:
Parts in family
Technical Specifications
| Lead Free Status | Yes |
| ROHS Compliance | Compliant |
| 2nd Harmonic(dBc) | 75 |
| 3rd Harmonic(dBc) | 83 |
| @ MHz | 1 |
| Acl, min spec gain(V/V) | 1 |
| Additional Features | Shutdown |
| Approx. Price (US$) | 1.10 | 1ku |
| Architecture | CMOS,Voltage FB |
| BW @ Acl(MHz) | 250 |
| CMRR(Min)(dB) | 66 |
| CMRR(Typ)(dB) | 80 |
| GBW(Typ)(MHz) | 250 |
| Input Bias Current(Max)(pA) | 50 |
| Iq per channel(Max)(mA) | 6 |
| Iq per channel(Typ)(mA) | 4.9 |
| Number of Channels(#) | 2 |
| Offset Drift(Typ)(uV/C) | 4 |
| Operating Temperature Range(C) | -40 to 125 |
| Output Current(Typ)(mA) | 100 |
| Package Group | SO PowerPAD,VSSOP |
| Package Size | mm2 |
| Rail-to-Rail | In,Out |
| Rating | Catalog |
| Slew Rate(Typ)(V/us) | 150 |
| Total Supply Voltage(Max)(+5V=5, +/-5V=10) | 5.5 |
| Total Supply Voltage(Min)(+5V=5, +/-5V=10) | 2.5 |
| Vn at Flatband(Typ)(nV/rtHz) | 6.5 |
| Vos (Offset Voltage @ 25C)(Max)(mV) | 8 |
