OPA541BM
Texas Instruments
Category: Amplifiers and Comparators

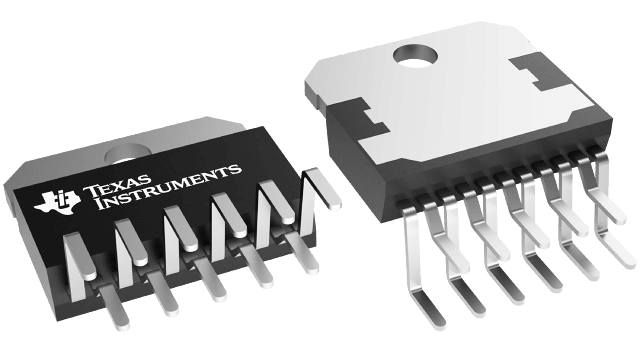

OPA541 High Power Monolithic Operational Amplifier
$135.33 - $206.87
Distributors
Currency:
| Distributor | SKU | Stock | MOQ | 1 | 10 | 50 | 100 | 1000 | 10000 | Purchase | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 |
DigiKey | 296-36065-5-ND | 32 | 1 | $277.56 | $155.51 | $225.80 | $146.37 | $129.45 | $129.45 | Buy |
|
 |
Arrow Asia | OPA541BM | 306 | 18 | $224.36 | $224.36 | $224.36 | $224.36 | Buy | ||
|
 |
Arrow North American Components | OPA541BM | 0 | 18 | $152.87 | $132.06 | $200.99 | $163.18 | $159.93 | $153.63 | Buy |
|
 |
AVNET Asia Pacific | OPA541BM | 18 | $129.77 | $124.64 | $118.41 | $118.41 | Buy | |||
|
 |
AVNET Europe | OPA541BM | 13 | 18 | * $153.47 | * $151.88 | * $142.51 | * $142.51 | Buy | ||
|
|
AVNET Express | OPA541BM | 16 | 1 | $162.11 | $155.81 | $155.81 | $155.81 | $155.81 | Buy | |
|
|
Mouser Electronics | 595-OPA541BM | 0 | 1 | $206.87 | $188.32 | $185.99 | $181.64 | $181.64 | $181.64 | Buy |
|
|
Newark | OPA541BM | 18 | $165.05 | $154.27 | $140.24 | $140.24 | $140.24 | $140.24 | Buy | |
|
|
Verical Marketplace | OPA541BM | 2652 | 2 | $164.34 | $141.96 | $140.95 | $196.36 | $183.84 | $172.70 | Buy |
|
|
Win Source | OPA541BM | 1840 | 2 | Buy |
Parts in family
Analog Circuits
| Name | Category | Published | |
|---|---|---|---|
| High-current voltage output circuit using a precision DAC | Data Converter | 01/25/2019 | Download |
Technical Specifications
| Lead Free Status | Yes |
| ROHS Compliance | Yes |
| Additional Features | Adj Current Limit |
| Approx. Price (US$) | 12.60 | 1ku |
| Architecture | FET |
| CMRR(Min)(dB) | 95 |
| CMRR(Typ)(dB) | 113 |
| GBW(Typ)(MHz) | 2 |
| Input Bias Current(Max)(pA) | 50 |
| Iq per channel(Max)(mA) | 25 |
| Iq per channel(Typ)(mA) | 20 |
| Number of Channels(#) | 1 |
| Offset Drift(Typ)(uV/C) | 15 |
| Operating Temperature Range(C) | -25 to 85 |
| Output Current(Typ)(mA) | 10000 |
| Package Group | TO-220,WAFERSALE |
| Package Size | mm2 |
| Rail-to-Rail | No |
| Rating | Catalog |
| Slew Rate(Typ)(V/us) | 10 |
| Total Supply Voltage(Max)(+5V=5, +/-5V=10) | 70 |
| Total Supply Voltage(Min)(+5V=5, +/-5V=10) | 20 |
| Vos (Offset Voltage @ 25C)(Max)(mV) | 1 |
