OPA548T-1G3
Texas Instruments
Category: Amplifiers and Comparators

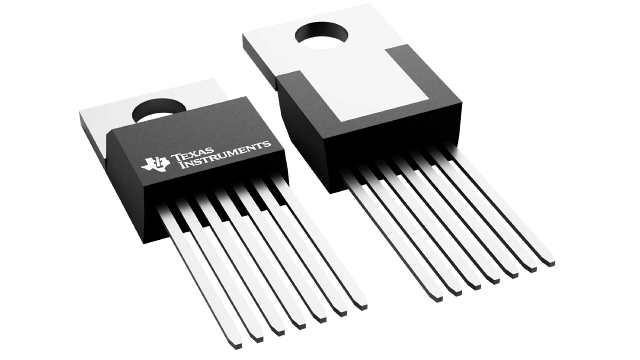

OP Amp Single GP ±30V/60V 7-Pin(7+Tab) TO-220 Tube
* $7.75 - $16.67
Distributors
Currency:
| Distributor | SKU | Stock | MOQ | 1 | 10 | 50 | 100 | 1000 | 10000 | Purchase | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 |
DigiKey | 296-26291-5-ND | 0 | 1 | $17.11 | $15.73 | $12.93 | $13.28 | $9.78 | $8.39 | Buy |
|
 |
Arrow North American Components | OPA548T-1G3 | 1 | 50 | $12.68 | $11.21 | $8.90 | $8.90 | Buy | ||
|
 |
AVNET Europe | OPA548T-1G3 | 31 | 50 | * $7.75 | * $7.25 | * $6.65 | * $6.65 | Buy | ||
|
|
Mouser Electronics | 595-OPA548T-1G3 | 80 | 1 | $16.54 | $15.20 | $14.57 | $12.84 | $10.48 | $10.14 | Buy |
|
|
Newark | OPA548T-1G3 | 50 | $14.68 | $13.49 | $12.16 | $11.32 | $11.32 | $11.32 | Buy | |
|
|
Texas Instruments | OPA548T-1G3 | 1368 | $16.67 | Buy | ||||||
|
|
Verical Marketplace | OPA548T-1G3 | 1 | 1 | $12.68 | $12.68 | $12.68 | $12.68 | $12.68 | $12.68 | Buy |
Parts in family
Technical Specifications
| Lead Free Status | No |
| ROHS Compliance | Compliant |
| Additional Features | Adj Current Limit,Shutdown |
| Approx. Price (US$) | 7.94 | 1ku |
| Architecture | Bipolar |
| CMRR(Min)(dB) | 80 |
| CMRR(Typ)(dB) | 95 |
| GBW(Typ)(MHz) | 1 |
| Input Bias Current(Max)(pA) | 500000 |
| Iq per channel(Max)(mA) | 20 |
| Iq per channel(Typ)(mA) | 17 |
| Number of Channels(#) | 1 |
| Offset Drift(Typ)(uV/C) | 30 |
| Operating Temperature Range(C) | -40 to 85 |
| Output Current(Typ)(mA) | 3000 |
| Package Group | DDPAK/TO-263,TO-220 |
| Package Size | mm2 |
| Rail-to-Rail | In to V- |
| Rating | Catalog |
| Slew Rate(Typ)(V/us) | 10 |
| Total Supply Voltage(Max)(+5V=5, +/-5V=10) | 60 |
| Total Supply Voltage(Min)(+5V=5, +/-5V=10) | 8 |
| Vos (Offset Voltage @ 25C)(Max)(mV) | 10 |
