RL78/G14 microcontrollers balance the industry's lowest level of consumption current (CPU: 66 μA/MHz, standby (STOP): 240 nA) and a high calculation performance of 51.2 DMIPS (32 MHz). The built-in high-function timer supports three-phase motor control using three-phase complementary PWM output. They have an on-chip oscillator, data flash, A/D and D/A converters, comparator, and more. Built-in safety features (function that detects illegal operation of hardware) enable support for the household appliance safety standard (IEC/UL 60730). With a broad 30 to 100-pin lineup and up to 512 KB on-chip flash memory, these microcontrollers can be used in a wide variety of applications such as motor control and consumer and industrial equipment.

• CPU: RL78 core, Max. 32MHz
• Voltage: 1.6V to 5.5V

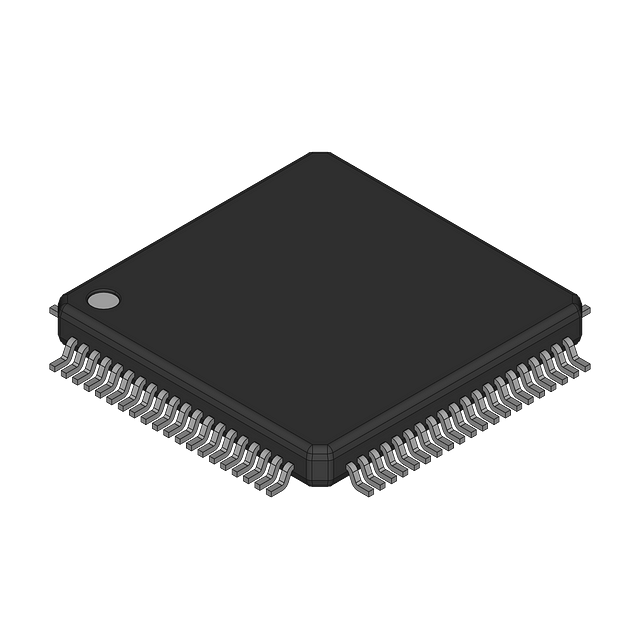

• Package: 32 to 48-pin HWQFN, 48 to 100-pin LFQFP, 32 to 100-pin LQFP, 30-pin LSSOP, 36 to 64-pin WFLGA
• Memory: SRAM Max. 48KB, Program Flash Max. 512KB
• Timer: 16-bit Timer (ch) x 8, 8-bit Timer (ch) x 8, Watchdog Timer (ch) x 1, 12-bit Interval Timer x 1 ch
• PWM: PWM Output x 13, 3-phase PWM Output Function
• Analog function: 10-bit A/D Converter (ch) x 9, 8-bit D/A Converter (ch) x 2
• On-chip Oscillator Freq. (MHz): High-Speed: 64, 48, 32, 24, 16, 12, 8, 6, 4, 3, 2, 1MHz
  Low-speed: 15kHz
• Others: RTC, Power-On Reset, Low Voltage Detection

Applications:

• Industrial Sensing with IO-Link Interface
• HVAC Humidity Sensor
• HVAC Air Quality Sensor
• Air Quality Control for IoT Building Automation
• Refrigerator Compressor Digital Inverter
• Electric Vehicle (EV) Charger
• Biosensing with Wireless Charging and Bluetooth
• Refrigerator Odor Detector
• High-End Electric Fan with BLDC Control
• Battery Management System
• In-Home Air Quality Monitor System
• Modbus ASCII/RTU Slave Board
• USB-PD with Turbo Boost
• LoRaWAN-Based Gas Meter
• Sensor Signal Conditioner to Linearize Results
• Cordless Single-Phase BLDC Hand Blender
• Pure Sine Wave Home Inverter
• LoRa-based Solutions for RL78 Family
