THS6032IDWPR
Texas Instruments
Category: Amplifiers and Comparators
THS6032 Low-Power, Dual Class G Amplifier and DSL/PLC Line Driver
$8.90 - $10.94
Distributors
Currency:
| Distributor | SKU | Stock | MOQ | 1 | 10 | 50 | 100 | 1000 | 10000 | Purchase | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 |
DigiKey | 2156-THS6032IDWPR-ND | 8000 | 31 | $9.77 | $9.77 | $9.77 | $11.53 | Buy | ||
|
 |
Arrow North American Components | THS6032IDWPR | 0 | 2000 | $0.00 | Buy | |||||
|
 |
AVNET Europe | THS6032IDWPR | 2000 | * $10.27 | Buy | ||||||
|
|
AVNET Express | THS6032IDWPR | 8000 | 1 | $9.66 | $9.43 | $9.06 | $9.06 | Buy | ||
|
|
Mouser Electronics | 595-THS6032IDWPR | 0 | 2000 | $10.05 | Buy | |||||
|
|
Perceptive | THS6032IDWPR | 7130 | 1+ | Buy | ||||||
|
|
Texas Instruments | THS6032IDWPR | 2000 | 1 | $10.94 | $10.94 | $10.94 | $9.55 | $6.59 | $6.59 | Buy |
|
|
Win Source | THS6032IDWPR | 8300 | 5 | Buy |
Parts in family
Technical Specifications
| Lead Free Status | Yes |
| ROHS Compliance | Yes |
| 2nd Harmonic(dBc) | 79 |
| 3rd Harmonic(dBc) | 68 |
| @ MHz | 1 |
| Acl, min spec gain(V/V) | 1 |
| Additional Features | Shutdown |
| Approx. Price (US$) | 5.65 | 1ku |
| Architecture | Current FB |
| BW @ Acl(MHz) | 100 |
| CMRR(Min)(dB) | 64 |
| CMRR(Typ)(dB) | 72 |
| GBW(Typ)(MHz) | 100 |
| Input Bias Current(Max)(pA) | 9000000 |
| Iq per channel(Max)(mA) | 10.8 |
| Iq per channel(Typ)(mA) | 8.3 |
| Number of Channels(#) | 2 |
| Offset Drift(Typ)(uV/C) | 10 |
| Operating Temperature Range(C) | -40 to 85,0 to 70 |
| Output Current(Typ)(mA) | 440 |

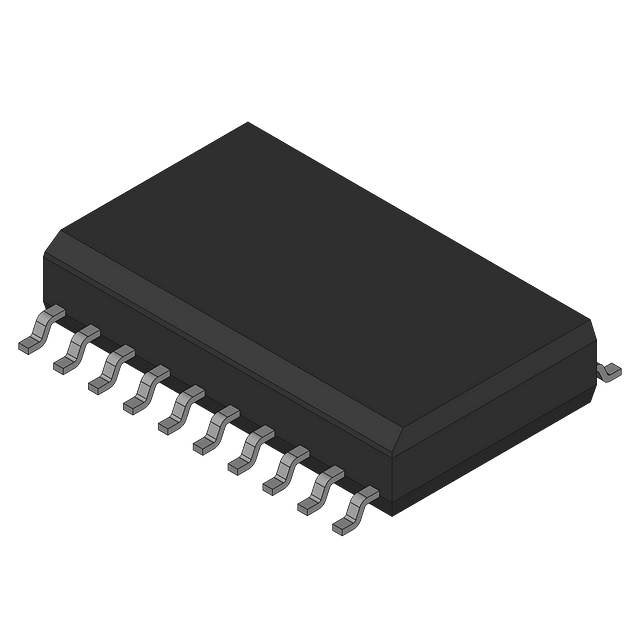

| Package Group | SO PowerPAD |
| Package Size | mm2 |
| Rail-to-Rail | No |
| Rating | Catalog |
| Slew Rate(Typ)(V/us) | 1200 |
| Total Supply Voltage(Max)(+5V=5, +/-5V=10) | 32 |
| Total Supply Voltage(Min)(+5V=5, +/-5V=10) | 10 |
| Vn at 1kHz(Typ)(nV/rtHz) | 2.8 |
| Vn at Flatband(Typ)(nV/rtHz) | 2.4 |
| Vos (Offset Voltage @ 25C)(Max)(mV) | 5 |
