LTC6102HVHDD#TRPBF
Analog Devices Inc.
Precision Zero Drift Current Sense Amplifier Features: Supply Range: 4V to 60V, 70V Maximum (LTC6102) 5V to 100V, 105V Maximum (LTC6102HV) ±10μV Input Offset Maximum ±50nV/°C Input Offset Drift Maximum Fast Response: 1μs Step Response Gain Configurable with Two Resistors Low Input Bias Current: 3nA Maximum PSRR 130dB Minimum Output Currents up to 1mA Operating Temperature Range: –40°C to 125°C Disable Mode (LTC6102-1 Only): 1μA Maximum Available in 8-Lead MSOP and 3mm × 3mm DFN Packages
| Distributor | SKU | Stock | MOQ | 1 | 10 | 50 | 100 | 1,000 | 10,000 |
|---|---|---|---|---|---|---|---|---|---|
| Analog Devices Inc | LTC6102HVHDD#TRPBF | 0 | $8.25 | $7.45 | $7.11 | $6.17 | $4.91 | $4.91 | |
| Arrow North American Components | LTC6102HVHDD#TRPBF | 0 | 2500 | $4.70 | |||||
| Mouser Electronics | LTC6102HVHDD#TRPBF | 0 | 2500 | $4.31 |
LTC6229HDD#TRPBF
Analog Devices Inc.
0.88nV/Hz 730MHz, 500V/s, Low Distortion Rail-to-Rail Output Op Amps with Shutdown Features: Ultra Low Voltage Noise: 0.88nV/√Hz Low Distortion at High Speeds: HD2/HD3 < −100dBc (Av = +1, 4VP-P, 2MHz, RL = 1kΩ) High Slew Rate: 500V/μs GBW = 890MHz –3dB Frequency (AV = +1): 730MHz Input Offset Voltage: 250μV Max Across Temperature Offset Drift :0.4μV/°C Input Common Mode Range Includes Negative Rail Output Swings Rail-to-Rail Supply Current: 16mA/Channel Typ Shutdown Supply Current = 500µA Operating Supply Range: 2.8V to 11.75V Large Output Current: 80mA Min Very High Open Loop Gain: 5.6V/μV (135dB), RL = 1kΩ Operating Temp Range: –40°C to 125°C Singles in 8-Lead SOIC, TSOT-23, DC-6, Duals in DD10, MS8
| Distributor | SKU | Stock | MOQ | 1 | 10 | 50 | 100 | 1,000 | 10,000 |
|---|---|---|---|---|---|---|---|---|---|
| Analog Devices Inc | LTC6229HDD#TRPBF | 0 | $8.38 | $7.57 | $7.21 | $6.26 | $4.98 | $4.98 | |
| Mouser Electronics | LTC6229HDD#TRPBF | 516 | 1 | $7.93 | $7.17 | $6.84 | $5.93 | $4.49 | $4.30 |
LTC6240CS8#PBF
Analog Devices Inc.
Single 18MHz, Low Noise, Rail-to-Rail Output, CMOS Op Amp Features: 0.1Hz to 10Hz Noise: 550nVP-P Input Bias Current: 0.2pA (Typ at 25°C) 1pA Max (LTC6240) Low Offset Voltage: 125μV Max Low Offset Drift: 2.5μV/°C Max Gain Bandwidth Product: 18MHz Output Swings Rail-to-Rail Supply Operation: 2.8V to 6V LTC6240/LTC6241/LTC6242 2.8V to ±5.5V LTC6240HV/LTC6241HV/LTC6242HV Low Input Capacitance H-Grade Temperature Range: –40°C to 125°C Single LTC6240 in 5-Pin Low Profile (1mm) ThinSOT™ Package and 8-Pin SO for PCB Guard Ring Dual LTC6241 in 8-Pin SO and Tiny DFN Packages Quad LTC6242 in 16-Pin SSOP and 5mm × 3mm DFN Packages
| Distributor | SKU | Stock | MOQ | 1 | 10 | 50 | 100 | 1,000 | 10,000 |
|---|---|---|---|---|---|---|---|---|---|
| Analog Devices Inc | LTC6240CS8#PBF | 0 | $2.84 | $2.55 | $2.41 | $2.09 | $1.52 | $1.52 | |
| element14 APAC | LTC6240CS8#PBF | 251 | 1 | * $3.35 | * $2.51 | * $2.30 | * $2.07 | * $1.94 | * $1.94 |
| Farnell | LTC6240CS8#PBF | 251 | 1 | * $4.75 | * $3.13 | * $2.81 | * $2.48 | * $2.34 | * $2.34 |
| Mouser Electronics | LTC6240CS8#PBF | 731 | 1 | $3.14 | $1.79 | $1.79 | $1.47 | $1.32 | $1.32 |
| Newark | LTC6240CS8#PBF | 251 | 1 | $4.03 | $2.59 | $2.00 | $1.79 | $1.79 | $1.79 |
LTC6240CS8#TRPBF
Analog Devices Inc.
Single 18MHz, Low Noise, Rail-to-Rail Output, CMOS Op Amp Features: 0.1Hz to 10Hz Noise: 550nVP-P Input Bias Current: 0.2pA (Typ at 25°C) 1pA Max (LTC6240) Low Offset Voltage: 125μV Max Low Offset Drift: 2.5μV/°C Max Gain Bandwidth Product: 18MHz Output Swings Rail-to-Rail Supply Operation: 2.8V to 6V LTC6240/LTC6241/LTC6242 2.8V to ±5.5V LTC6240HV/LTC6241HV/LTC6242HV Low Input Capacitance H-Grade Temperature Range: –40°C to 125°C Single LTC6240 in 5-Pin Low Profile (1mm) ThinSOT™ Package and 8-Pin SO for PCB Guard Ring Dual LTC6241 in 8-Pin SO and Tiny DFN Packages Quad LTC6242 in 16-Pin SSOP and 5mm × 3mm DFN Packages
| Distributor | SKU | Stock | MOQ | 1 | 10 | 50 | 100 | 1,000 | 10,000 |
|---|---|---|---|---|---|---|---|---|---|
| Analog Devices Inc | LTC6240CS8#TRPBF | 0 | $2.84 | $2.55 | $2.41 | $2.09 | $1.52 | $1.52 | |
| Mouser Electronics | LTC6240CS8#TRPBF | 0 | 2500 | $1.32 | |||||
| Win Source | LTC6240CS8#TRPBF | 5801 | 2 |
LTC6240HS5#TRMPBF
Analog Devices Inc.
Single 18MHz, Low Noise, Rail-to-Rail Output, CMOS Op Amp Features: 0.1Hz to 10Hz Noise: 550nVP-P Input Bias Current: 0.2pA (Typ at 25°C) 1pA Max (LTC6240) Low Offset Voltage: 125μV Max Low Offset Drift: 2.5μV/°C Max Gain Bandwidth Product: 18MHz Output Swings Rail-to-Rail Supply Operation: 2.8V to 6V LTC6240/LTC6241/LTC6242 2.8V to ±5.5V LTC6240HV/LTC6241HV/LTC6242HV Low Input Capacitance H-Grade Temperature Range: –40°C to 125°C Single LTC6240 in 5-Pin Low Profile (1mm) ThinSOT™ Package and 8-Pin SO for PCB Guard Ring Dual LTC6241 in 8-Pin SO and Tiny DFN Packages Quad LTC6242 in 16-Pin SSOP and 5mm × 3mm DFN Packages
| Distributor | SKU | Stock | MOQ | 1 | 10 | 50 | 100 | 1,000 | 10,000 |
|---|---|---|---|---|---|---|---|---|---|
| Analog Devices Inc | LTC6240HS5#TRMPBF | 0 | $2.89 | $2.60 | $2.46 | $2.13 | $1.55 | $1.55 | |
| Arrow North American Components | LTC6240HS5#TRMPBF | 0 | 500 | $1.41 | $1.33 | ||||
| Farnell | LTC6240HS5#TRMPBF | 500 | 1 | * $4.83 | * $3.19 | * $2.92 | * $2.52 | * $2.38 | * $2.38 |
| Mouser Electronics | LTC6240HS5#TRMPBF | 489 | 1 | $3.56 | $2.31 | $2.31 | $1.91 | $1.42 | $1.34 |
| Newark | LTC6240HS5#TRMPBF | 500 | 1 | $4.55 | $3.14 | $2.56 | $2.35 | $2.35 | $2.35 |
LTC6240HS5#TRPBF
Analog Devices Inc.
Single 18MHz, Low Noise, Rail-to-Rail Output, CMOS Op Amp Features: 0.1Hz to 10Hz Noise: 550nVP-P Input Bias Current: 0.2pA (Typ at 25°C) 1pA Max (LTC6240) Low Offset Voltage: 125μV Max Low Offset Drift: 2.5μV/°C Max Gain Bandwidth Product: 18MHz Output Swings Rail-to-Rail Supply Operation: 2.8V to 6V LTC6240/LTC6241/LTC6242 2.8V to ±5.5V LTC6240HV/LTC6241HV/LTC6242HV Low Input Capacitance H-Grade Temperature Range: –40°C to 125°C Single LTC6240 in 5-Pin Low Profile (1mm) ThinSOT™ Package and 8-Pin SO for PCB Guard Ring Dual LTC6241 in 8-Pin SO and Tiny DFN Packages Quad LTC6242 in 16-Pin SSOP and 5mm × 3mm DFN Packages
| Distributor | SKU | Stock | MOQ | 1 | 10 | 50 | 100 | 1,000 | 10,000 |
|---|---|---|---|---|---|---|---|---|---|
| Analog Devices Inc | LTC6240HS5#TRPBF | 0 | $2.89 | $2.89 | $2.89 | $2.89 | $2.89 | $2.89 | |
| Arrow North American Components | LTC6240HS5#TRPBF | 0 | 2500 | $1.39 | |||||
| Mouser Electronics | LTC6240HS5#TRPBF | 0 | 2500 | $1.34 |
| Distributor | SKU | Stock | MOQ | 1 | 10 | 50 | 100 | 1,000 | 10,000 |
|---|---|---|---|---|---|---|---|---|---|
| DigiKey | AS1705-T-ND | 0 | $0.00 | $0.00 | $0.00 | $0.00 | |||
| Mouser Electronics | 985-AS1705 | 0 | 1 | $0.00 |
LTC2050HVCS8#TRPBF
Analog Devices Inc.
High Voltage Zero-Drift Operational Amplifier in SOT-23 with Extended Temperature Range Features: Maximum Offset Voltage of 3µV Maximum Offset Voltage Drift of 30nV/°C Noise: 1.5µVP-P (0.01Hz to 10Hz Typ) Voltage Gain: 140dB (Typ) PSRR: 130dB (Typ) CMRR: 130dB (Typ) Supply Current: 0.8mA (Typ) Supply Operation LTC2050: 2.7V to 6V LTC2050HV: 2.7V to ±5.5V LTC2050HVMP: 4.5V to ±5.5V Extended Common Mode Input Range Output Swings Rail-to-Rail Input Overload Recovery Time: 2ms (Typ) Operating Temperature Range LTC2050: –40°C to 125°C LTC2050HVMP: –55°C to 150°C Low Profile (1mm) SOT-23 (ThinSOT™) Package AEC-Q100 Qualified for Automotive Applications
| Distributor | SKU | Stock | MOQ | 1 | 10 | 50 | 100 | 1,000 | 10,000 |
|---|---|---|---|---|---|---|---|---|---|
| Analog Devices Inc | LTC2050HVCS8#TRPBF | 781 | 1 | $4.55 | $4.09 | $3.86 | $3.35 | $2.43 | $2.43 |
| Arrow North American Components | LTC2050HVCS8#TRPBF | 0 | 2500 | $3.17 | |||||
| Mouser Electronics | LTC2050HVCS8#TRPBF | 2350 | 1 | $5.36 | $3.11 | $3.11 | $2.77 | $2.22 | $2.11 |
LTC2050HVIS5#TRMPBF
Analog Devices Inc.
High Voltage Zero-Drift Operational Amplifier in SOT-23 with Extended Temperature Range Features: Maximum Offset Voltage of 3µV Maximum Offset Voltage Drift of 30nV/°C Noise: 1.5µVP-P (0.01Hz to 10Hz Typ) Voltage Gain: 140dB (Typ) PSRR: 130dB (Typ) CMRR: 130dB (Typ) Supply Current: 0.8mA (Typ) Supply Operation LTC2050: 2.7V to 6V LTC2050HV: 2.7V to ±5.5V LTC2050HVMP: 4.5V to ±5.5V Extended Common Mode Input Range Output Swings Rail-to-Rail Input Overload Recovery Time: 2ms (Typ) Operating Temperature Range LTC2050: –40°C to 125°C LTC2050HVMP: –55°C to 150°C Low Profile (1mm) SOT-23 (ThinSOT™) Package AEC-Q100 Qualified for Automotive Applications
| Distributor | SKU | Stock | MOQ | 1 | 10 | 50 | 100 | 1,000 | 10,000 |
|---|---|---|---|---|---|---|---|---|---|
| Analog Devices Inc | LTC2050HVIS5#TRMPBF | 0 | $5.06 | $4.54 | $4.29 | $3.72 | $2.70 | $2.70 | |
| Arrow Europe | LTC2050HVIS5#TRMPBF | 23 | 1 | $4.83 | $3.47 | $3.05 | $2.57 | $2.13 | $2.13 |
| Arrow North American Components | LTC2050HVIS5#TRMPBF | 0 | 500 | $2.16 | $2.16 | ||||
| element14 APAC | LTC2050HVIS5#TRMPBF | 471 | 100 | * $0.00 | * $0.00 | * $0.00 | * $3.59 | * $3.46 | * $3.46 |
| Farnell | LTC2050HVIS5#TRMPBF | 471 | 100 | * $0.00 | * $0.00 | * $0.00 | * $4.40 | * $3.75 | * $3.75 |
| Mouser Electronics | LTC2050HVIS5#TRMPBF | 897 | 1 | $5.10 | $4.58 | $4.32 | $3.75 | $2.71 | $2.71 |
| Newark | LTC2050HVIS5#TRMPBF | 471 | 1 | $5.20 | $3.97 | $3.48 | $3.32 | $3.32 | $3.32 |
| Verical Marketplace | LTC2050HVIS5#TRMPBF | 1000 | 500 | $2.22 | $2.22 |

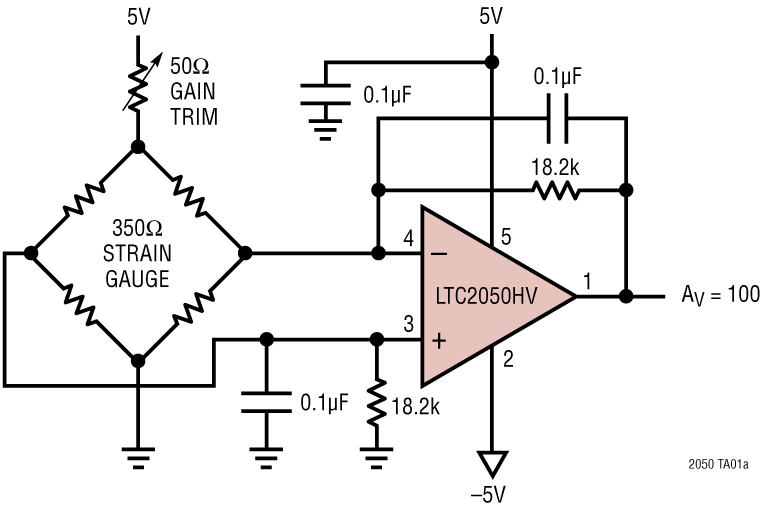

LTC2050HVIS5#TRPBF
Analog Devices Inc.
High Voltage Zero-Drift Operational Amplifier in SOT-23 with Extended Temperature Range Features: Maximum Offset Voltage of 3µV Maximum Offset Voltage Drift of 30nV/°C Noise: 1.5µVP-P (0.01Hz to 10Hz Typ) Voltage Gain: 140dB (Typ) PSRR: 130dB (Typ) CMRR: 130dB (Typ) Supply Current: 0.8mA (Typ) Supply Operation LTC2050: 2.7V to 6V LTC2050HV: 2.7V to ±5.5V LTC2050HVMP: 4.5V to ±5.5V Extended Common Mode Input Range Output Swings Rail-to-Rail Input Overload Recovery Time: 2ms (Typ) Operating Temperature Range LTC2050: –40°C to 125°C LTC2050HVMP: –55°C to 150°C Low Profile (1mm) SOT-23 (ThinSOT™) Package AEC-Q100 Qualified for Automotive Applications
| Distributor | SKU | Stock | MOQ | 1 | 10 | 50 | 100 | 1,000 | 10,000 |
|---|---|---|---|---|---|---|---|---|---|
| Analog Devices Inc | LTC2050HVIS5#TRPBF | 0 | $5.06 | $4.54 | $4.29 | $3.72 | $2.70 | $2.70 | |
| Arrow North American Components | LTC2050HVIS5#TRPBF | 0 | 2500 | $2.16 | |||||
| Farnell | LTC2050HVIS5#TRPBF | 0 | 2500 | $0.00 | $0.00 | $0.00 | $0.00 | $0.00 | $1.93 |
| Mouser Electronics | LTC2050HVIS5#TRPBF | 3998 | 1 | $5.10 | $4.58 | $4.32 | $3.75 | $2.71 | $2.71 |
