THS4141IDGKR

Texas Instruments THS4141IDGKR

THS4151IDGKG4

Texas Instruments THS4151IDGKG4

THS4500MDGNREP

Texas Instruments THS4500MDGNREP

THS4513RGTR

Texas Instruments THS4513RGTR

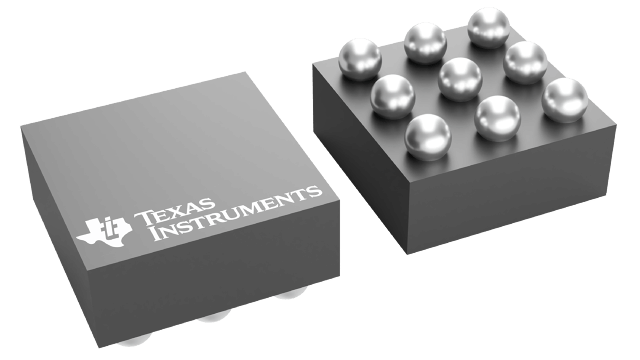

THS7320IYHCR

Texas Instruments THS7320IYHCR

TLV170IDBVR

Texas Instruments TLV170IDBVR

TLV2361CDBV

Texas Instruments TLV2361CDBV

ONET8501PBRGTT

Texas Instruments ONET8501PBRGTT

OPA2137EA/2K5

Texas Instruments OPA2137EA/2K5

OPA2244EA/250G4

Texas Instruments OPA2244EA/250G4

Price $5.03 $0.96 $0.79 $1.33
RoHS Yes Compliant Compliant Yes Yes Compliant Yes Yes Compliant Compliant
Lead Status Yes Yes Yes Yes Yes Yes Yes Yes No No
Iq per channel(Max)(mA) 16 21 28 40.9 0.175 2.5 0.27 0.05
BW @ Acl(MHz) 160 150 1600
Rating Catalog Catalog HiRel Enhanced Product Catalog Catalog Catalog Catalog Catalog Catalog
Offset Drift(Typ)(uV/C) 7 7 10 2.6 2 0 15 4
Architecture Fully Differential,Voltage FB Fully Differential,Voltage FB Voltage FB ,Fully Differential Voltage FB CMOS Bipolar FET Bipolar
3rd Harmonic(dBc) 80 88 108
Output Current(Typ)(mA) 85 85 120 96 65 17 1.2 25 12
CMRR(Min)(dB) 75 75 74 95 85 76 72
@ MHz 1 1 10
Acl, min spec gain(V/V) 1 1 1
GBW(Typ)(MHz) 170 150 300 2800 1.2 7 1 0.43
Package Group MSOP-PowerPAD,SOIC,VSSOP MSOP-PowerPAD,SOIC,VSSOP MSOP-PowerPAD QFN DSBGA SOT-23,SOIC SOT-23 QFN PDIP,SOIC,VSSOP PDIP,SOIC,VSSOP
2nd Harmonic(dBc) 83 85 110
Iq per channel(Typ)(mA) 13.2 17.5 23 37.7 0.125 1.75 0.22 0.04
Operating Temperature Range(C) -40 to 85,0 to 70 -40 to 85,0 to 70 -55 to 125 -40 to 85 -40 to 85 -40 to 125 -40 to 85,0 to 70 -40 to 100 -40 to 85 -40 to 85
Slew Rate(Typ)(V/us) 450 650 2800 5100 0.4 3 3.5 0.1
Vn at Flatband(Typ)(nV/rtHz) 6.5 7.6 2.2
Number of Channels(#) 1 1 1 1 3 1 1 2 2
Total Supply Voltage(Max)(+5V=5, +/-5V=10) 33 33 15 5.5 36 5 36 36
Total Supply Voltage(Min)(+5V=5, +/-5V=10) 4 4 4.5 3 2.7 2 4.5 2.2
Approx. Price (US$) 6.77 | 100u 8.85 | 100u 4.47 | 1ku 0.85 | 1ku 0.28 | 1ku 0.29 | 1ku 1.90 | 1ku 0.70 | 1ku 1.01 | 1ku
Additional Features N/A N/A Shutdown Shutdown Cost Optimized,EMI Hardened N/A N/A N/A
CMRR(Typ)(dB) 84 83 80 90 110 60 84 98
Package Size mm2 mm2 mm2 mm2 mm2 mm2 mm2 mm2 mm2 mm2
Vos (Offset Voltage @ 25C)(Max)(mV) 7 7 7 4 2.5 6 3 1.5
Input Bias Current(Max)(pA) 15000000 15000000 15500000 150000 100 25000
Rail-to-Rail No No In to V- No Out No In to V+ In to V-,Out
IIB(Max)(pA) 4600000
Vn at 1kHz(Typ)(nV/rtHz) 27 22 8 45 22
Vs(Max)(V) 5
Vs(Min)(V) 2.6
Diff Phase(deg) 0.1
Diff Gain(%) 0.05
DJ(Typ)(ps) 3
Special Features Bandwidth Select
RJ(Max)(ps) 1
ICC(Max)(mA) 63
Data Rate(Max)(Gbps) 11.3
tf(Typ)(ps) 28
Vin Min(Nom)(mV p-p) 5
VCC(V) 3.3
tr(Typ)(ps) 28
Gain(Typ)(dB) 34
ICC(Nom)(mA) 50
