R11-2-20.0A-B06CV-V

Sensata Technologies R11-2-20.0A-B06CV-V

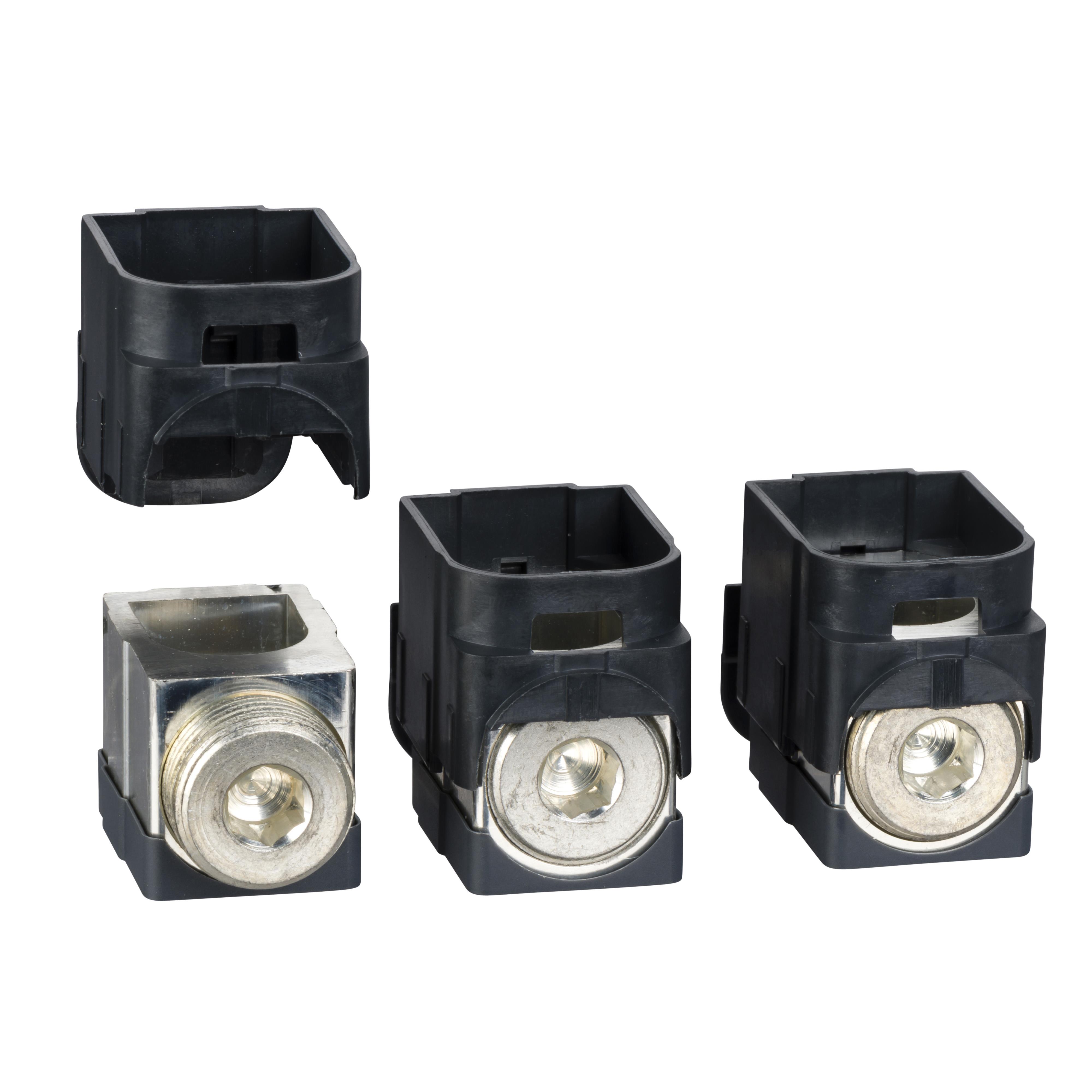

LV429259

Schneider Electric LV429259

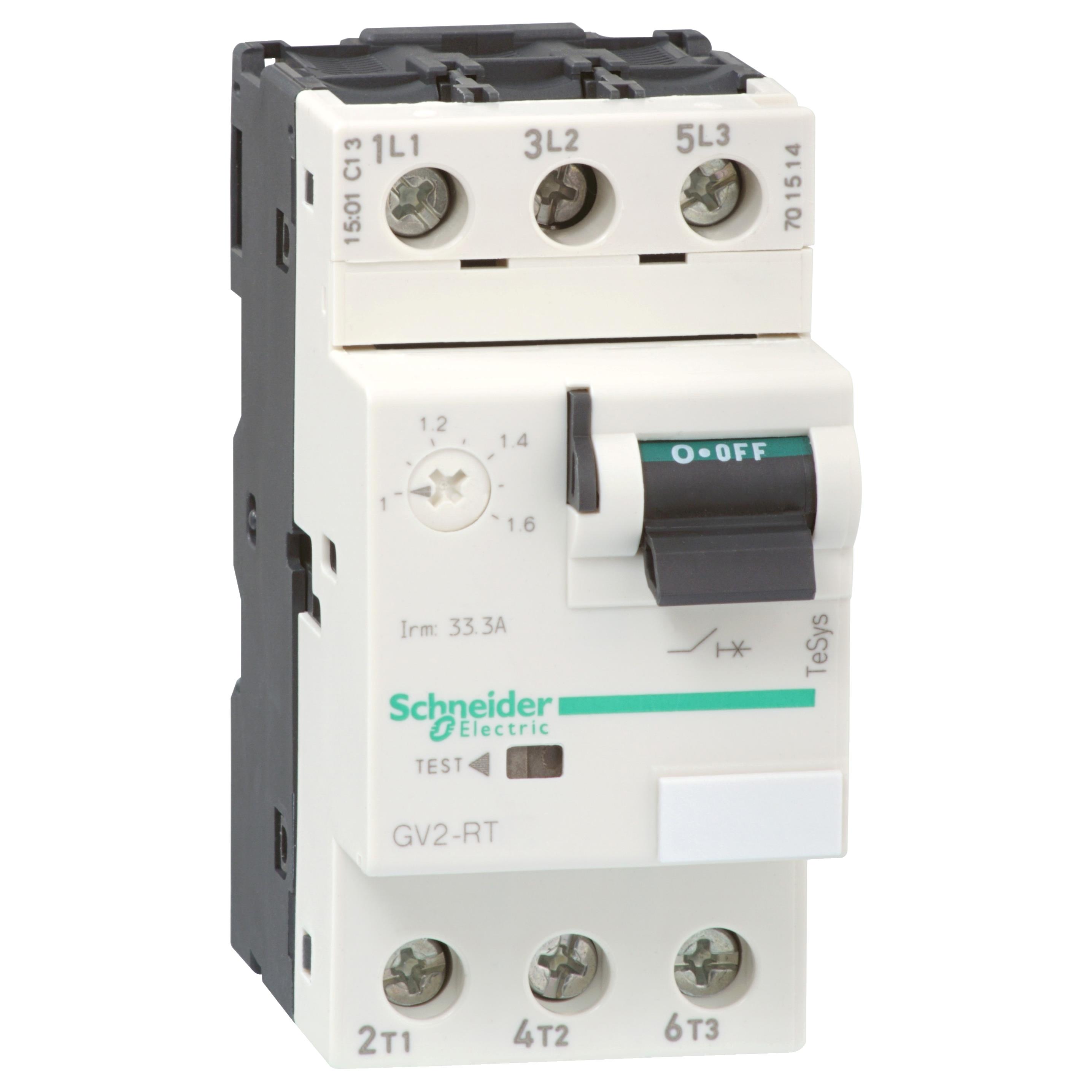

GV2RT06

Schneider Electric GV2RT06

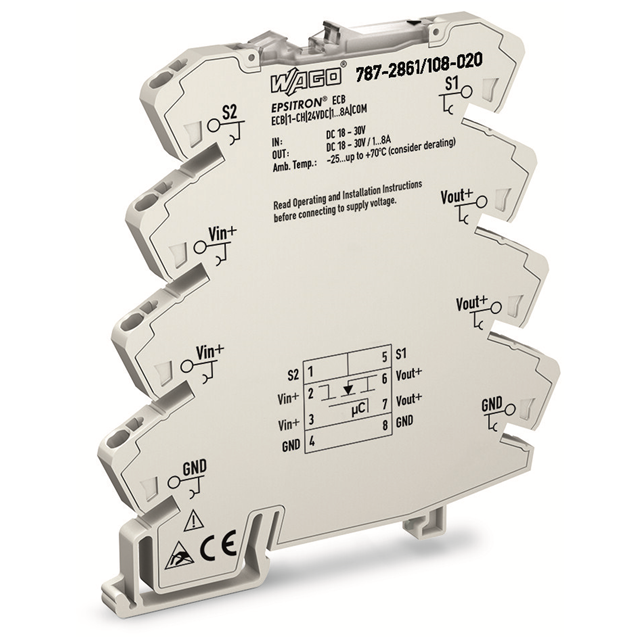

787-2861/108-020

WAGO Corporation 787-2861/108-020

TE Connectivity W51-A121B1-20

TE Connectivity W51-A121B1-10

TE Connectivity W58-XC4C12A-15

TE Connectivity W58-XC4C12A-10

TE Connectivity W54-XB1A4A10-25

TE Connectivity W58-XB1A4A-8

Price
RoHS Compliant Not Compliant Compliant Compliant
Lead Status No
Circuit Function Trip-Free - Switchable Trip-Free - Switchable Series Trip Series Trip Series Trip Series Trip
Panel Cutout 28.5 x 13.5 28.5 x 13.5 .47 – .48 (Diameter) .47 – .48 (Diameter) .441 x .394 .44 – .45 (Diameter)
Pole Configuration 1 1 1 1 1 1
Voltage Rating AC 125 125 250 250 250 250
Mounting Options Snaps Into 1.122 x .531 (28.5 x 13.5) Panel Cutout Snaps Into 1.122 x .531 (28.5 x 13.5) Panel Cutout Knurled Nut/Lockwasher Knurled Nut/Lockwasher Knurled Nut/Hex Nut Knurled Nut/Hex Nut
RESET/OFF Marking RESET/OFF Printed RESET/OFF Printed
Earthing Switch Without Without Without Without Without Without
Voltage Rating DC 50 50 50 50 50
Current Rating 20 10 15 10 25 8
Mounting Type Panel Mount Panel Mount Panel Mount Panel Mount Panel Mount Panel Mount
Illuminated Yes Yes No No No No
Termination Type 6.35 [.25] Straight Quick Connect Tab 6.35 [.25] Straight Quick Connect Tab 6-32 Screws 90° (Screws Installed) 6-32 Screws 90° (Screws Installed) 6.35 [.25] Straight Quick Connect Tab 6.35 [.25] Straight Quick Connect Tab
Panel Thickness .03 – .118 .03 – .118
Stamped Marking Type RESET/OFF Printed RESET/OFF Printed
Trip Time at 200% 4 – 40 4 – 40 6 – 30 6 – 30 5 – 30 6 – 30
Rocker Color Red (Translucent) Red (Translucent)
Interrupt Capacity 1000A @ 250VAC/50VDC 1000A @ 250VAC/50VDC 2000A @ 50VDC or 1000A @ 250VAC 2000A @ 50VDC or 1000A @ 250VAC 1000A @ 250VAC/50VDC 2000A @ 50VDC or 1000A @ 250VAC
Product Type Circuit Breaker Circuit Breaker Circuit Breaker Circuit Breaker Circuit Breaker Circuit Breaker
Actuator Type Rocker Rocker Push to Reset Push to Reset Push to Reset Push to Reset
Circuit Breaker Style Angular Button Angular Button
Circuit Breaker Type Thermal Thermal Thermal Thermal Thermal Thermal
Mounting Bushing 15/32 x .3" [7.62mm] Long, Black 15/32 x .3" [7.62mm] Long, Black 9.8 x 12.6mm Long, Metal 7/16 x .5 [12.7mm] Long
Mounting Hardware Packaging Assembled to Bushing Assembled to Bushing Assembled to Bushing Assembled to Bushing
Illumination Type No Light No Light No Light No Light
Button Color White with Black Rate Marking, Red Trip Band White with Black Rate Marking, Red Trip Band White with Red Rate Marking (Vertical) White with Red Rate Marking, Red Trip Band
