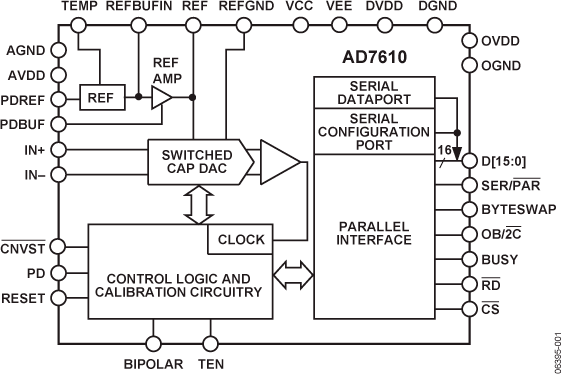

16-Bit, Serial Input, Loop-Powered, 4mA to 20mA DAC Features: 16-bit resolution and monotonicity Pin selectable NAMUR-compliant ranges 4 mA to 20 mA 3.8 mA to 21 mA 3.2 mA to 24 mA NAMUR-compliant alarm currents Downscale alarm current = 3.2 mA Upscale alarm current = 22.8 mA/24 mA Total unadjusted error (TUE): 0.05% maximum INL error: 0.0035% FSR maximum Output TC: 3 ppm/°C typical Quiescent current: 300 μA maximum Flexible SPI-compatible serial digital interface with Schmitt triggered inputs On-chip fault alerts via FAULT pin or alarm current Automatic readback of fault register on each write cycle Slew rate control function Gain and offset adjust registers On-chip reference TC: 4 ppm/°C maximum Selectable regulated voltage output Loop voltage range: 5.5 V to 52 V Temperature range: −40°C to +105°C TSSOP and LFCSP packages

2.5 V to 5.5 V, 500 A Quad Voltage Output 12-Bit DAC in 10-Lead Packages Features: 4 buffered 12-Bit DACs in 10-lead MSOP and 10-lead LFCSP A, W Version: ±16 LSB INL, B Version: ±10 LSB INL Low power operation: 500μA @ 3V, 600μA @ 5V 2.5V to 5.5V power supply Guaranteed monotonic by design over all codes Power-down to 80nA @ 3V, 200nA @ 5V Double-buffered input logic Output range: 0V to VREF Power-on reset to 0V See data sheet for additional featuresAD5324-EP supports defense and aerospace applications (AQEC standard) Download AD5324-EP Data Sheet (pdf) Military temperature range  (−55°C to +125°C) Controlled manufacturing baseline One assembly/test site One fabrication site Enhanced product change notification Qualification data available on request V62/12628 DSCC Drawing Number

2.7 V to 5.5 V, Serial-Input, Voltage-Output, 16-Bit nanoDAC in 10-lead LFCSP, 16-lead 3 mm x 3 mm LFCSP, and 16-lead TSSOP Features: 12-/16-bit resolution 1 LSB INL 11.8 nV/√Hz noise spectral density 1 μs settling time 1.1 nV-sec glitch energy 0.05 ppm/°C temperature drift 5 kV HBM ESD classification See data sheet for additional features Also available in16-lead TSSOP

4-Channel, 4.8 kHz, Ultralow Noise, 24-Bit Sigma-Delta ADC with PGA Features: Fast settling filter option 4 differential/8 pseudo differential input channels RMS noise: 11 nV @ 4.7 Hz (gain = 128) 15.5 noise-free bits @ 2.4 kHz (gain = 128) Up to 22 noise-free bits (gain = 1) Offset drift: ±5 nV/°C Gain drift: ±1 ppm/°C Specified drift over time Automatic channel sequencer Programmable gain (1 to 128) Output data rate: 4.7 Hz to 4.8 kHz Internal or external clock Simultaneous 50 Hz/60 Hz rejection 4 general-purpose digital outputs Power supply AVDD: 3 V to 5.25 V DVDD: 2.7 V to 5.25 V Current: 4.65 mA Temperature range: −40°C to +105°C 28-lead TSSOP and 32-lead LFCSP packages Interface 3-wire serial SPI, QSPI™, MICROWIRE™, and DSP compatible Schmitt trigger on SCLK

DC1884A-D: Demo Board for the LTM9008-14 14-Bit, 65Msps Low Power Octal ADCs.

The LTC2378-20 is a low noise, low power, high speed 20-bit successive approximation register (SAR) ADC. Operating from a 2.5V supply, the LTC2378-20 has a ?VREF fully differential input range with VREF ranging from 2.5V to 5.1V. The LTC2378-20 consumes only 21mW and achieves ?2ppm INL maximum, no missing codes at 20 bits with 104dB SNR.The LTC2378-20 has a high speed SPI-compatible serial interface that supports 1.8V, 2.5V, 3.3V and 5V logic while also featuring a daisy-chain mode. The fast 1Msps throughput with no cycle latency makes the LTC2378-20 ideally suited for a wide variety of high speed applications. An internal oscillator sets the conversion time, easing external timing considerations. The LTC2378-20 automatically powers down between conversions, leading to reduced power dissipation that scales with the sampling rate.The LTC2378-20 features a unique digital gain compression (DGC) function, which eliminates the driver amplifier?s negative supply while preserving the full resolution of the ADC. When enabled, the ADC performs a digital scaling function that maps zero-scale code from 0V to 0.1 ? VREF and full-scale code from VREF to 0.9 ? VREF. For a typical reference voltage of 5V, the full-scale input range is now 0.5V to 4.5V, which provides adequate headroom for powering the driving amplifier from a single 5.5V supply.Applications Medical Imaging High Speed Data Acquisition Portable or Compact Instrumentation Industrial Process Control Low Power Battery-Operated Instrumentation ATE

The LTC2000A is a family of 16-/14-/11-bit 2.7Gsps current steering DACs with exceptional spectral purity.The single (1.35Gsps mode) or dual (2.7Gsps mode) port source synchronous LVDS interface supports data rates of up to 1.35Gbps using a 675MHz DDR data clock, which can be either in quadrature or in phase with the data. An internal synchronizer automatically aligns the data with the DAC sample clock.Additional features such as pattern generation, LVDS loopout and junction temperature sensing simplify system development and testing.A serial peripheral interface (SPI) port allows configuration and read back of internal registers. Operating from 1.86V and 3.3V supplies, the LTC2000A consumes 2.41W at 2.7Gsps and 1.43W at 1.35Gsps.Applications Broadband Communication Systems DOCSIS CMTS Direct RF Synthesis Radar Instrumentation Automatic Test Equipment

The LTC2107 is a 16-bit, 210Msps high performance ADC. The combination of high sample rate, low noise and high linearity enable a new generation of digital radio designs. The direct sampling front-end is designed specifically for the most demanding receiver applications such as software defined radio and multi-channel GSM base stations. The AC performance includes, SNR = 80dBFS, SFDR = 98dBFS. Aperture jitter = 45fsRMS allows direct sampling of IF frequencies up to 500MHz with excellent performance.Features such as internal dither, a PGA front-end and digital output randomization help maximize performance. Modes of operation can be controlled through a 3-wire serial interface (SPI).The double data rate (DDR) low voltage differential (LVDS) digital outputs help reduce digital line count and enable space saving designs.Applications Software Defined Radios Military Radio and RADAR Cellular Base Stations Spectral Analysis Imaging Systems ATE and Instrumentation

Demonstration circuit 2222A features the LTC2508-32 and LTC2512-24 ADCs. The LTC2508-32 and LTC2512-24 are low power, low noise, high speed, 32-bit/24-bit SAR ADCs with an integrated configurable digital averaging filter that operate from a single 2.5V supply. The demo manual refers to the LTC2508-32 but applies to both parts, the only difference being sample rate and number of bits. The DC2222A demonstrates the DC and AC performance of the LTC2508-32 in conjunction with the DC590 or DC2026 QuikEval™ and DC890 PScope™ data collection boards. Use the DC590 or DC2026 to demonstrate DC performance such as peak-to-peak noise and DC linearity.

The LTC2380-24 is a low noise, low power, high speed 24-bit successive approximation register (SAR) ADC with an integrated digital averaging filter. Operating from a 2.5V supply, the LTC2380-24 has a ?VREF fully differential input range with VREF ranging from 2.5V to 5.1V. The LTC2380- 24 consumes only 28mW and achieves ?3.5ppm INL maximum and no missing codes at 24 bits.The LTC2380-24 has an easy to use integrated digital averaging filter that can average 1 to 65536 conversion results real-time, dramatically improving dynamic range from 101dB at 1.5Msps to 145dB at 30.5sps. No separate programming interface or configuration register is required.The high speed SPI-compatible serial interface supports 1.8V, 2.5V, 3.3V and 5V logic while also featuring a daisychain mode. The LTC2380-24 automatically powers down between conversions, reducing power dissipation at lower sampling rates.Applications Seismology Energy Exploration Medical Imaging High Speed Data Acquisition Industrial Process Control ATE
