16-Bit, 1 MSPS, PulSAR ADC in MSOP/LFCSP Features: High performance Pseudo differential analog input range 0 V to VREF with VREF between 2.5 V to 5 V Throughput: 1 MSPS Zero latency architecture 16-bit resolution with no missing codes INL: 0.6 LSB typical, 1.25 LSB maximum Dynamic range: 92 dB, VREF = 5 V SNR: 91.5 dB at fIN = 10 kHz, VREF = 5 V THD: 114 dB at fIN = 10 kHz, VREF = 5 V SINAD: 91 dB at fIN = 10 kHz, VREF = 5 V Low power dissipation Single-supply 2.5 V operation with 1.8 V/2.5 V/3 V/5 V logic interface 4 mW at 1 MSPS (VDD only) 7 mW at 1 MSPS (total) 70 μW at 10 kSPS Proprietary serial interface SPI/QSPI/MICROWIRE™/DSP compatible Daisy-chain multiple ADCs and busy indicator 10-lead MSOP, 10-lead, 3 mm × 3 mm LFCSP Wide operating temperature range: 40C to +125CAD7980-EP supports defense and aerospace applications (AQEC) Download AD7980-EP data sheet (pdf) Controlled manufacturing baseline  One assembly/test site  One fabrication site  Enhanced product change notification  Qualification data available on request Military temperature range: −55°C to +125°C V62/12640 DSCC Drawing Number

18-Bit, 1.33 MSPS PulSAR 10.5 mW ADC in MSOP/QFN Features: High performance Throughput: 1.33 MSPS True differential analog input range: ±VREF 0 V to VREF with VREF between 2.9 V to 5 V Easy to drive with the ADA4941 Throughput: 1.33 MSPS Zero latency architecture 18-bit resolution with no missing codes INL: ±2.25 LSB maximum Dynamic range: 99.7 dB, VREF = 5 V SNR: 98.5 dB at fIN = 1 kHz, VREF = 5 V THD: −110.5 dB at fIN = 1 kHz, VREF = 5 V SINAD: 97.5 dB at fIN = 1 kHz, VREF = 5 V Low power dissipation Single-supply 2.5 V operation with 1.8 V/2.5 V/3 V/5 V logic interface 5.3 mW at 1.33 MSPS (VDD only) 10.5 mW at 1.33 MSPS (total) 80 μW at 10 kSPS Proprietary serial interface SPI/QSPI/MICROWIRE™/DSP compatible Ability to daisy-chain multiple ADCs and busy indicator 10-lead MSOP and 10-lead, 3 mm × 3 mm LFCSP Wide operating temperature range: −40°C to +85°C

LC2MOS Complete, High Speed 12-Bit ADC Features:12-Bit Resolution and AccuracyFast Conversion Time- AD7572XX06: 5 µs- AD7572XX12: 12.5 µsComplete with On-Chip ReferenceFast Bus Access Time: 90 nsLow Power: 135 mWSmall, 0.3', 24-Pin Package and28-Terminal Surface Mount Packages

CMOS Dual 8-Bit Buffered Multiplying DAC Features: On-Chip Latches for Both DACs +5 V to +15 V Operation DACs Matched to 1% Four Quadrant Multiplication TTL/CMOS Compatible Latch Free (Protection Schottkys not Required)

Dual Channel, 16-Bit, 16 MUPS, Multispan, Multi-IO SPI DAC Features: 16-bit resolution 16 MUPS single channel rate in fast mode 11 MUPS single channel rate in precision mode 78 ns small signal settling time to 0.1% accuracy 100 ns large signal settling time to 0.1% accuracy Ultrasmall glitch: <50 pV×s Ultralow latency: 5 ns THD: −105 dB at 1 kHz Highly configurable output voltage span and offset 1.2 V and 1.8 V logic level compatible Single (classic) and dual SPI modes Multiple error detectors, both analog and digital domains 2.5 V internal voltage reference, 10 ppm/°C maximum temperature coefficient Small package: 4 mm × 4 mm LFCSP

Dual Channel, 16-Bit, 33 MUPS, Multispan, Multi-IO SPI DAC Features: 16-bit resolution 33 MUPS single channel rate in fast mode 22 MUPS single channel rate in precision mode 65 ns small signal settling time to 0.1% accuracy 100ns large signal settling time to 0.1% accuracy Ultra small glitch: < 50 pV×s Ultra low latency: 5 ns THD: −105 dB at 1 kHz Highly configurable output voltage span and offset 1.2 V and 1.8 V logic level compatible Single (classic), dual, and quad SPI modes Multiple error detectors, both analog and digital domains 2.5 V internal voltage reference, 10 ppm/°C maximum temperature coefficient 5 mm × 5 mm LFCSP

Single Supply, Multichannel, 31.25 kSPS, 24-Bit, Sigma-Delta ADC with 10 V Inputs Features:24-bit ADC with integrated AFEFast and flexible output rate: 1.25 SPS to 31.25 kSPS Channel scan data rate of 6.21 kSPS per channel (161 s settling)17.3 noise free bits at 1007 SPS per channel120 dB common mode rejection of 50 Hz and 60 Hz at 20 SPS per channel10 V inputs, either 8 differential or 16 single-endedVIN pin absolute maximum rating: 65 VAbsolute input pin voltage up to 20 VMinimum 1 M impedance0.07% TUE at 25COn-chip 2.5 V reference0.12% initial accuracy at 25C, 5 ppm/C (typical) driftInternal or external clockPower suppliesAVDD = 3.0 V to 5.5 VIOVDD = 2 V to 5.5 VTotal current consumption AVDD + IOVDD (IDD) = 3.9 mATemperature range: 40C to +105C3-wire or 4-wire serial digital interface (Schmitt trigger on SCLK)SPI, QSPI, MICROWIRE, and DSP compatible

8-Channel, 16-Bit, Serial Input, Voltage-Output DAC Features: 8-channel DAC in 52-lead LQFP and 56-lead LFCSP packages Guaranteed monotonic to 16/14 bits Nominal output voltage range of −10 V to +10 V Multiple output voltage spans available Thermal shutdown function Channel monitoring multiplexer GPIO function System calibration function allowing user-programmable offset and gain Channel grouping and addressing features Data error checking feature See datasheet for additional features

Single-Channel, 16-Bit Current and Voltage Output DAC with Dynamic Power Control Features: 16-bit resolution and monotonicityPositive and negative DPC for thermal managementCurrent or voltage output available on a single terminalCurrent output ranges: 0 mA to 20 mA, 4 mA to 20 mA, 0 mA to 24 mA, 20 mA, 24 mA, and 1 mA to +22 mAVoltage output ranges (with 20% overrange): 0 V to 5 V, 0 V to 10 V, 5 V, and 10 VUser programmable offset and gain Advanced on-chip diagnostics, including a 12-bit ADC2 external ADC input pinsOn-chip referenceRobust architecture, including output fault protection40C to +115C temperature range40-lead, 6 mm 6 mm LFCSP package

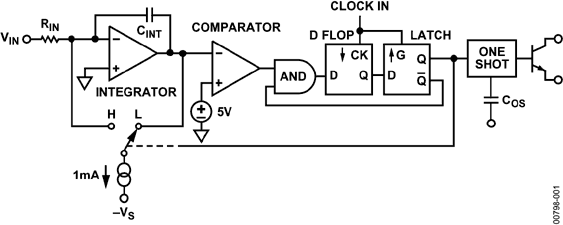

Monolithic Synchronous Voltage-to-Frequency Converter Features: Full-Scale Frequency (up to 2 MHz) set by external system clock Extremely low linearity error (0.005% max at 1 MHz FS, 0.02% max at 2 MHz FS) No critical external components required Accurate 5V reference voltage Low drift (25 ppm/°C max) Dual- or single-supply operation Voltage or current input MIL-STD-883 compliant versions available
