The MAX20037/MAX20038 ICs combine a 3.5A automotive-grade step-down converter, USB host chargeradapter emulator, and USB protection switches for automotiveUSB host applications. The device family alsoincludes a USB load current-sense amplifier and configurablefeedback-adjustment circuit, designed to provideautomatic USB voltage compensation for voltage dropsin captive cables often found in automotive applications.The ICs limit the USB load current using both a fixedinternal peak-current threshold of the DC-DC converterand a user-configurable external USB load current-senseamplifier threshold.The ICs allow flexible configuration options for bothstand-alone and supervised applications, and can be programmedfor desired operation using both external programmingresistors and/or internal I2C registers throughthe I2C bus.The ICs are optimized for high-frequency operation andinclude programmable frequency selection from 310kHzto 2.2MHz, allowing optimization of efficiency, noise, andboard space based on application requirements. Thefully synchronous DC-DC converters feature integratedhigh-side and low-side MOSFETs, an external SYNCinput/output, and can be configured for spread-spectrumoperation.The MAX20037/MAX20038 are available in a small (5mmx 5mm) 28-pin TQFN package (side-wettable available)designed to minimize required components and layout area.Design Solution: Add Even More USB Ports to Your Car—In Less Space ›ApplicationsAutomotive Connectivity/TelematicsAutomotive Radio and NavigationDedicated USB Charging Port (DCP)USB Port for Host and Hub Applications

The MAX20046 device provides high-ESD and short-circuit protection for the low-voltage internal USB data and USB power line in automotive radio, navigation, connectivity, and USB hub applications. The device supports USB Hi-Speed (480Mbps), USB full-speed (12Mbps), and USB low-speed (1.5Mbps) operation. The short-circuit protection features include short-to-battery on the protected HVBUS, as well as short-to-HVBUS and short-to-battery on the protected HVD+ and HVD-. Short-to-GND and overcurrent protection are also provided on the protected HVBUS output to protect the internal BUS power rail from overcurrent faults. The device features high-ESD protection to ±15kV Air Gap and ±8kV Contact on the protected HVBUS, HVD+, and HVD- outputs. The device features a 500mΩ (max) USB power switch, and two low on-resistance (RON), USB 2.0 data switches. This device also features an enable input, fault output, 10ms fault-recovery time, 1ms overcurrent-blanking time, and integrated overcurrent autoretry. The MAX20046 is available in a 12-pin lead-free, TQFN-EP package and operate over the -40°C to +105°C temperature range.ApplicationsAutomotive USB Protection

The MAX20046 device provides high-ESD and short-circuit protection for the low-voltage internal USB data and USB power line in automotive radio, navigation, connectivity, and USB hub applications. The device supports USB Hi-Speed (480Mbps), USB full-speed (12Mbps), and USB low-speed (1.5Mbps) operation. The short-circuit protection features include short-to-battery on the protected HVBUS, as well as short-to-HVBUS and short-to-battery on the protected HVD+ and HVD-. Short-to-GND and overcurrent protection are also provided on the protected HVBUS output to protect the internal BUS power rail from overcurrent faults. The device features high-ESD protection to ±15kV Air Gap and ±8kV Contact on the protected HVBUS, HVD+, and HVD- outputs. The device features a 500mΩ (max) USB power switch, and two low on-resistance (RON), USB 2.0 data switches. This device also features an enable input, fault output, 10ms fault-recovery time, 1ms overcurrent-blanking time, and integrated overcurrent autoretry. The MAX20046 is available in a 12-pin lead-free, TQFN-EP package and operate over the -40°C to +105°C temperature range.ApplicationsAutomotive USB Protection

The MAX20046 device provides high-ESD and short-circuit protection for the low-voltage internal USB data and USB power line in automotive radio, navigation, connectivity, and USB hub applications. The device supports USB Hi-Speed (480Mbps), USB full-speed (12Mbps), and USB low-speed (1.5Mbps) operation. The short-circuit protection features include short-to-battery on the protected HVBUS, as well as short-to-HVBUS and short-to-battery on the protected HVD+ and HVD-. Short-to-GND and overcurrent protection are also provided on the protected HVBUS output to protect the internal BUS power rail from overcurrent faults. The device features high-ESD protection to ±15kV Air Gap and ±8kV Contact on the protected HVBUS, HVD+, and HVD- outputs. The device features a 500mΩ (max) USB power switch, and two low on-resistance (RON), USB 2.0 data switches. This device also features an enable input, fault output, 10ms fault-recovery time, 1ms overcurrent-blanking time, and integrated overcurrent autoretry. The MAX20046 is available in a 12-pin lead-free, TQFN-EP package and operate over the -40°C to +105°C temperature range.ApplicationsAutomotive USB Protection

The MAX20067/MAX20067B are complete TFT bias solution for automotive applications. It includes a current-mode boost converter and two push-pull charge-pump drivers.The IC also includes a gate-shading push-pull level shifter that can be used to improve display uniformity (when needed), and a DAC and VCOM buffer. All blocks on the IC can be used in stand-alone mode or through the I2C interface. Comprehensive control functions are included using the built-in I2C interface, as well as diagnostics and monitoring. The IC is intended to operate with 2.7V to 5.5V supplies. The MAX20067/MAX20067B are available in a 32-pin TQFN package and operates in the -40°C to +105°C temperature range.ApplicationsCentral Information DisplaysInfotainment DisplaysInstrument Clusters

The MAX30112 is a complete optical pulse oximetry and heart rate detection integrated analog front-end. The MAX30112 has a high-resolution, optical readout signal-processing channel with built-in ambient light cancellation, as well as high-current LED driver DACs, to form a complete optical readout signal chain. With external LED(s) and photo diode(s), the MAX30112 offers the lowest power, highest performance heart rate detection solution for wrist applications.The MAX30112 operates on a 1.8V main supply voltage, with a separate 3.1V to 5.25V LED driver power supply. The device supports a standard I2C compatible interface, as well as shutdown modes through the software with near-zero standby current, allowing the power rails to remain powered at all times.ApplicationsFitness Wearable DevicesIn-Ear Wearable DevicesSpO2 Monitoring DevicesWrist-Worn Wearable Devices

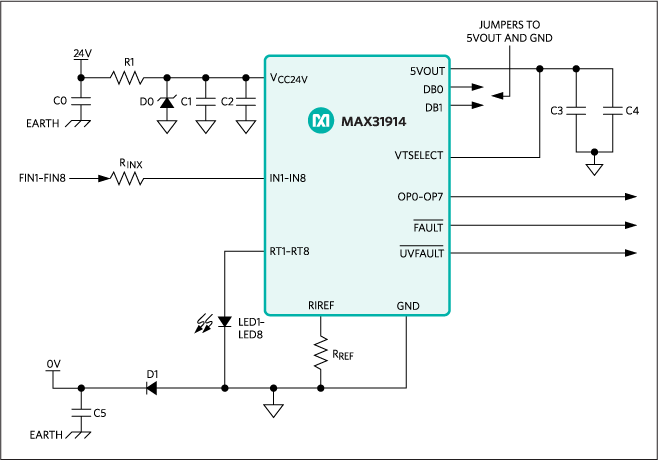

For new designs, please refer to MAX22195 ›The MAX31914 translates and conditions the 24V digitaloutput of sensors and switches used in industrial,process, and building automation to 5V CMOS-compatiblesignals required by microcontrollers. It provides the frontendinterface circuit of a programmable logic controller(PLC) digital input module.The signal voltage translation is performed in conjunctionwith input current limiting and lowpass filtering. Inputcurrent limiting allows a significant reduction in powerconsumed from the field-supply voltage, as comparedto traditional discrete resistor-divider implementations.To achieve the lowest in-class power dissipation, the ICuses patent-pending circuit techniques to achieve furtherreduction of power dissipation beyond what is possibleby input current limiting alone. This special low-poweroperating mode is automatically activated when on-chiplowpass filtering is selected.Selectable on-chip lowpass filters allow flexible debouncingand filtering of sensor inputs based on the application.When no filtering is selected, the IC is capable of detectingpulses as short as 0.75μs at its field inputs.All 8 input channels are translated to CMOS logic levels andpresented in parallel on the eight output pins for direct orgalvanically isolated interface with a controller ASIC ormicro.The on-chip 5V voltage regulator can be used to powerexternal optocouplers, digital isolators, or other external5V circuitry.For low-cost applications, Maxim Integrated offers a pincompatible version of this device, the MAX31915, whichdoes not include the current-switching circuitry includedin the MAX31914.ApplicationsDigital Input Modules for Programmable Logic Controllers (PLCs)Industrial Automation, Building AutomationProcess Automation

DARWIN is a new breed of low-power microcontrollers built to thrive in the rapidly evolving Internet of Things (IoT). They are smart, with the biggest memories in their class and a massively scalable memory architecture. They run forever, thanks to wearable-grade power technology. They are also tough enough to withstand the most advanced cyberattacks. DARWIN microcontrollers are designed to run any application imaginable—in places where you would not dream of sending other micro controllers.Generation U microcontrollers are perfect for wearables and IoT applications that cannot afford to compromise power or performance. The MAX32620/MAX32621 feature an Arm® Cortex®-M4 with FPU CPU that delivers high-efficiency signal processing, ultra-low power consumption and ease of use.Flexible power modes, an intelligent PMU, and dynamic clock and power gating optimize performance and power consumption for each application. Internal oscillators run at 96MHz for high-performance or 4MHz to maximize battery life in applications requiring always-on monitoring.Multiple SPI, UART, I2C, 1-Wire® master, and USB interfaces are provided. The four-input, 10-bit ADC with selectable references can monitor external sensors.All versions provide a hardware AES engine. The MAX32621 is provides a secure trust protection unit (TPU) with a modular arithmetic accelerator (MAA) for fast ECDSA, a hardware PRNG entropy generator, and a secure boot loader. The MAX32620L provides a reduced 1MB of flash memory.This data sheet applies to revision C and later. Legacy mode operation provides compatibility with revision A.MAX32620 User's GuideMaxim Low Power ARM Micro Toolchain (Mac)Maxim Low Power ARM Micro Toolchain (Windows)ApplicationsFitness MonitorsPortable Medical DevicesSensor HubSport WatchesWearable Medical Patches

The MAX34417 is a specialized current and voltage monitor used to determine power consumption of portable systems. The device has a very wide dynamic range (20,000:1) that allows for the accurate measurement of power in such systems. The device is configured and monitored with a standard I2C/SMBus serial interface. The unidirectional current sensor offers precision high-side operation with a low full-scale sense voltage. The device automatically collects the current-sense and voltage samples and then multiplies those values to obtain a power value it then accumulates. Upon a command from the host, the device transfers the accumulated power samples, as well as the accumulation count, to a set of registers accessible by the host. This transfer occurs without missing a sample and allows the host to retrieve the data not in real-time, but at any time interval. Watch video: Introducing the MAX34417 Evaluation KitApplicationsServersSmartphonesTabletsUltra Notebooks

The MAX34417 is a specialized current and voltage monitor used to determine power consumption of portable systems. The device has a very wide dynamic range (20,000:1) that allows for the accurate measurement of power in such systems. The device is configured and monitored with a standard I2C/SMBus serial interface. The unidirectional current sensor offers precision high-side operation with a low full-scale sense voltage. The device automatically collects the current-sense and voltage samples and then multiplies those values to obtain a power value it then accumulates. Upon a command from the host, the device transfers the accumulated power samples, as well as the accumulation count, to a set of registers accessible by the host. This transfer occurs without missing a sample and allows the host to retrieve the data not in real-time, but at any time interval. Watch video: Introducing the MAX34417 Evaluation KitApplicationsServersSmartphonesTabletsUltra Notebooks
