The MAX9996 high-linearity downconversion mixer provides8.3dB gain, +26.5dBm IIP3, and 9.7dB NF for1700MHz to 2200MHz UMTS/W-CDMA, DCS, and PCSbase-station receiver applications. With a 1900MHz to2400MHz LO frequency range, this particular mixer isideal for high-side LO injection receiver architectures.Low-side LO injection is supported by the MAX9994,which is pin-for-pin and functionally compatible with theMAX9996.In addition to offering excellent linearity and noise performance,the MAX9996 also yields a high level of componentintegration. This device includes a double-balancedpassive mixer core, an IF amplifier, a dual-inputLO selectable switch, and an LO buffer. On-chipbaluns are also integrated to allow for single-ended RFand LO inputs. The MAX9996 requires a nominal LOdrive of 0dBm, and supply current is guaranteed to bebelow 240mA.The MAX9994/MAX9996 are pin compatible with theMAX9984/MAX9986 815MHz to 995MHz mixers, makingthis entire family of downconverters ideal for applicationswhere a common PC board layout is used forboth frequency bands. The MAX9996 is also functionallycompatible with the MAX9993.The MAX9996 is available in a compact, 20-pin, TQFN package (5mm x 5mm) with an exposed paddle.Electrical performance is guaranteed over the extended-40°C to +85°C temperature range.ApplicationscdmaOne™ and cdma2000® Base StationsDCS1800/PCS1900 EDGE Base StationsDigital and Spread-Spectrum Communication SystemsFixed Broadband Wireless AccessMicrowave LinksMilitary SystemsPHS/PAS Base Stations Predistortion ReceiversPrivate Mobile Radios (PMRs)UMTS/WCDMA Base StationsWireless Local Loop (WLL)

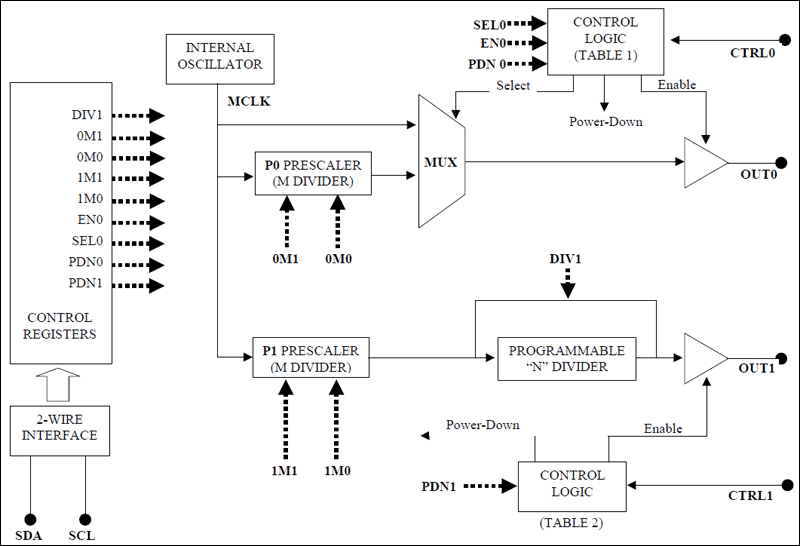

The DS1077L is a dual-output, programmable, fixed-frequency oscillator requiring no externalcomponents for operation. The DS1077L can be used as a processor-controlled frequency synthesizer oras a stand-alone oscillator. The two synchronous output operating frequencies are user-adjustable insubmultiples of the master frequency through the use of two on-chip programmable prescalers anddividers. The specific output frequencies chosen are stored in nonvolatile (EEPROM) memory. TheDS1077L defaults to these values upon power-up.The DS1077L features a 2-wire serial interface that allows in-circuit on-the-fly programming of theprogrammable prescalers (P0 & P1) and divider (N) with the desired values being stored in nonvolatile(EEPROM) memory. Design changes can be accommodated in-circuit, on-the-fly by simply programmingdifferent values into the device (or reprogramming previously programmed devices). Alternatively, forfixed-frequency applications previously programmed devices can be used and no connection to the serialinterface is required. Preprogrammed devices can be ordered in customer-requested frequencies.The DS1077L is available in SO or µSOP packages, allowing the generation of a clock signal easily,economically, and using minimal board area. Chip-scale packaging is also available on request.ApplicationsCable ModemsCell PhonesComputer PeripheralsCopiersPCsPrinters

The DS1077 is a dual-output, programmable, fixed-frequency oscillator requiring no external components for operation. The DS1077 can be used as a processor-controlled frequency synthesizer or as a standalone oscillator. The two synchronous output operating frequencies are user-adjustable in submultiples of the master frequency through the use of two on-chip programmable prescalers and a divider. The specific output frequencies chosen are stored in NV (EEPROM) memory. The DS1077 defaults to these values upon power-up.The DS1077 features a 2-wire serial interface that allows in-circuit on-the-fly programming of the programmable prescalers (P0 & P1) and divider (N) with the desired values being stored in NV (EEPROM) memory. Design changes can be accommodated in-circuit on-the-fly by simply programming different values into the device (or reprogramming previously programmed devices). Alternatively, for fixed frequency applications, previously programmed devices can be used and no connection to the serial interface is required. Pre-programmed devices can be ordered in customer-requested frequencies.The DS1077 is available in 8-pin SO or µSOP packages, allowing the generation of a clock signal easily, economically, and using minimal board area. Chip-scale packaging is also available on request.ApplicationsCable ModemsCell PhonesComputer PeripheralsCopiersPCsPrinters

The DS1086L EconOscillator™ is a 3.3V programmable clock generator that produces a spread-spectrum (dithered) square-wave output of frequencies from 130kHz to 66.6MHz. The selectable dithered output reduces radiated-emission peaks by dithering the frequency 0.5%, 1%, 2%, 4%, or 8% below the programmed frequency. The DS1086L has a power-down mode and an output-enable control for power-sensitive applications. All the device settings are stored in nonvolatile (NV) EEPROM memory allowing it to operate in stand-alone applications.ApplicationsCable ModemsCell PhonesComputer PeripheralsCopiersPCsPrinters

The DS3906 is intended for low resistance, small step-size applications. It contains three nonvolatile (NV), low-temperature coefficient, variable digital resistors that are capable of ohm and subohm increments when used in parallel with a fixed external resistor. All three of the DS3906's resistors have 64 positions (plus a high-Z state) with a pseudo-log response cleverly chosen to have a linear equivalent resistance when paired with an external resistor (see graphs below). The DS3906 also contains 16 bytes of user EEPROM that, in addition to the resistors, are controlled through an I²C-compatible serial interface. Three address pins allow up to eight DS3906s to be placed on the same I²C bus.The DS3906 can also be factory cutomized to provide a variety of transfer functions depending on user requirements. Contact var name = 'mixedsignal.apps@'; var domain = 'maximintegrated.com'; document.write ('' + name + domain + ''); for additional information.ApplicationsLow Ohm, Fine Resolution Driver Control for LED Display PanelsLow Ohm, Fine Resolution Instrumentation Control

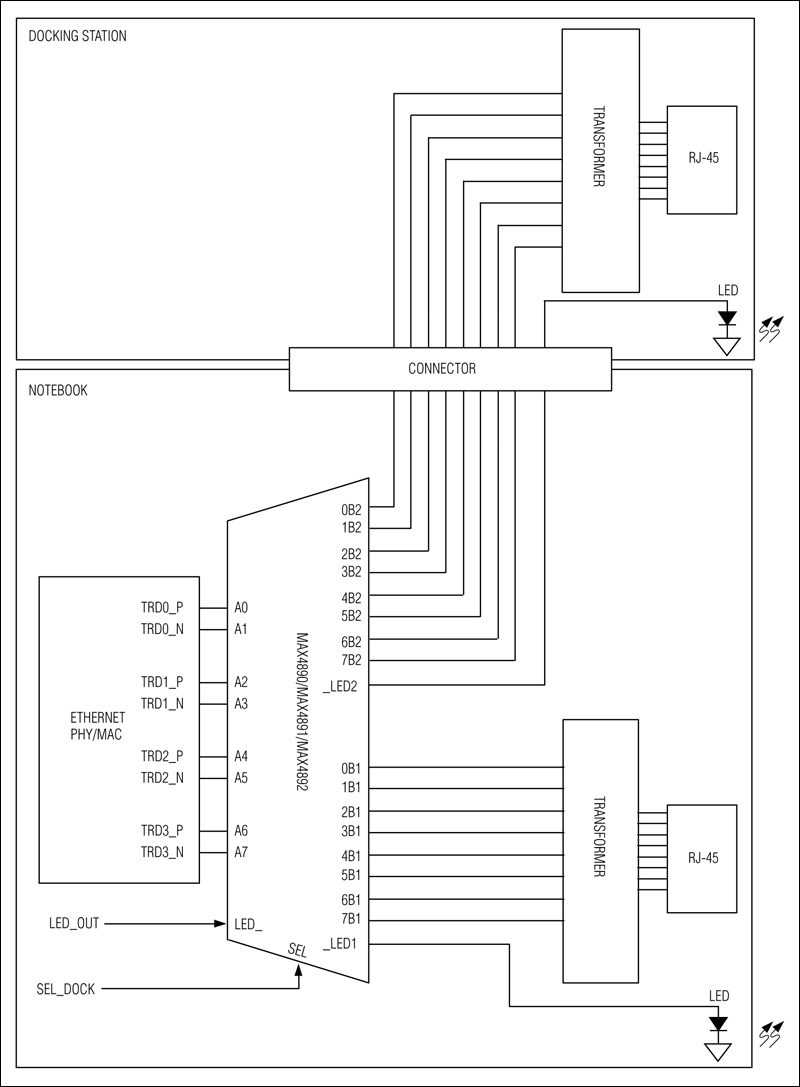

The MAX4890/MAX4891/MAX4892 high-speed analog switches meet the needs of 10/100/1000 Base-T applications. These devices switch the signals from two interface transformers and connect the signals to a single 10/100/1000 Base-T Ethernet PHY, simplifying docking station design and reducing manufacturing costs. The MAX4890/MAX4891/MAX4892 can also route signals from a common interface transformer to two different boards in board-redundancy applications.The MAX4890/MAX4891/MAX4892 switches provide an extremely low capacitance and on-resistance to meet Ethernet insertion and return-loss specifications. The MAX4891/MAX4892 feature one and three built-in LED switches, respectively.The MAX4890/MAX4891/MAX4892 are available in space-saving 32- and 36-lead TQFN packages, significantly reducing the required PC board area. These devices operate over the -40°C to +85°C temperature range.ApplicationsBoard-Level Redundancy ProtectionNotebooks and Docking StationsServers and Routers with Ethernet InterfacesSONET/SDH Signal RoutingT3/E3 Redundancy ProtectionVideo Routing and Switching Systems

The MAX5422/MAX5423/MAX5424 nonvolatile, lineartaper,digital potentiometers perform the function of amechanical potentiometer, but replace the mechanicswith a simple 3-wire SPI™-compatible digital interface.Each device performs the same function as a discretepotentiometer or variable resistor and has 256 tap points.The devices feature an internal, nonvolatile EEPROMused to store the wiper position for initialization duringpower-up. The 3-wire SPI-compatible serial interfaceallows communication at data rates up to 5MHz, minimizingboard space and reducing interconnection complexityin many applications.The MAX5422/MAX5423/MAX5424 provide three nominalresistance values: 50kΩ (MAX5422), 100kΩ(MAX5423), or 200kΩ (MAX5424). The nominal resistortemperature coefficient is 35ppm/°C end-to-end andonly 5ppm/°C ratiometric. This makes the devices idealfor applications requiring a low-temperature-coefficientvariable resistor, such as low-drift, programmable gainamplifiercircuit configurations.The MAX5422/MAX5423/MAX5424 are available in a3mm x 3mm 8-pin TDFN package, and are specifiedover the extended -40°C to +85°C temperature range.ApplicationsAudio Volume ControlLiquid-Crystal Display (LCD) Contrast ControlLow-Drift Programmable FiltersLow-Drift Programmable-Gain AmplifiersMechanical Potentiometer Replacements

The MAX5481–MAX5484 10-bit (1024-tap) nonvolatile, linear-taper, programmable voltage-dividers and variable resistors perform the function of a mechanical potentiometer, but replace the mechanics with a pin-configurable 3-wire serial SPI™-compatible interface or up/down digital interface. The MAX5481/MAX5482 are 3-terminal voltage-dividers and the MAX5483/MAX5484 are 2-terminal variable resistors.The MAX5481–MAX5484 feature an internal, nonvolatile, electrically erasable programmable read-only memory (EEPROM) that stores the wiper position for initialization during power-up. The 3-wire SPI-compatible serial interface allows communication at data rates up to 7MHz. A pin-selectable up/down digital interface is also available.The MAX5481–MAX5484 are ideal for applications requiring digitally controlled potentiometers. Two end-to-end resistance values are available (10kΩ and 50kΩ) in a voltage-divider or a variable-resistor configuration (see the Selector Guide in the full data sheet). The nominal resistor temperature coefficient is 35ppm/°C end-to-end, and only 5ppm/°C ratiometric, making these devices ideal for applications requiring low-temperature-coefficient voltage-dividers, such as low-drift, programmable gain-amplifiers.The MAX5481–MAX5484 operate with either a +2.7V to +5.25V single power supply or ±2.5V dual power supplies. These devices consume 400µA (max) of supply current when writing data to the nonvolatile memory and 1.0µA (max) of standby supply current. The MAX5481–MAX5484 are available in a space-saving (3mm x 3mm), 16-pin TQFN, or a 14-pin TSSOP package and are specified over the extended (-40°C to +85°C) temperature range.ApplicationsGain and Offset AdjustmentLCD Contrast AdjustmentLow-Drift Programmable Gain AmplifiersMechanical Potentiometer ReplacementPressure Sensors

The MAX5481–MAX5484 10-bit (1024-tap) nonvolatile, linear-taper, programmable voltage-dividers and variable resistors perform the function of a mechanical potentiometer, but replace the mechanics with a pin-configurable 3-wire serial SPI™-compatible interface or up/down digital interface. The MAX5481/MAX5482 are 3-terminal voltage-dividers and the MAX5483/MAX5484 are 2-terminal variable resistors.The MAX5481–MAX5484 feature an internal, nonvolatile, electrically erasable programmable read-only memory (EEPROM) that stores the wiper position for initialization during power-up. The 3-wire SPI-compatible serial interface allows communication at data rates up to 7MHz. A pin-selectable up/down digital interface is also available.The MAX5481–MAX5484 are ideal for applications requiring digitally controlled potentiometers. Two end-to-end resistance values are available (10kΩ and 50kΩ) in a voltage-divider or a variable-resistor configuration (see the Selector Guide in the full data sheet). The nominal resistor temperature coefficient is 35ppm/°C end-to-end, and only 5ppm/°C ratiometric, making these devices ideal for applications requiring low-temperature-coefficient voltage-dividers, such as low-drift, programmable gain-amplifiers.The MAX5481–MAX5484 operate with either a +2.7V to +5.25V single power supply or ±2.5V dual power supplies. These devices consume 400µA (max) of supply current when writing data to the nonvolatile memory and 1.0µA (max) of standby supply current. The MAX5481–MAX5484 are available in a space-saving (3mm x 3mm), 16-pin TQFN, or a 14-pin TSSOP package and are specified over the extended (-40°C to +85°C) temperature range.ApplicationsGain and Offset AdjustmentLCD Contrast AdjustmentLow-Drift Programmable Gain AmplifiersMechanical Potentiometer ReplacementPressure Sensors

The MAX5481–MAX5484 10-bit (1024-tap) nonvolatile, linear-taper, programmable voltage-dividers and variable resistors perform the function of a mechanical potentiometer, but replace the mechanics with a pin-configurable 3-wire serial SPI™-compatible interface or up/down digital interface. The MAX5481/MAX5482 are 3-terminal voltage-dividers and the MAX5483/MAX5484 are 2-terminal variable resistors.The MAX5481–MAX5484 feature an internal, nonvolatile, electrically erasable programmable read-only memory (EEPROM) that stores the wiper position for initialization during power-up. The 3-wire SPI-compatible serial interface allows communication at data rates up to 7MHz. A pin-selectable up/down digital interface is also available.The MAX5481–MAX5484 are ideal for applications requiring digitally controlled potentiometers. Two end-to-end resistance values are available (10kΩ and 50kΩ) in a voltage-divider or a variable-resistor configuration (see the Selector Guide in the full data sheet). The nominal resistor temperature coefficient is 35ppm/°C end-to-end, and only 5ppm/°C ratiometric, making these devices ideal for applications requiring low-temperature-coefficient voltage-dividers, such as low-drift, programmable gain-amplifiers.The MAX5481–MAX5484 operate with either a +2.7V to +5.25V single power supply or ±2.5V dual power supplies. These devices consume 400µA (max) of supply current when writing data to the nonvolatile memory and 1.0µA (max) of standby supply current. The MAX5481–MAX5484 are available in a space-saving (3mm x 3mm), 16-pin TQFN, or a 14-pin TSSOP package and are specified over the extended (-40°C to +85°C) temperature range.ApplicationsGain and Offset AdjustmentLCD Contrast AdjustmentLow-Drift Programmable Gain AmplifiersMechanical Potentiometer ReplacementPressure Sensors
