The AD8450 is a precision analog front end for testing andmonitoring battery cells. Referring to figure one, a precisionprogrammable gain instrumentation amplifier (PGIA)measures the battery’s charge/discharge current and aprogrammable gain difference amplifier (PGDA) measures thebattery’s voltage. Internal laser trimmed resistor networks setthe gains for the PGIA and the PGDA, optimizing the AD8450’sperformance over the rated temperature range. PGIA gains are26×, 66×, 133×, and 200×. PGDA gains are 0.2×, 0.27×,0.4×,and 0.8×.Voltages at the ISET and VSET inputs set the desired constantvoltage (CV) and constant current (CC) values. CC to CVswitching is automatic and transparent to the system.A TTL level logic input, MODE, selects between charge anddischarge modes (high for charge, low for discharge). An analogoutput, VCTRL, interfaces directly with ADI’s ADP1972 &ADP1974 PWM controllers.The AD8450 includes resistor programmable overvoltage andovercurrent detection and current sharing circuitry. Currentsharing is used to balance charge among multiple batteries.The AD8450 simplifies designs by providing excellent accuracy,performance over temperature, flexibility with functionality,and overall reliability in a space-saving package. The AD8450 isavailable in an 80 lead 14 mm ×14 mm × 1 mm LQFP packageand is rated at −40 °C to +85 °C operating temperature.APPLICATIONS Battery cell testing & formation Battery module testing

Charger IC Multi-Chemistry 7-DDPAK

The AD8280 is a hardware-only safety monitor for lithium ionbattery stacks. The device has inputs to monitor six battery cellsand two temperature sensors (either NTC or PTC thermistors).The device is designed to be daisy-chained with additional AD8280devices to monitor a stack of significantly more than six cellswithout the need for numerous isolators. The output can beconfigured for an independent or shared alarm state.The AD8280 functions independently from a primarymonitor and contains a reference and LDO, both of which arepowered completely from the battery cell stack. The reference, inconjunction with external resistor dividers, establishes trip pointsfor the overvoltages and undervoltages. Each cell channel containsprogrammable deglitching circuitry to prevent alarms fromtransient input levels.The AD8280 also has two digital pins that can select variouscombinations of inputs in the case where fewer than six cells areto be monitored. Most important, it has a self-test feature, makingit suitable for high reliability applications, such as automotivehybrid electric vehicles or higher voltage industrial usage, such asuninterruptible power supplies. The AD8280 can function over atemperature range of −40°C to +105°C. Applications Lithium ion battery backup monitor and threshold detection Electric and hybrid electric vehicle Industrial vehicle Uninterruptible power supply Wind and solar

The AD7284 contains all the functions required for the general-purpose monitoring of stacked Li-Ion batteries, as used in hybrid electric vehicles and battery backup applications.The AD7284 has multiplexed cell voltage and auxiliary, analog-to-digital converter (ADC) measurement channels supporting four to eight cells of battery management. The device provides a maximum total unadjusted error, TUE, (cell voltage accuracy) of ±3 mV that includes all the internal errors from input to output. The primary ADC resolution is 14 bits.The AD7284 also includes an integrated secondary measurement path that validates the data on the primary ADC. Other diagnostic features include the detection of open inputs, communication, and power supply related faults.The AD7284 cell balancing interface outputs control the external field effect transistors (FETs) to allow discharging of individual cells.There are two on-chip 2.5 V voltage references: one reference for the primary measurement path, and one for the secondary measurement path.The AD7284 operates from one VDD supply, ranging from 10 V to 40 V. The device provides eight differential analog input channels to accommodate large common-mode signals across the full VDD range. Each channel allows an input signal range, VPINx − VPIN(x − 1) and VSINx – VSIN(x − 1), of 0 V to 5 V, where x = 0 to 8. The input pins assume a series stack of eight cells. The AD7284 includes four auxiliary ADC input channels that can be used for temperature measurement or system diagnostics.The AD7284 has a differential daisy-chain interface that allows multiple devices to be stacked without the need for individual device isolation. By design, this interface allows both device to device communication within the same module and communication between devices on different modules.Applications Li-Ion battery monitoring Electric and hybrid electric vehicles Stationary power applications

Battery Management

8 Ch Li-ion Monitor ISO26262/Auto

The AD8451 is a precision analog front end and controller for testing and monitoring battery cells. A precision fixed gain instrumentation amplifier (IA) measures the battery charge/discharge current, and a fixed gain difference amplifier (DA) measures the battery voltage. Internal laser trimmed resistor networks set the gains for the IA and the DA, optimizing the performance of the AD8451 over the rated temperature range. The IA gain is 26 and the DA gain is 0.8 V/V.Voltages at the ISET and VSET inputs set the desired constant current (CC) and constant voltage (CV) values. CC to CV switching is automatic and transparent to the system.A TTL logic level input, MODE, selects the charge or discharge mode (high for charge, low for discharge). An analog output, VCTRL, interfaces directly with the Analog Devices, Inc., ADP1972 PWM controller.The AD8451 simplifies designs by providing excellent accuracy, performance over temperature, flexibility with functionality, and overall reliability in a space-saving package. The AD8451 is available in an 80-lead, 14 mm × 14 mm × 1 mm LQFP package and is rated for an operating temperature of −40°C to +85°C.APPLICATIONS Battery cell formation and testing Battery module testing

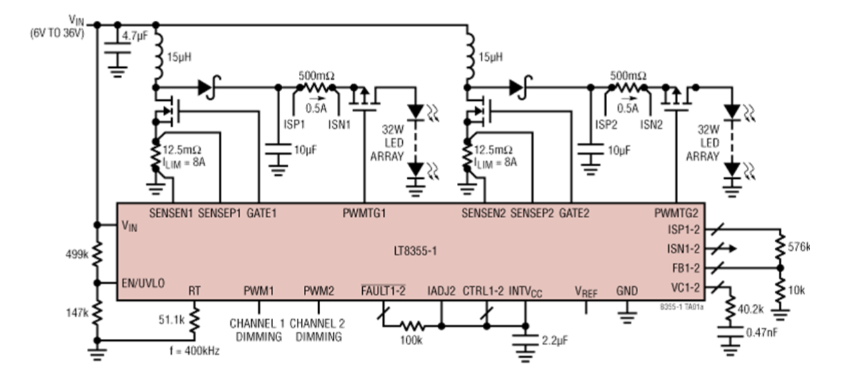

The LT8355-1 a dual-channel DC/DC controller designed to drive two strings of high current LEDs. The fixed frequency, current mode architecture results in stable operation over a wide range of supply and output voltages. Voltage feedback pins serve as the inputs for several LED protection features and makes it possible for the converters to operate as a constant-voltage sources.

The LT8355-1 senses output current at the high or low side of the load. The product of CTRL2 and IADJ2 inputs provides analog programming of the output current for channel 2. Channel 1 output current is programmed through CTRL1 input. The PWM input and PWMTG high side PMOS driver provides precision time-based LED dimming capability. When driven by an external digital signal, the PWM input provides LED dimming ratios of up to 20,000:1 at 100Hz. When driven by a constant voltage, the PWM input selects from one of 128 internally generated, precision, exponentially spaced dimming ratios ranging from 0.78% up to 100%.

Battery Management PowerCap

Battery Management Powercap w/Crystal
